Thermostats for Control Panels and Enclosures

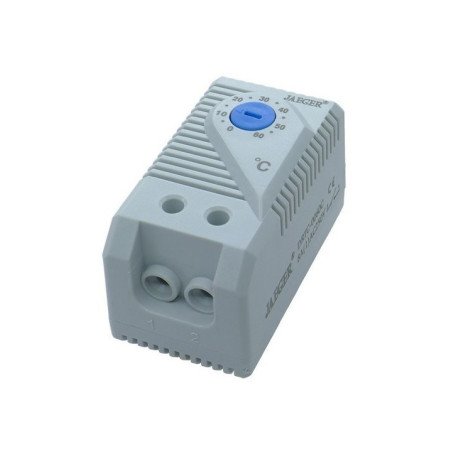

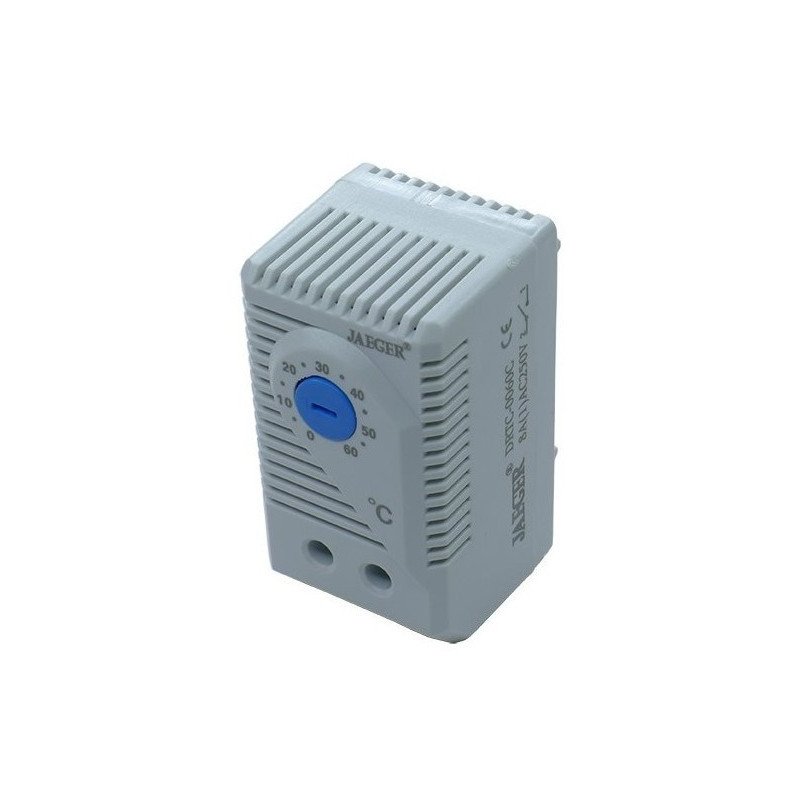

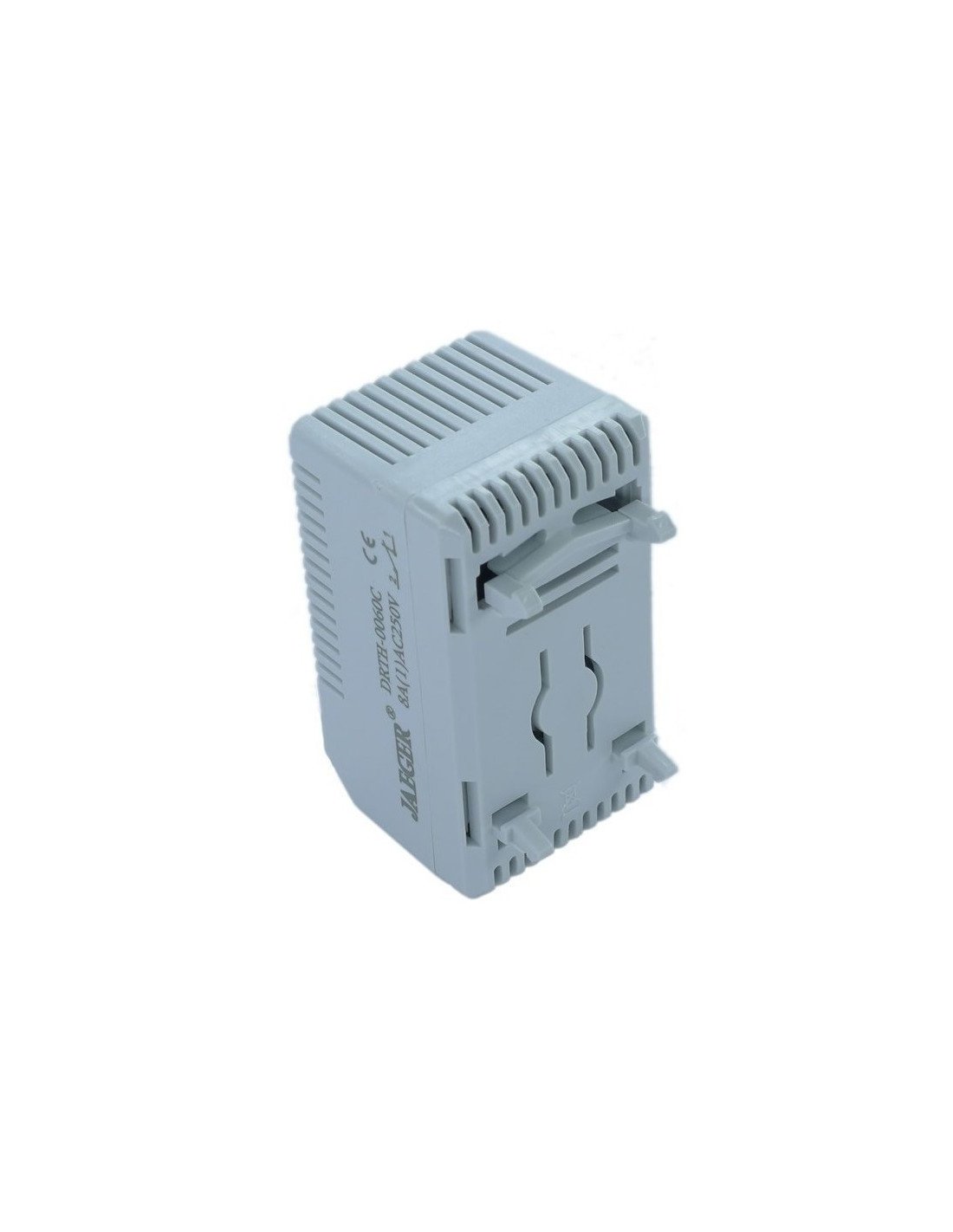

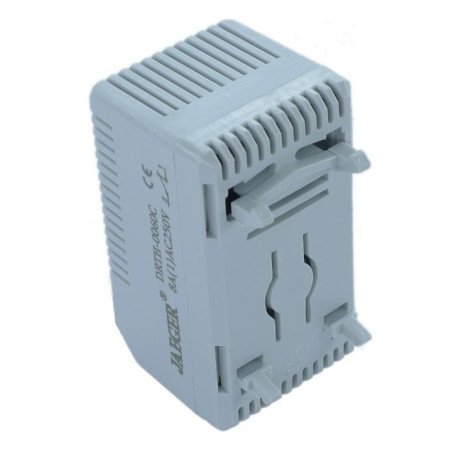

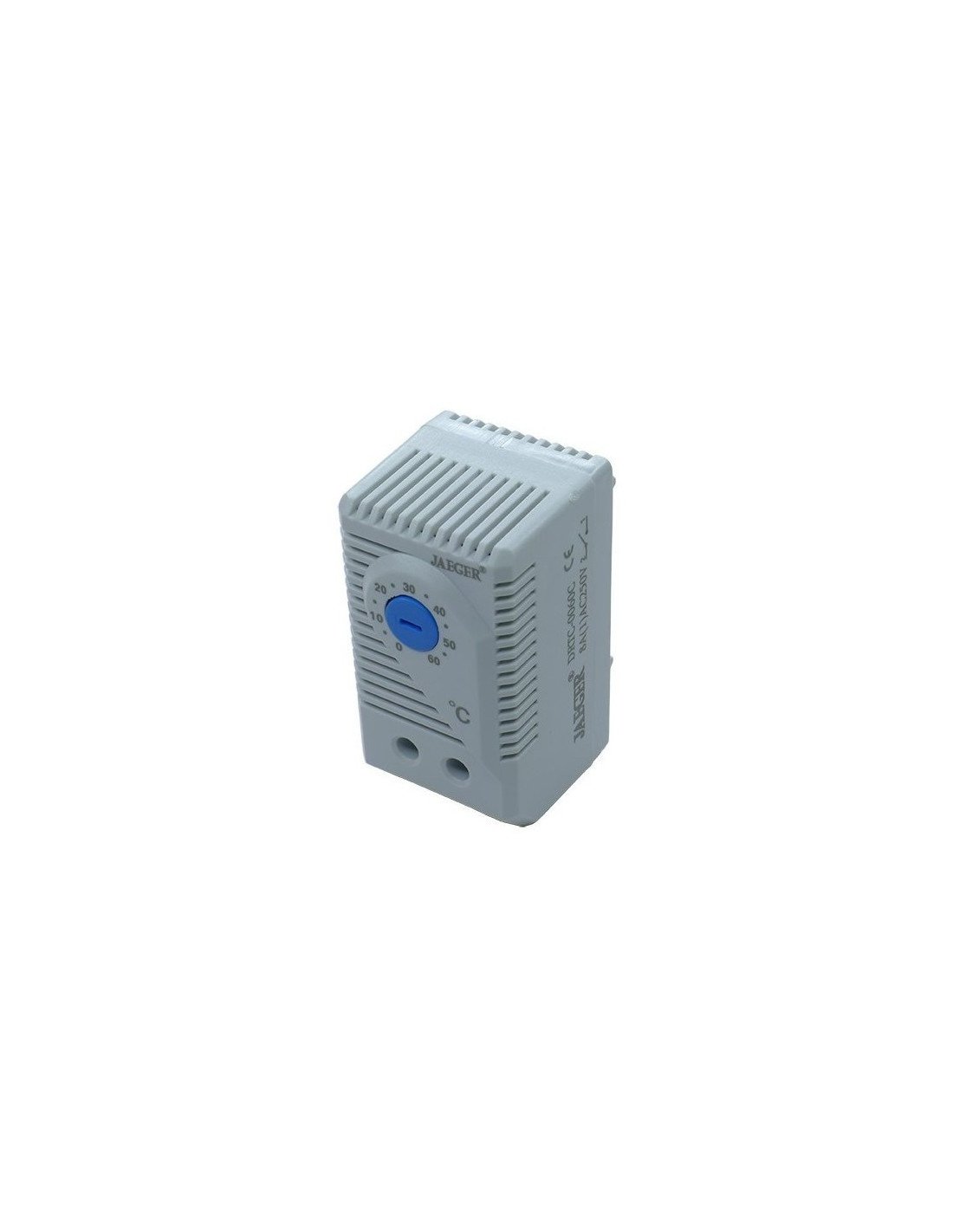

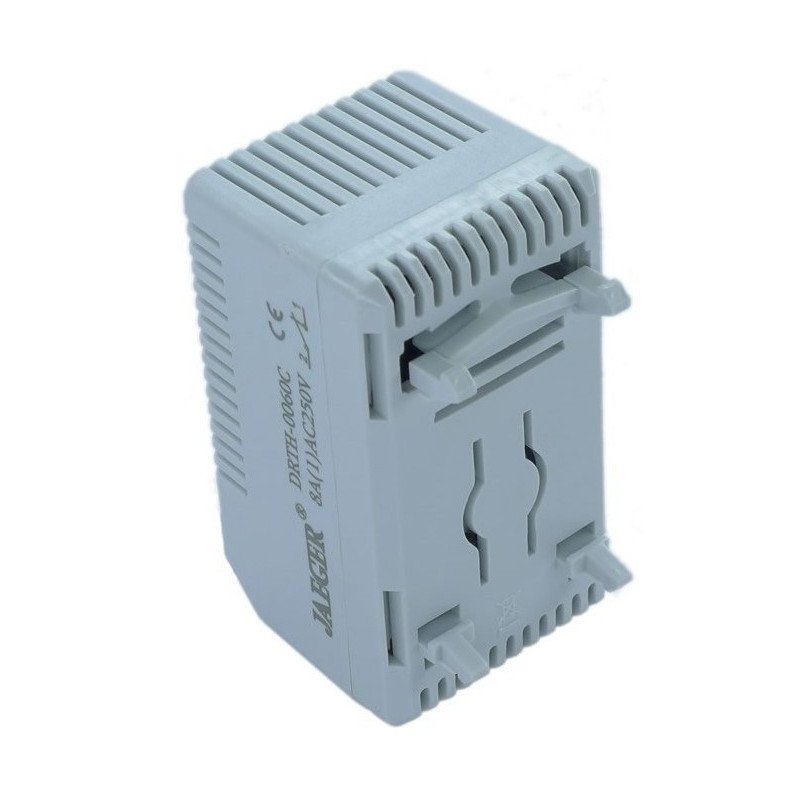

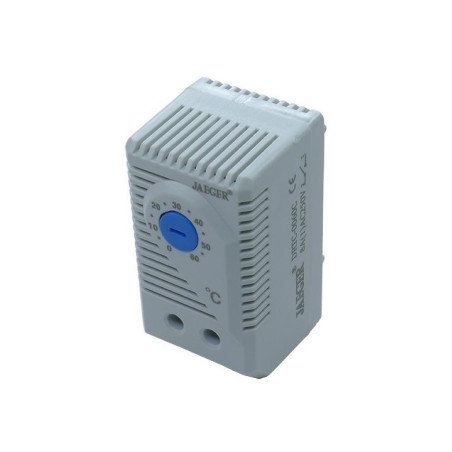

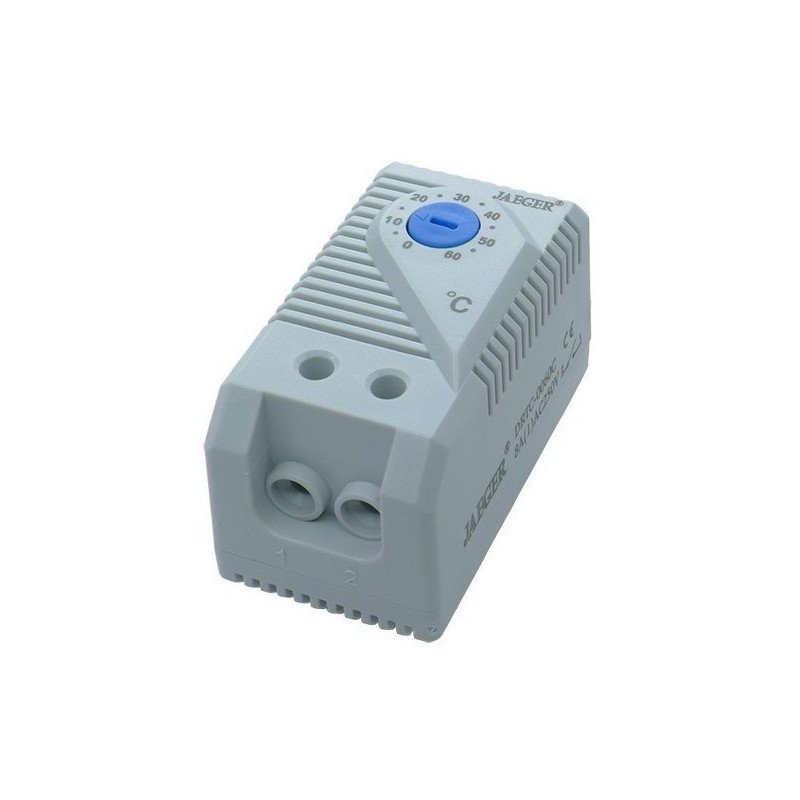

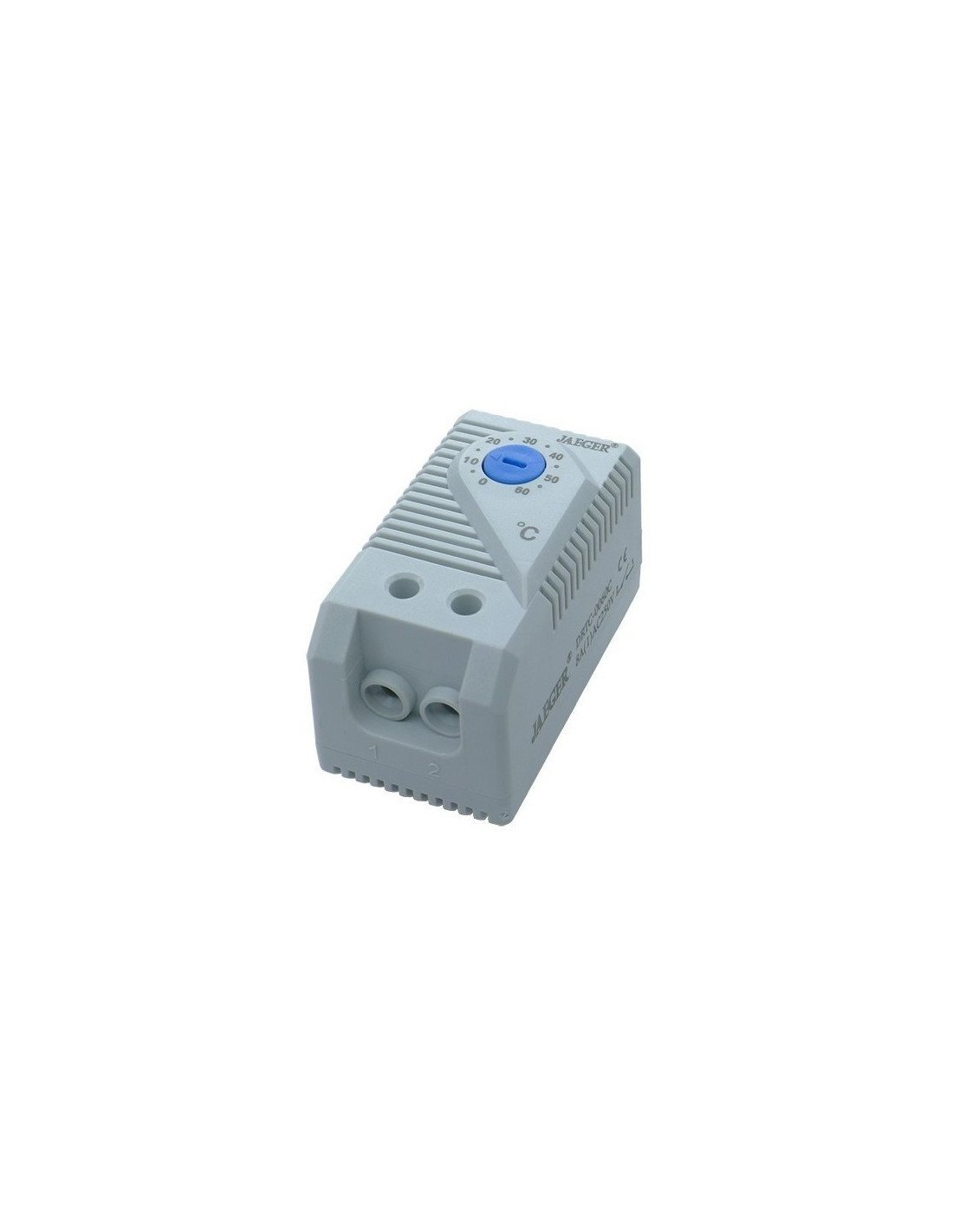

The miniature Jaeger DRT electro-mechanical thermostat is designed to regulate temperature in control panels in conjunction with anti-condensation heaters or fan blowers.
DRTH-0060C: Heating control (normally close contact)
DRTC-0060C: Cooling control (normally open contact)
Specifications
Switching hysteresis
7°C
Sensor element
Bi-metal
Contact life
>100 000 cycles
Contact rating
250VAC, 8A resistive load
Connection
2 pole screw terminals, 2.5mm2 single strand (AWG14), 1.5mm2 multi-strand (AWG16)
Mounting
Clip for 35mm DIN rail (EN60715)
Mass
Approx. 40g
Casing
UL94V-0 plastic, light grey
IP rating
IP20
Operating temperature
-45 to +80°C
Operating humidity
90% RH max. non-condensing
Dimensions
Wiring Diagram
