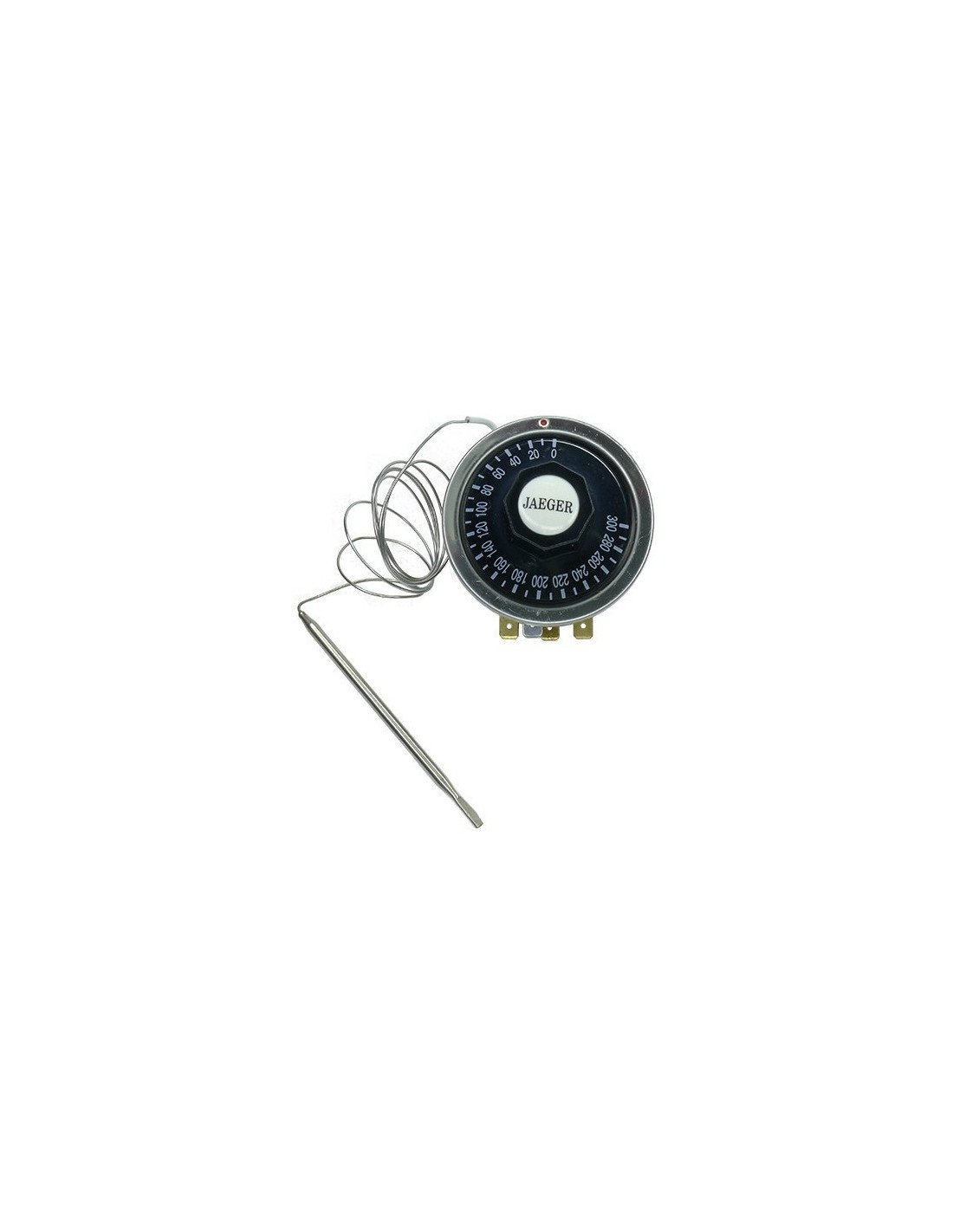

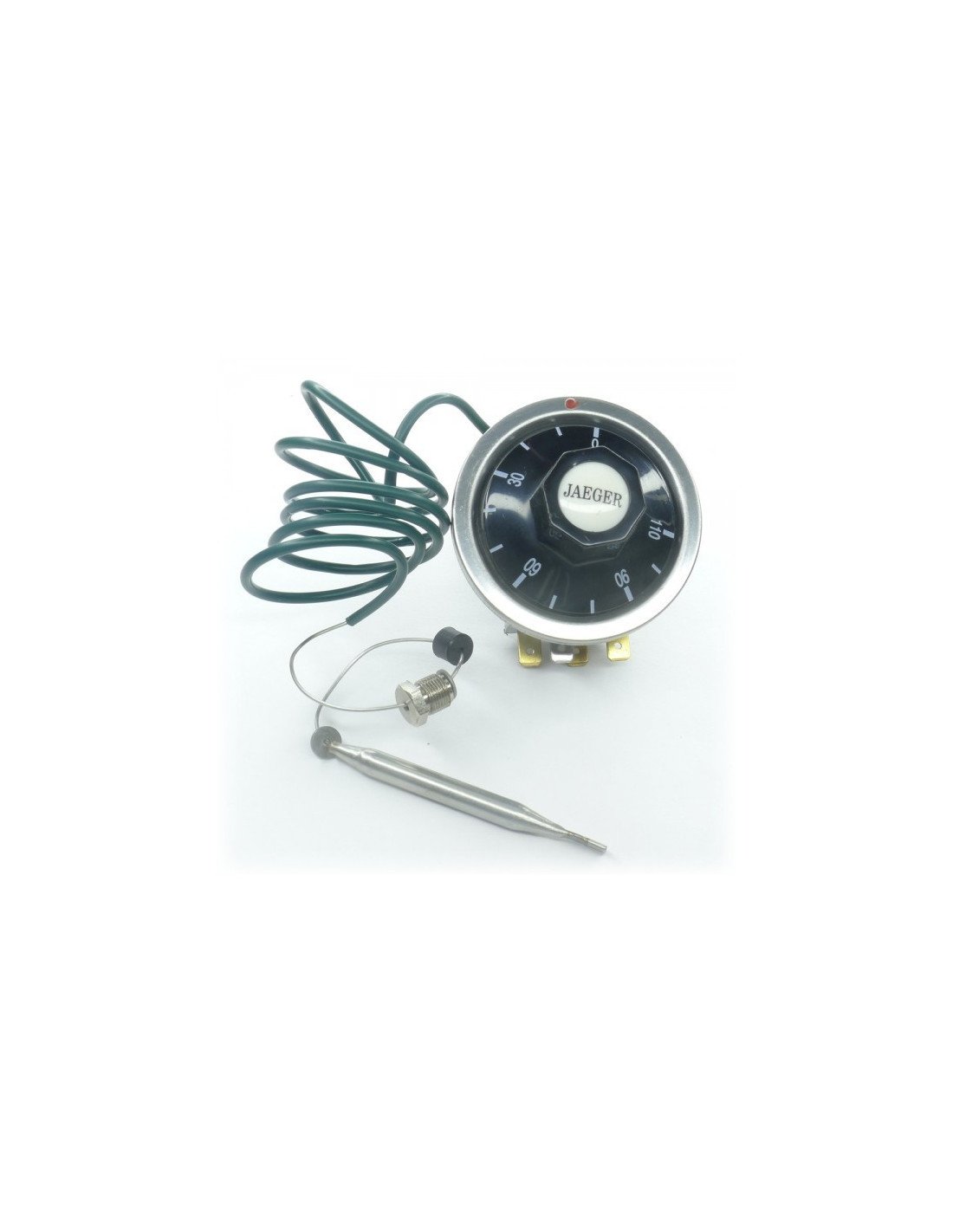

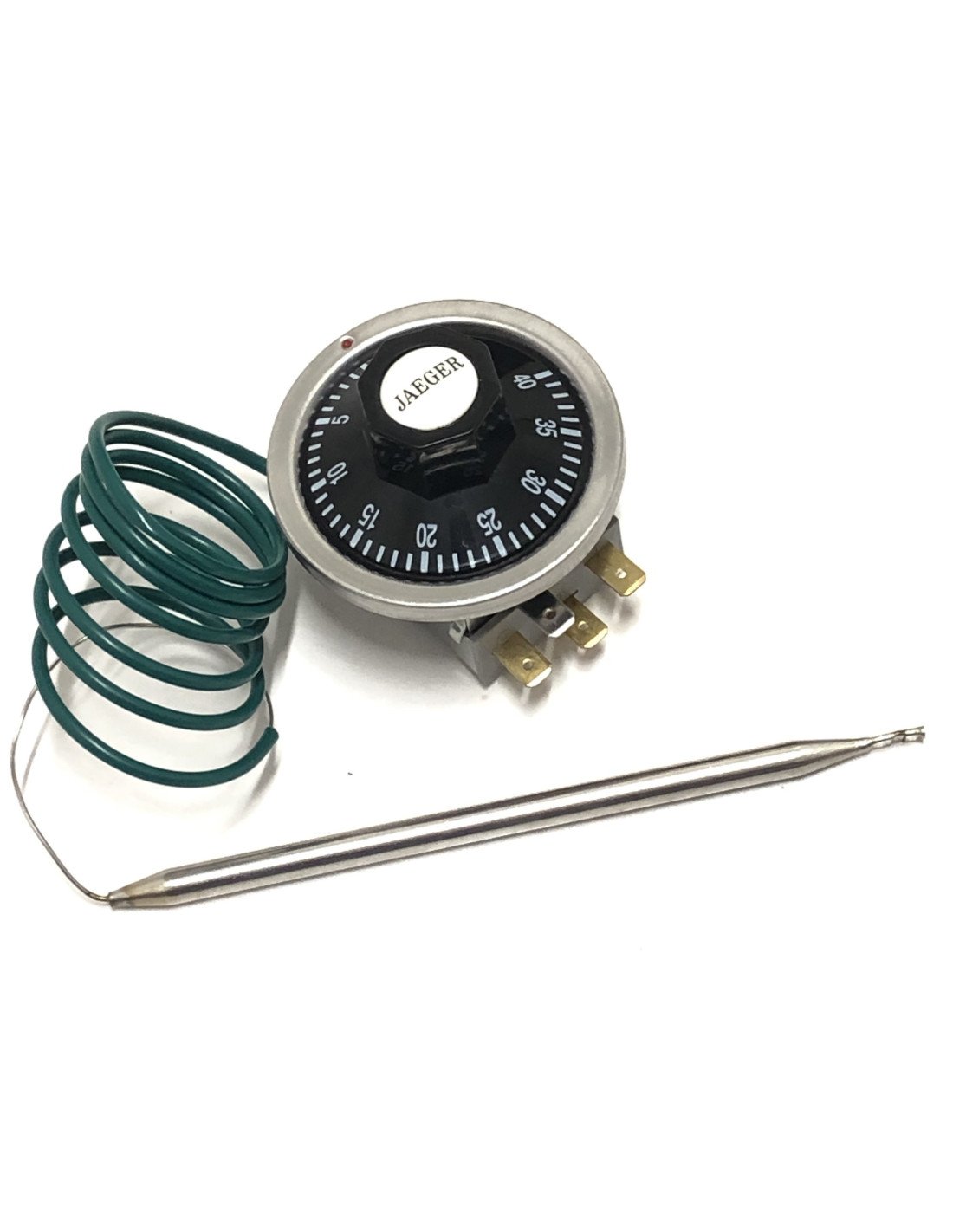

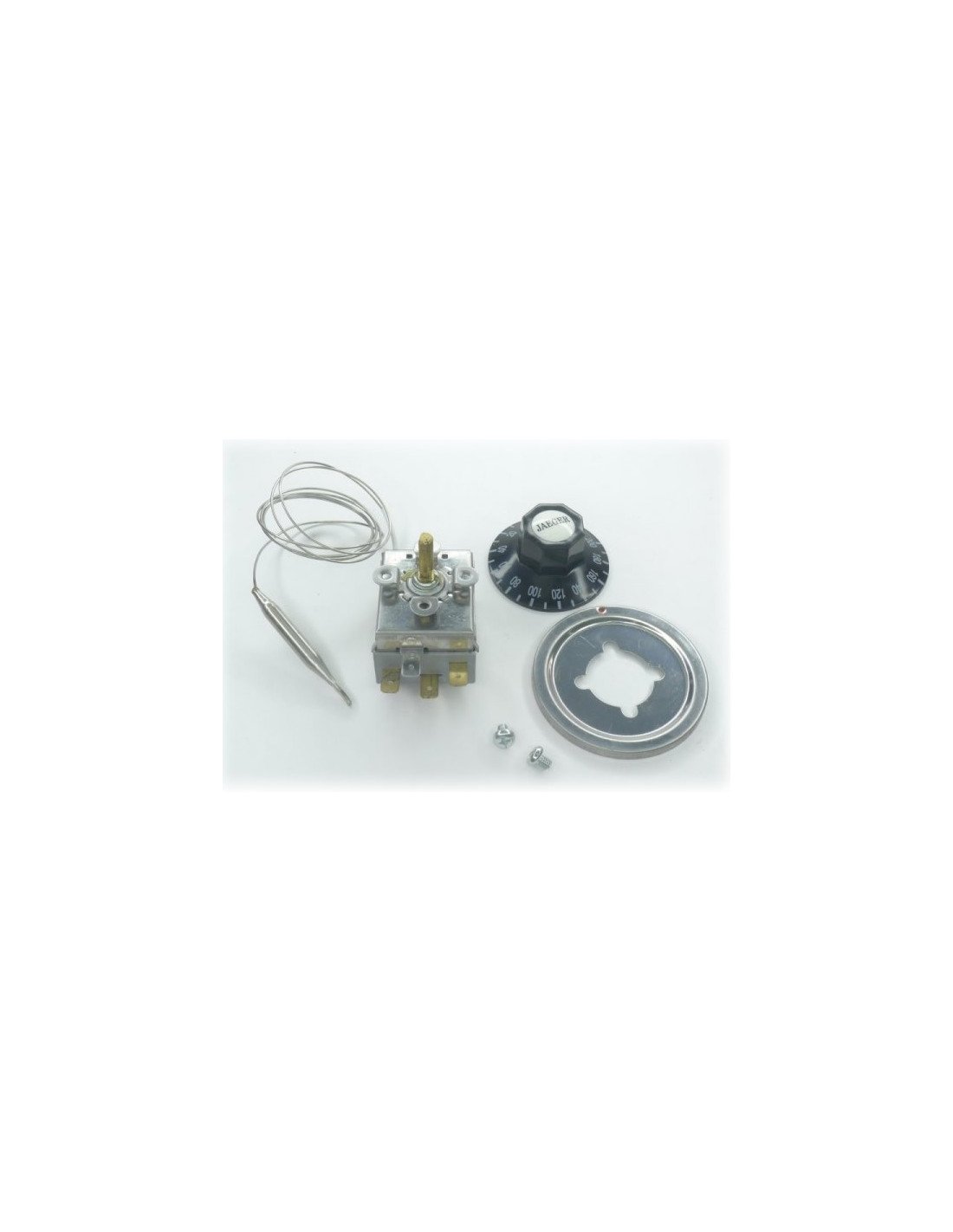

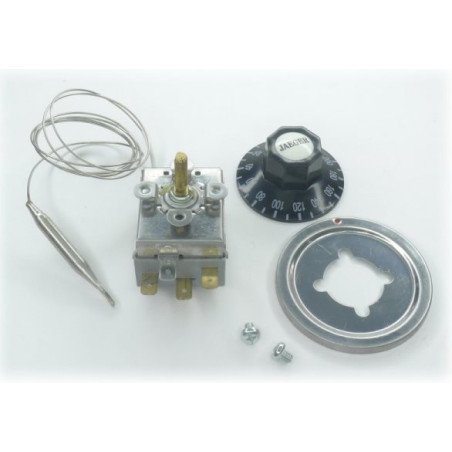

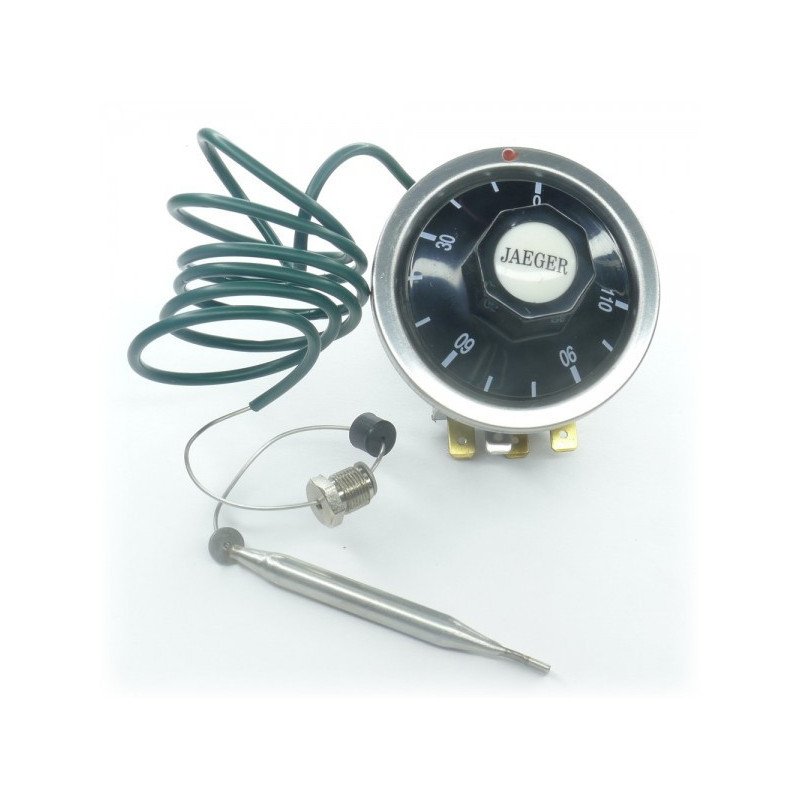

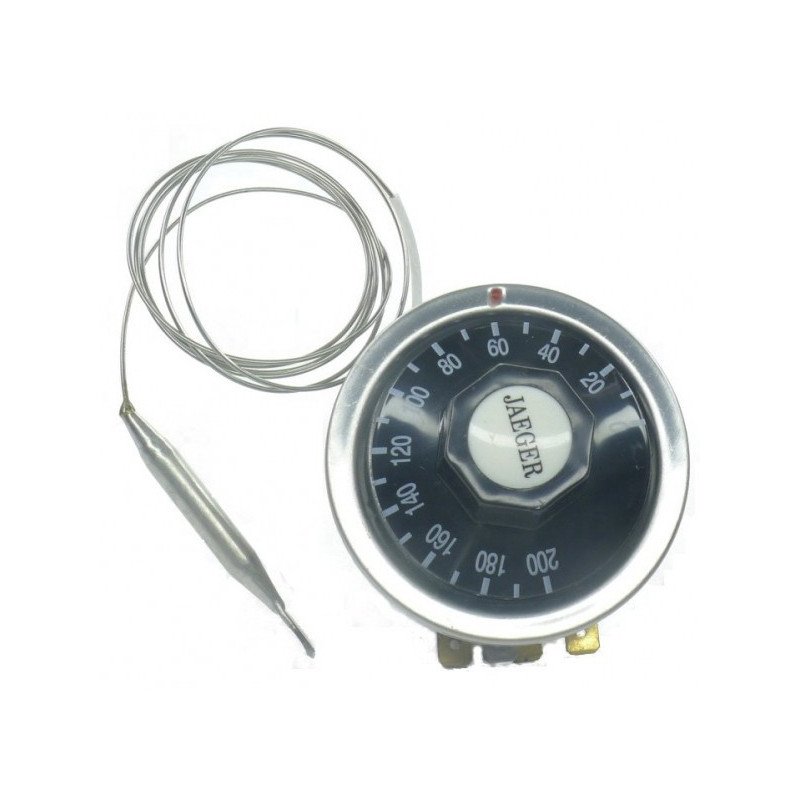

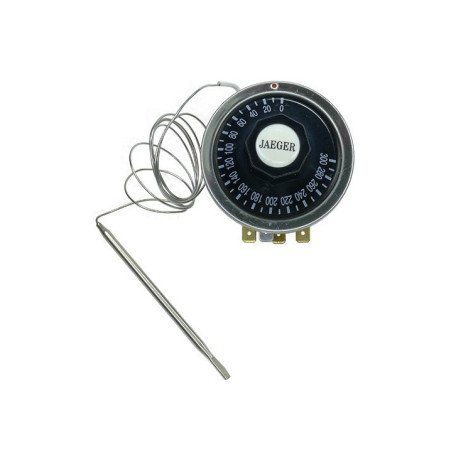

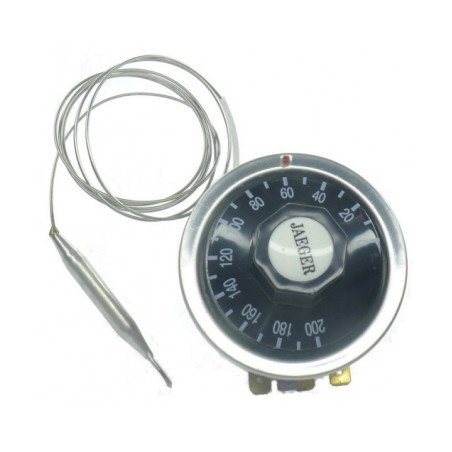

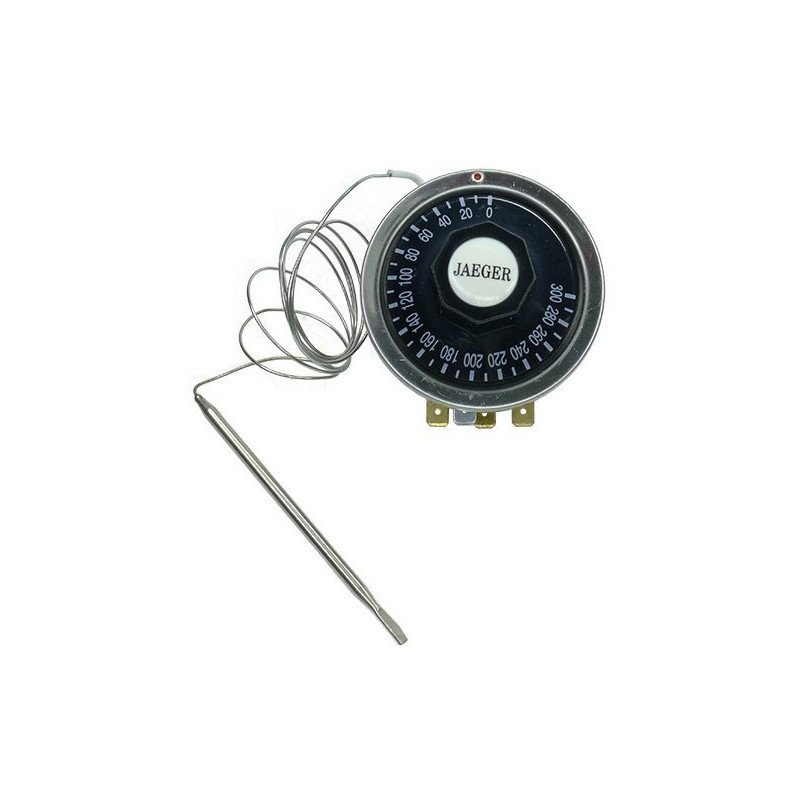

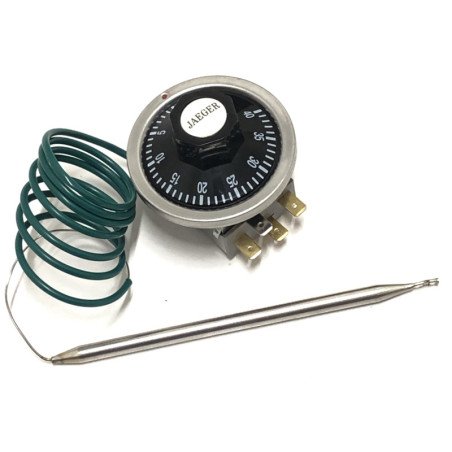

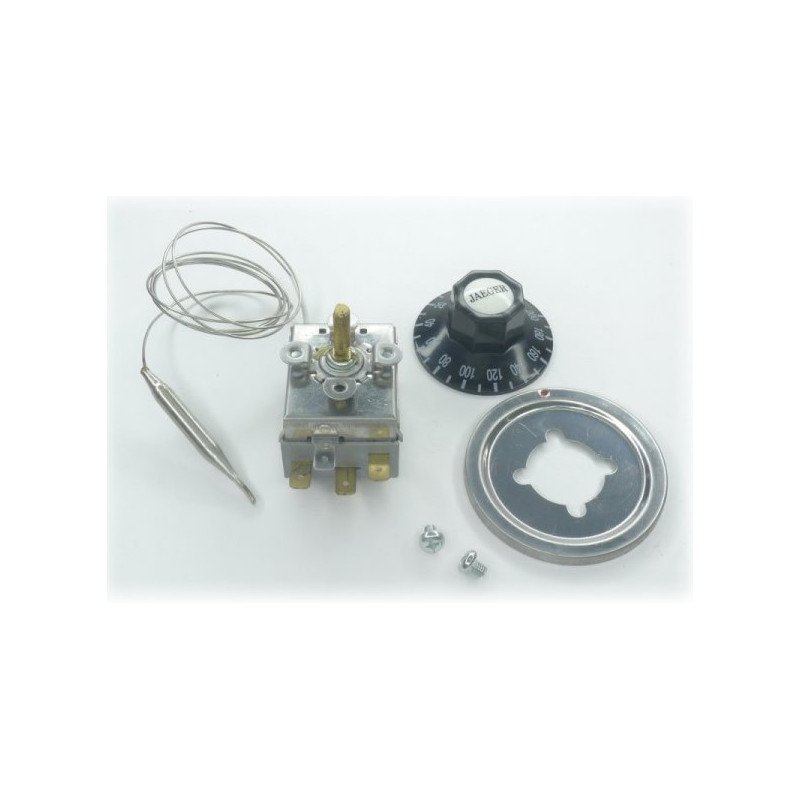

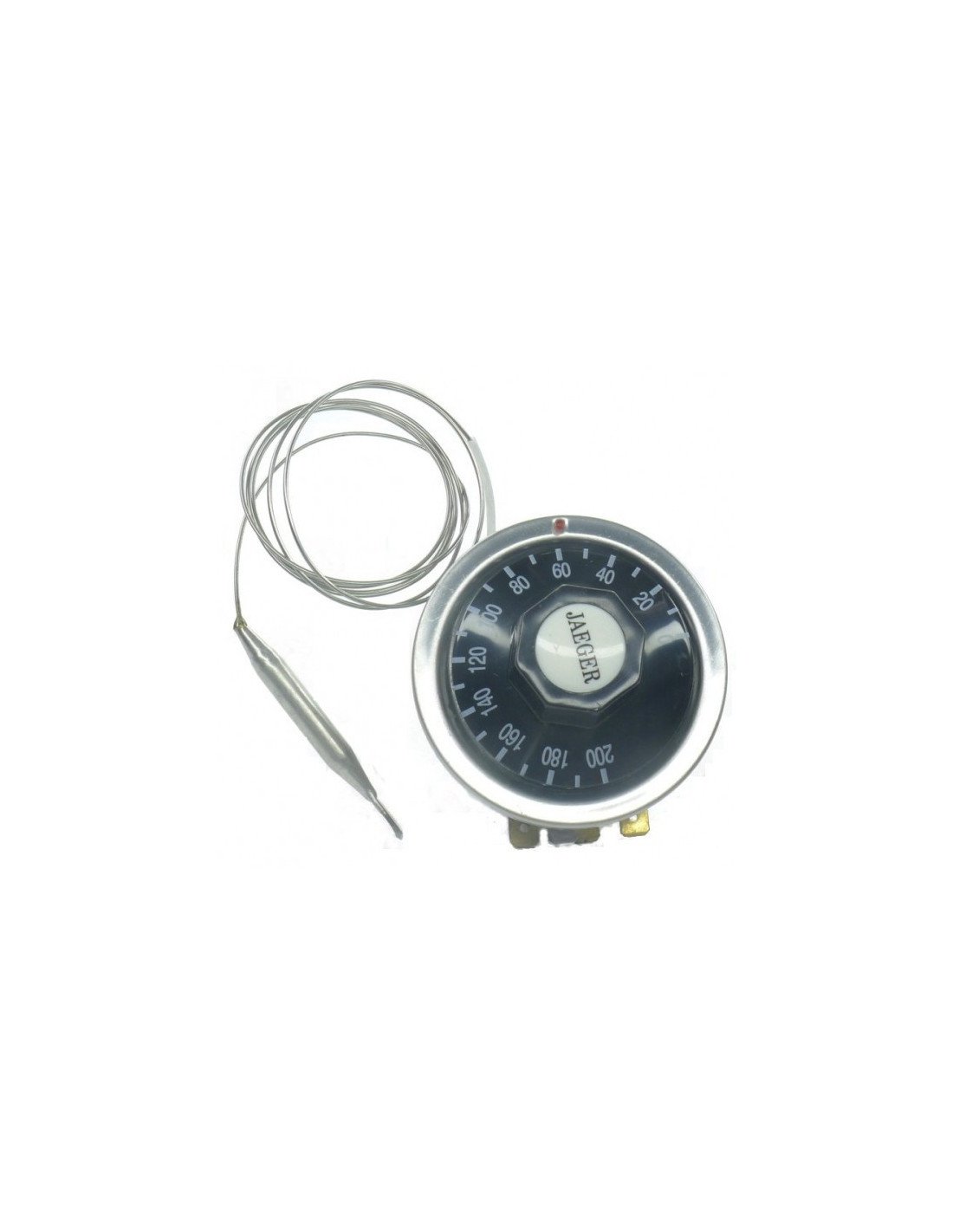

Jaeger FST capillary type thermostats

Temperature range
FST-ZA40C
Last items in stock
S$29.00
Tax excluded



Jaeger FST capillary type thermostats offer simple and high reliable temperature control for applications in domestic & industrial ovens, suana and room heating, water heaters and other general electrical heating applications.

FST-ZA40C FST-ZA110C FST-ZA200C FST-ZA300C
Temperature range °C 0 ~ 40 18 ~ 110 35 ~ 200 50 ~ 300
High Limit (off) °C 40±5 110±5 200±8 300±12
Low Limit (off) °C 0 18 35 50
Differential °C 2±1 5.5±3.5 7±4 12±6.5
Temperature Change Rate < 1.0 °C/min
Maximum operating temperature 70°C
Maximum sensor temperature 55°C 140°C 240°C 360°C
Contact Rating SPDT: C1 15A 400VAC
C2 2.5A 400VAC
Capillary length (mm) 1000
Sensing bulb size �xL (mm) 8 x 111±2 6.5 x 71±2 6.5 x 61±2 4 x 102±2
Insulation Resistance MΩ >100
Dielectric strength AC 2000V 1 minute
Mechanical life 100,000 cycles
Approval Semko, VDE

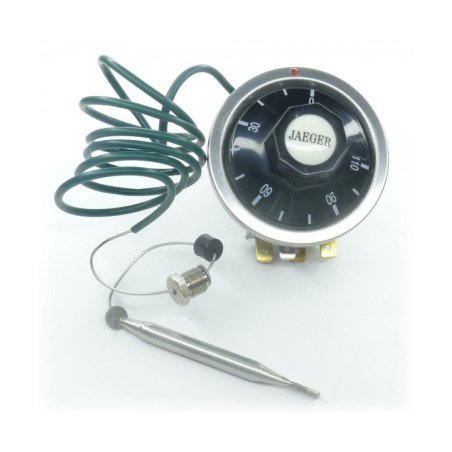

Optional Accessory FST-ZA-NUT, water proof lock nut

FST thermostat dimensions
