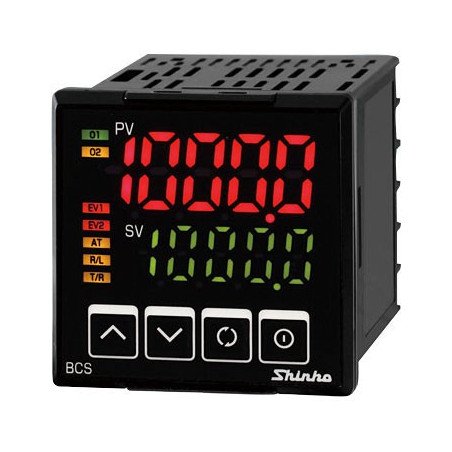

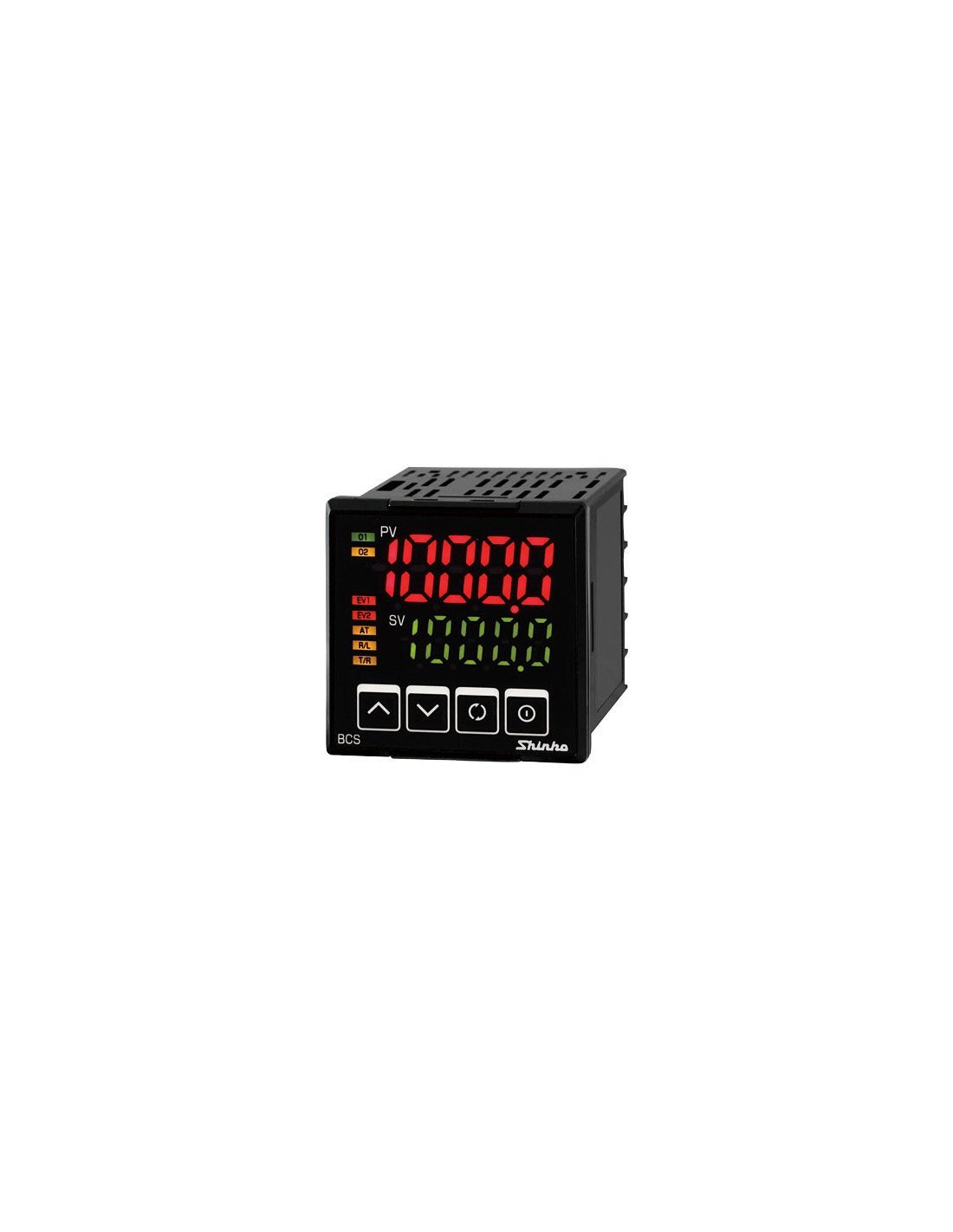

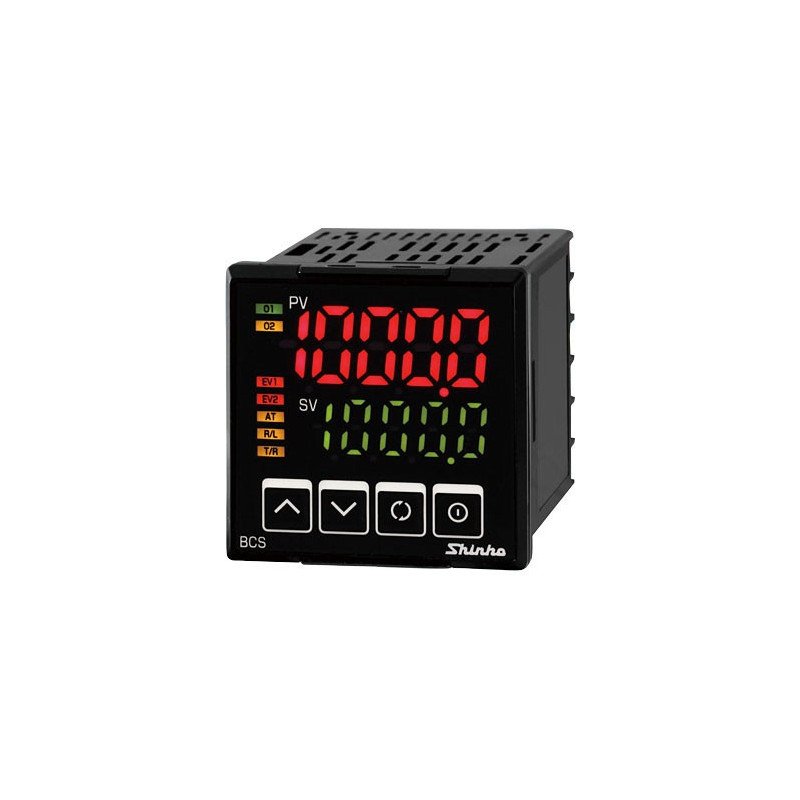

Shinko Technos BCx Controller

Name: Shinko Technos BCx Controller
Brand: Shinko Technos
SKU: 40
Price: 137.5 SGD
Availability: InStock

Shinko Technos BCx PID controller with programmable 9-step pattern

Voltage supply

Signal input type

Control output

Frame Size

Reference BCS2R00-00

S$137.50

Tax excluded

Shinko Technos BCx PID controller with 9-step programmable pattern as standard and configurable as a signal converter (BC_2A model).

temperature profile

Model Specifications

	BC_2	_	_	_-	_	_

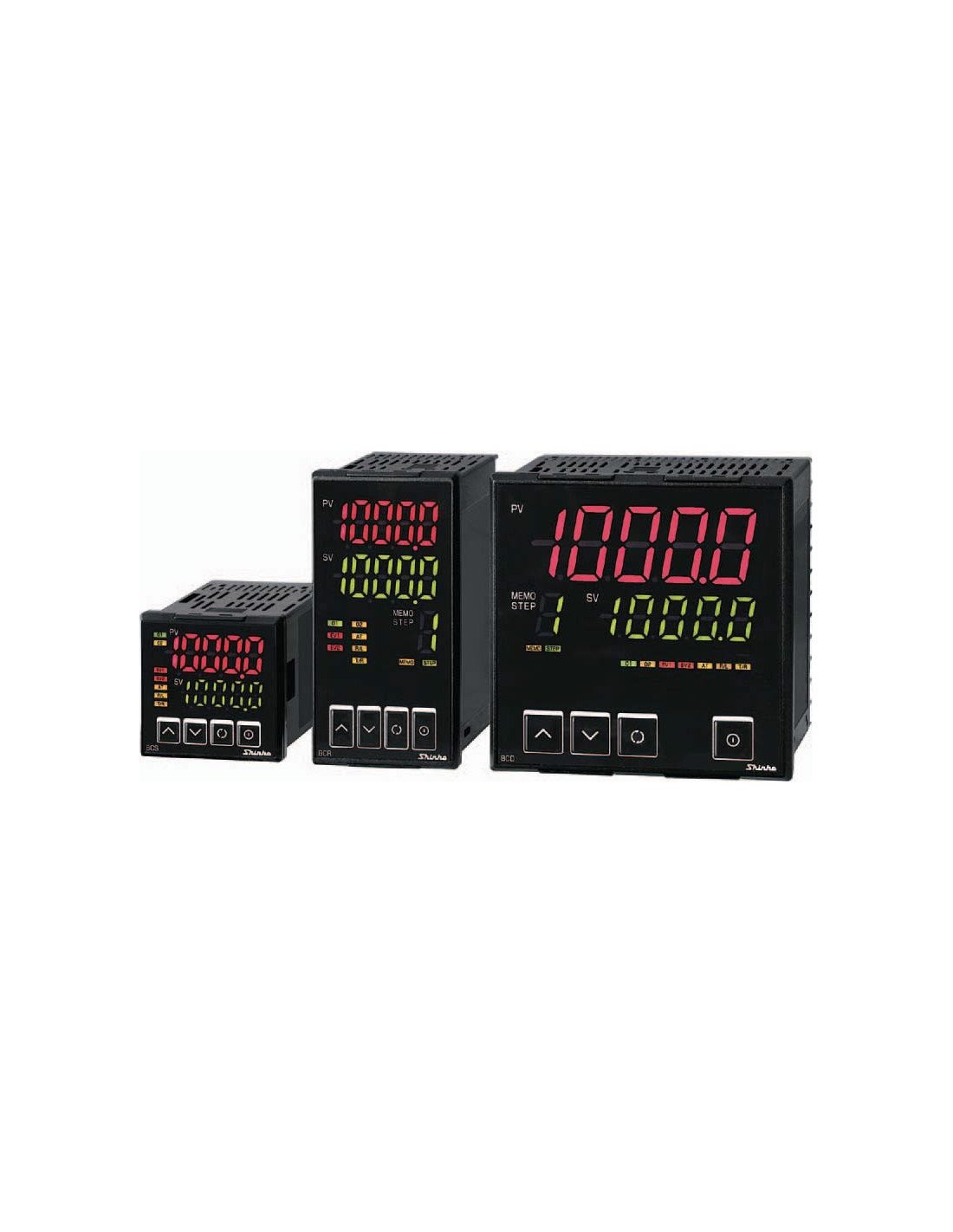

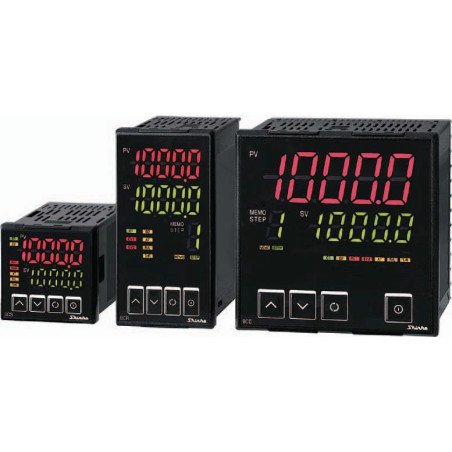

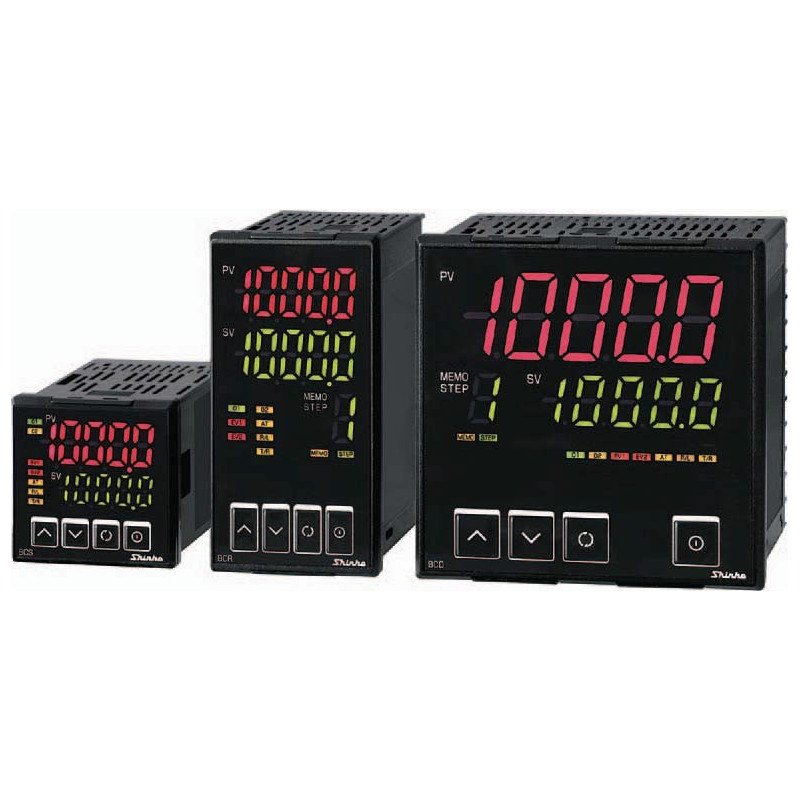

Size	BCS2						48x48x68 mm (WxHxD)
	BCR2						48x96x68 mm
	BCD2						96x96x68 mm
Control output OUT 1		R					Relay contact: 1a
		S					Non-contact voltage (for SSR drive) 12VDC
		A					4 to 20mA DC
Power supply voltage			0				100 to 240VAC (standard)
Power supply voltage			1				24V AC/DC
Input				0			Thermocouple (K,J,R,S,B,E,T,N,PL-II,C), Pt100, jPt100, 4-20mA, 0-20mA, 0-1V, 0-5V, 1-5V, 0-10V
Option 1					0			No Option
					1		EV2	Event output EV2
					2		DS	Heating/Cooling control output OUT2, Non-contact voltage
					3		DA	Heating/Cooling control output OUT2, Direct current
					4		P24	Insulated power output (24VDC)
					5		EV2+DR	Event output EV2 + Heating/Cooling control output OUT2, Relay contact
					6		EV2+DS	Event output EV2 + Heating/Cooling control output OUT2, Non-contact voltage
					7		EV2+DA	Event output EV2 + Heating/Cooling control output OUT2, Direct current
Option 2						0		No option 2
						1	C5W (20A)	Event input (2 points) + Serial communication + Heater burnout alarm (20A)
						2	C5W (100A)	Event input (2 points) + Serial communication + Heater burnout alarm (100A)
						3	EIW (20A)	Event input (2 points) + Heater burnout alarm (20A)
						4	EIW (100A)	Event input (2 points) + Heater burnout alarm (100A)
						5	EIT	Event input (2 points) + External Setting input + Transmission output
						6	C5	Serial communication
						7	W (20A)	Heater burnout alarm (20A)
						8	W (100A)	Heater burnout alarm (100A)
						9	EI	Event input (2 points)
