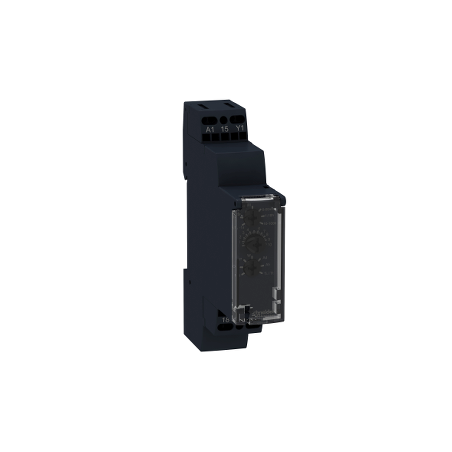

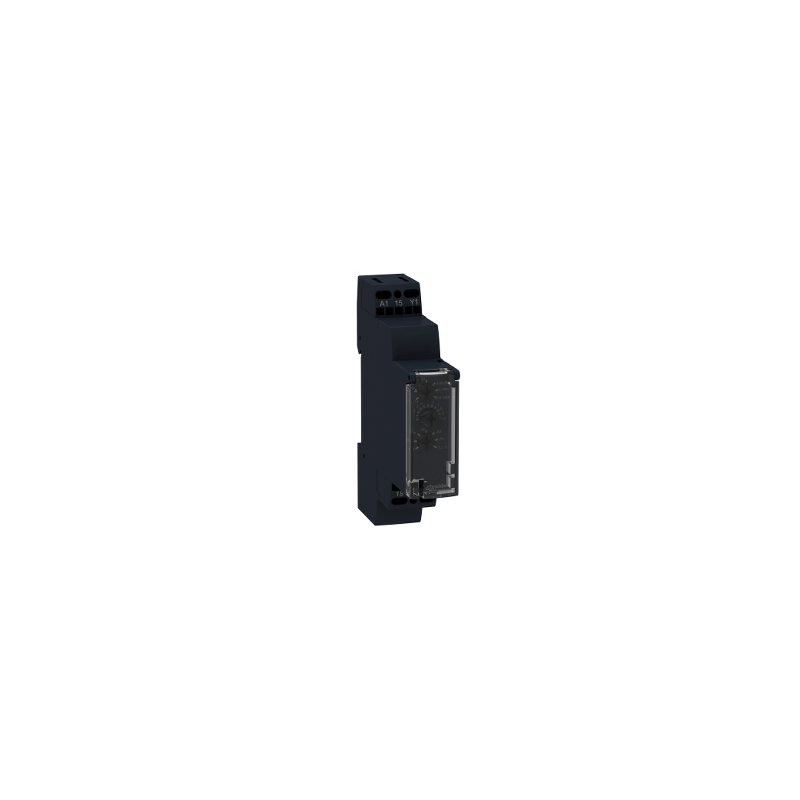

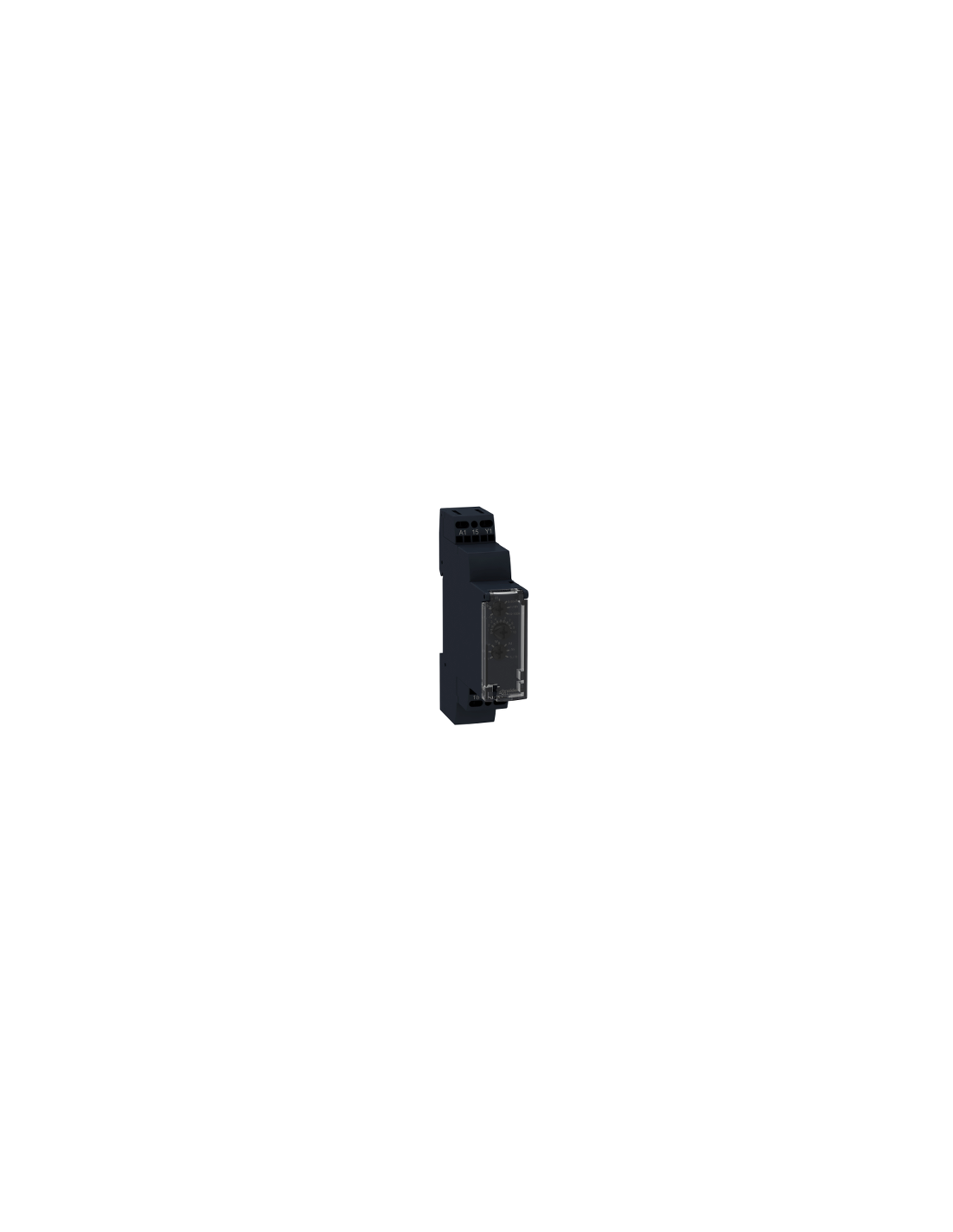

Multifunctional Timers - Zelio RE17R Series
RE17R series timing relays enable simple automation cycles to be set up using wired logic. They are also used to compliment the functions of PLCs.
Relay outputs provide complete isolation between the supply circuit and the output. It is possible to have several output circuits.
Specifications
| Attribute | Value |
| Supply Voltage | 24 V dc, 24 → 240 V ac |
| Time Range | 1 s → 100 h |
| Mode of Operation | Multi Function |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Series | RE17 |
| Time Increment | Hours, Minutes, Seconds |
| Contact Configuration | SPDT |
| Current Maximum | 8 A |
| Terminal Type | Screw |
| Minimum Voltage | 24 V ac |
| Maximum Voltage | 24 V dc, 240 V ac |
| Width | 17.5mm |
| Switch Configuration | SPDT |
