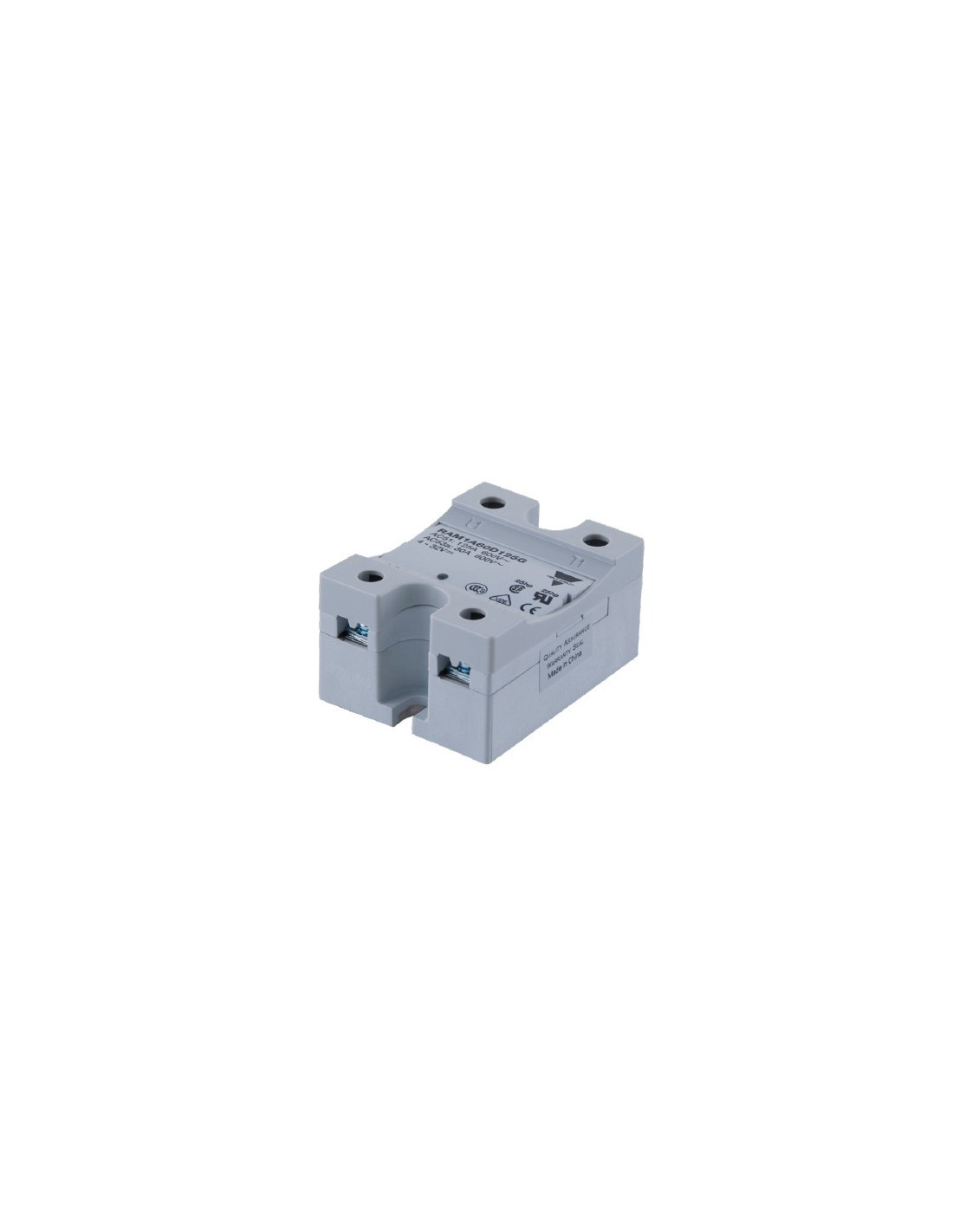

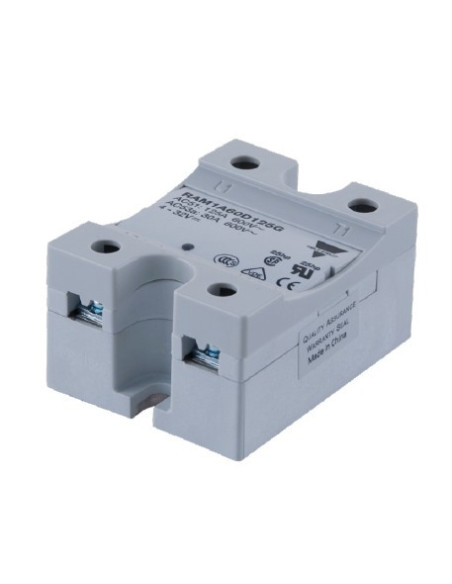

The industrial, single phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. The Zero Switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The built-in varistor secures transient protection. The LED indicates the status of the control input. The clip-on cover securs touch protection (IP20). Protected output terminals can handle cables up to 16mm2 .
| Rated Voltage, Blocking Voltage, Switching Mode | Control Voltage | Maximum rated operational current | ||||
| AC 25A | AC 50A | AC 51A | AC 100A |
AC 125A |
||
| 230VAC, 650Vp, ZC | 3-32 VDC | RAM1A23D25G | RAM1A23D50G | - | - | - |
| 20-280VAC, 24-48VDC | RAM1A23A25G | RAM1A23A50G | - | - | - | |
| 600VAC, 1200Vp, ZC | 4-32VDC | RAM1A60D25G | RAM1A60D50G | RAM1A60D51G | RAM1A60D100G | RAM1A60D125G |
| 20-280VAC, 24-48VDC | RAM1A60A25G | RAM1A60A560G | RAM1A60A51G | RAM1A60A100G | RAM1A60A125G | |
