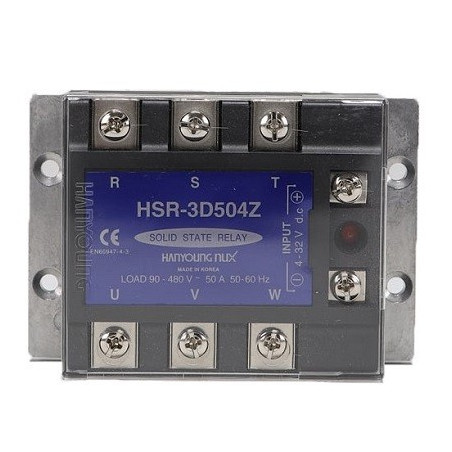

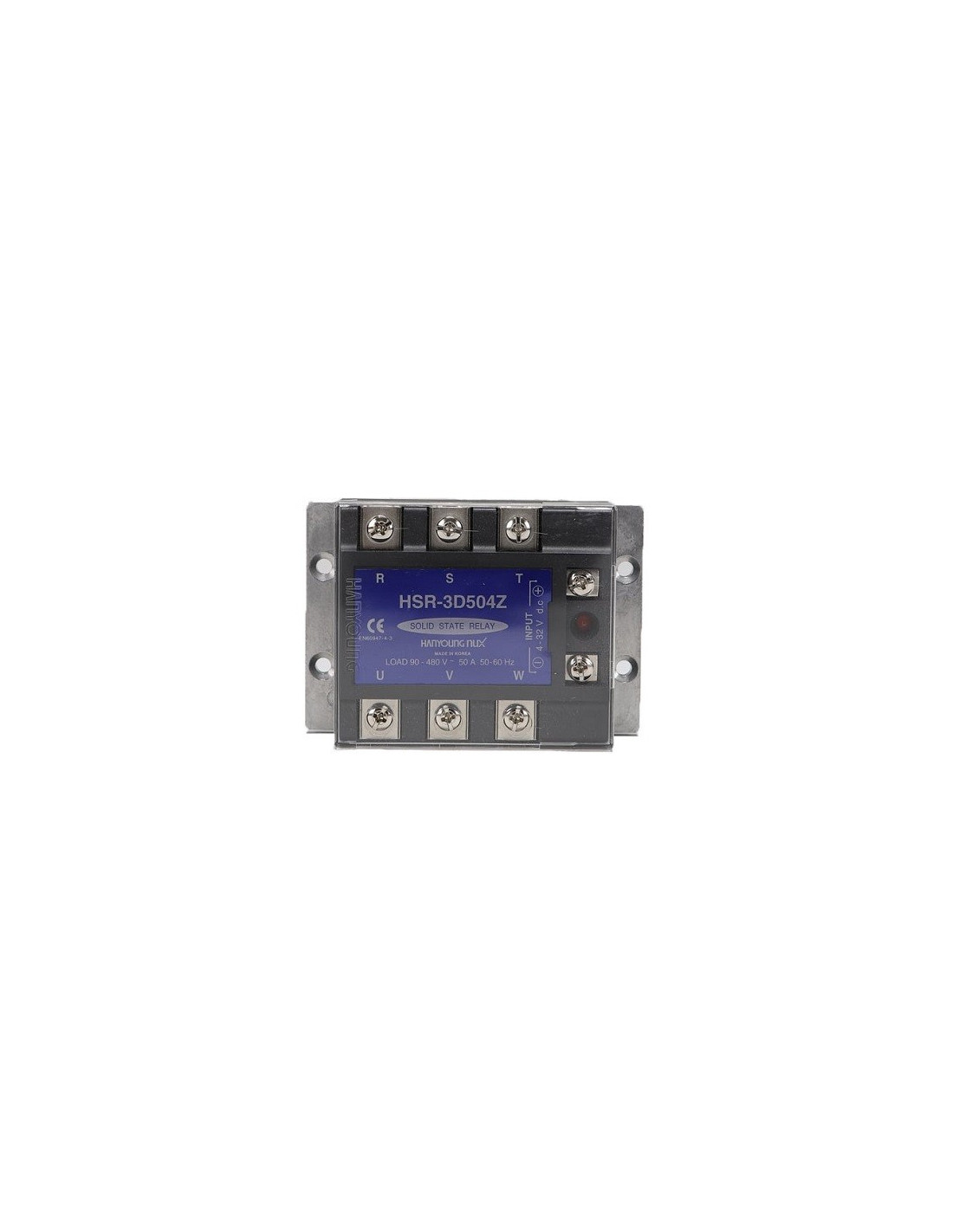

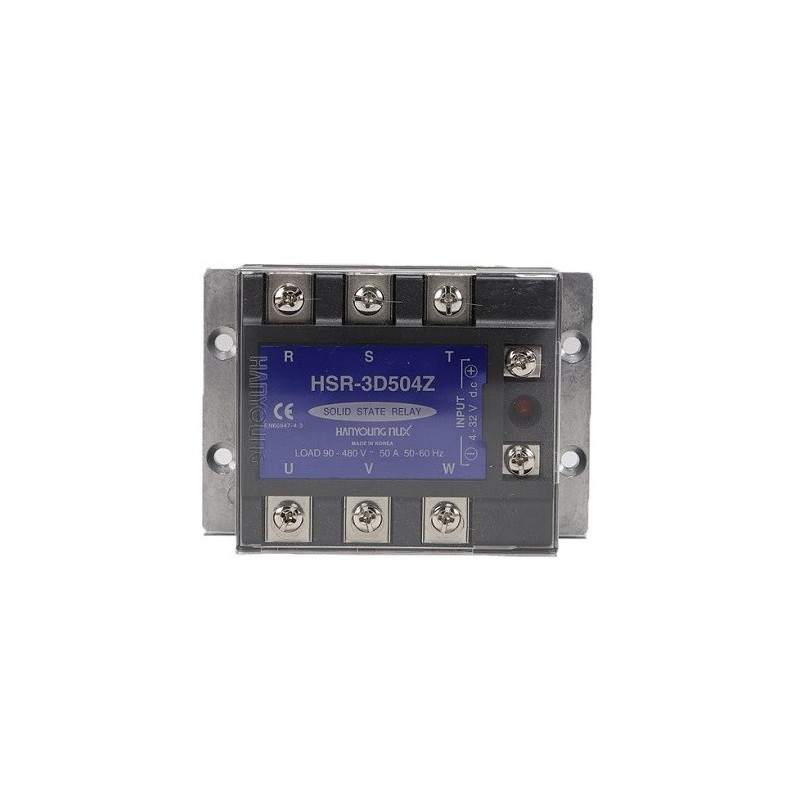

Rated load voltage: 90-480VAC
Output load current: 50A
Input rated voltage: 4-32VDC
Dimensions: 75x109x35mm
Specification
| Model | HSR-3D104 |
HSR-3D204 |
HSR-3D304 |
HSR-3D404 |
HSR-3D504 |
HSR-3D704 |
|
| Load | Rated load voltage | 100 - 440 V AC | |||||
| Power supply voltage | 90 - 480 V AC | ||||||
| Peak voltage (no repetition) |
800 V | 1200 V | |||||
| Rated load current | 10 A | 20 A | 30 A | 40 A | 50 A | 70 A | |
| Frequency | 25 - 65 ㎐ | 50 - 60 ㎐ | |||||
| Input current | 170 A | 250 A | 315 A | 580 A | |||
| Leakage current | Max 20 ㎃ | ||||||
| Output ON voltage dropping | 1.95 V | 1.8 V | |||||
| Min operation current | 1 A | ||||||
| Response speed | 1/2 cycle + 1 ㎳ max. | ||||||
| Max 1 ㎳ | |||||||
| Input | Rated voltage | 5 - 24 V DC | |||||
| Usable voltage range | 4 - 32 V DC | ||||||
| Impedance | Max 4 ㏀ | ||||||
| Operation voltage | Min 3 V DC | ||||||
| Return voltage | Max 1.4 V DC | ||||||
| Input current | Constant current method : 14 ㎃ (±3) | ||||||
| Insulation resistance | 500 V DC, 100 ㏁ (Between the input / output and case) | ||||||
| Dielectric strength | 2,500 V AC (for 1 min at 60㎐) | ||||||
| Vibration resistance | 10 - 55 ㎐ Double amplitude : 1.5 ㎜, each X, Y and Z direction for 2 hour | ||||||
| Shock resistance | 1,000 ㎨, each X, Y and Z direction for 3 times | ||||||
| Storage temperature | -30 ℃ ~ 90 ℃ | ||||||
| Ambient temperature | -20 ℃ ~ 80 ℃ | ||||||
| Ambient humidity | 45 ~ 85 % RH | ||||||
| weight | Approx 400 g (included the weight of box) | Approx 2000 g | Approx 2600 g | ||||
