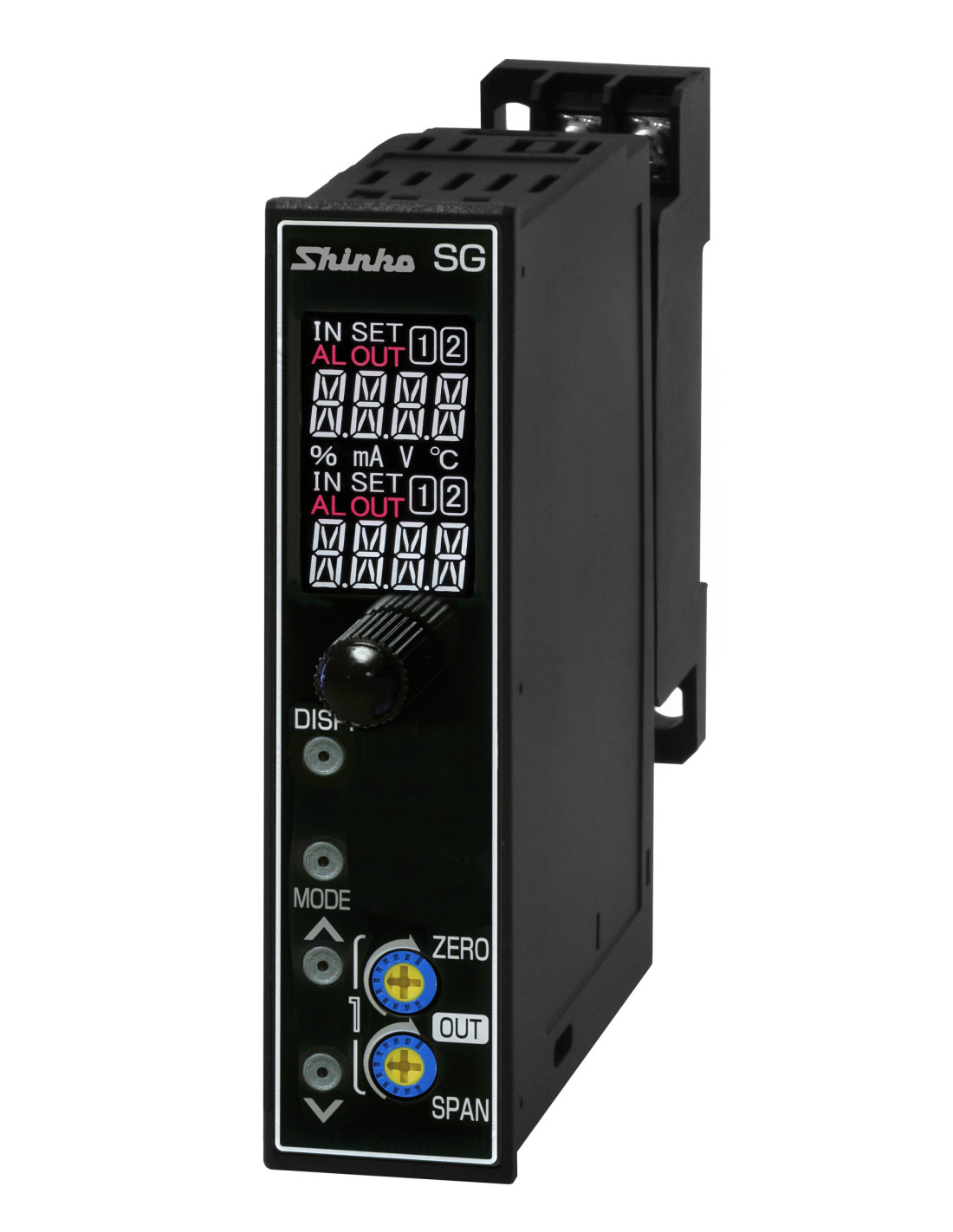

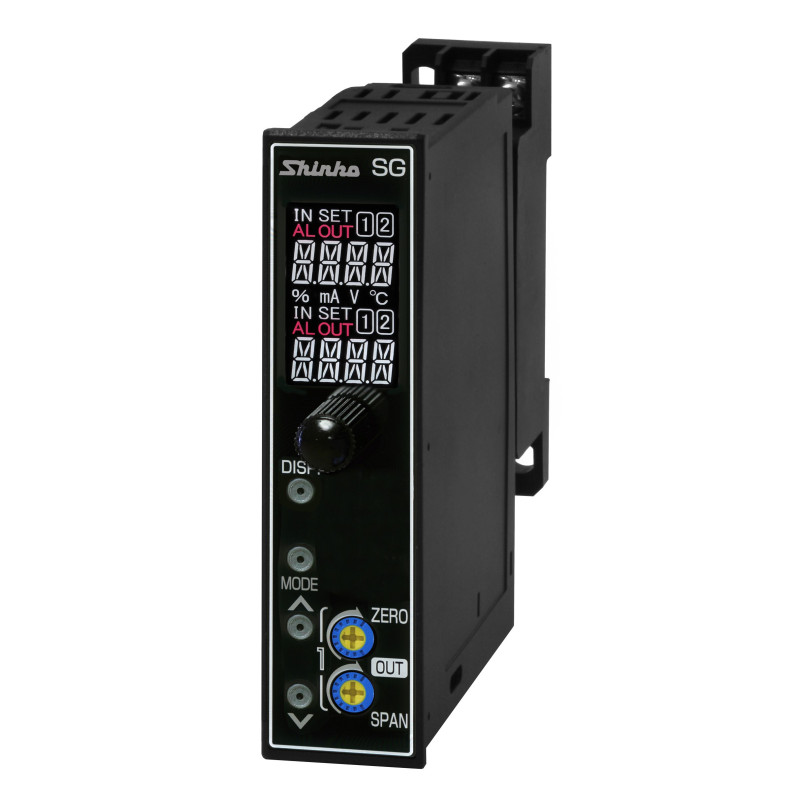

Shinko SGU
Shinko SG series universal signal transmitters offer the flexibility to convert multi-type input signals to DC analog output. User can configure various input signals (DC voltages, DC mA, thermocouples and RTD) and output types (mA and VDC) through its front panel or via PC software.
Its large white LED display can be configured to display input and output signal values.
SGUW model allows the input signal to be re-transmitted to 2 different output types.
Specifications
Basic accuracy
±0.1% @25°C
Sampling rate
500ms
Input types
Thermocouple: K, J, R, S, B, E, T, N, PL-II, W5Re/W26RE, W3Re/W25Re. RTD: Pt100, JPt100. DC current: 4 to 20mA, 0 to 20mA, 0 to 16mA, 2 to 10mA, 0 to 10mA, 1 to 5mA, 0 to 1mA, 10 to 50mA. DC voltage: 0 to 10mV, 0 to 50mV, 0 to 60mV, 0 to 100mV, 0 to 1V, 0 to 5V, 1 to 5V, -5 to 5V, 0 to 10V, -10 to 10V
Output types
Current: 4 to 20mA, 0 to 20mA, 0 to 16mA, 2 to 10mA, 0 to 10mA. Voltage: 0 to 10mV, 0 to 100mV, 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V, -5 to 5V (not available for SGUW)
Dimensions
