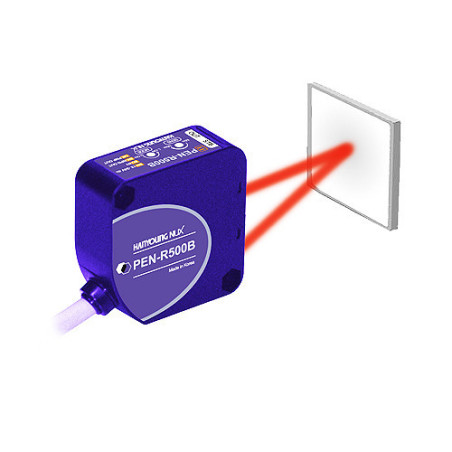

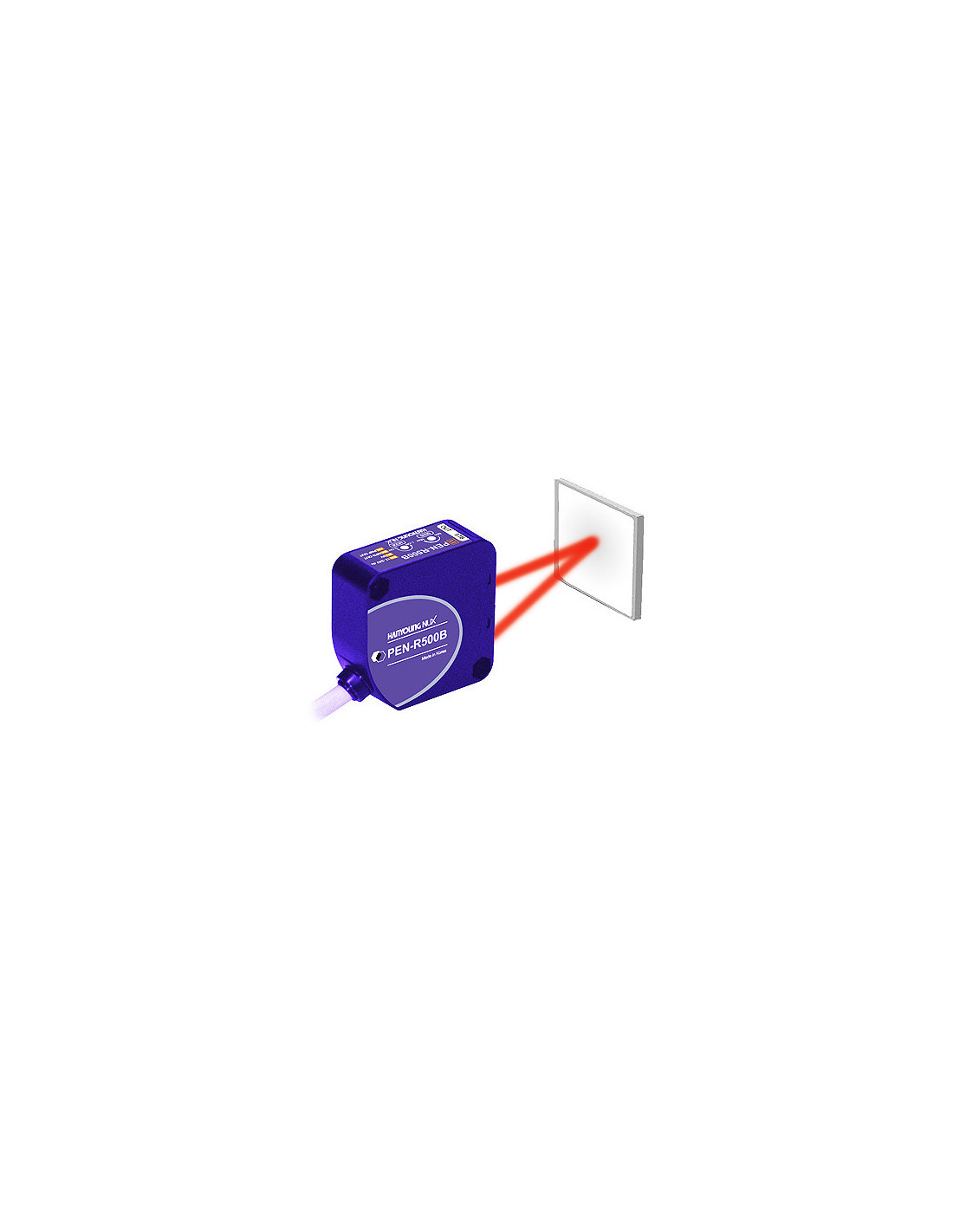

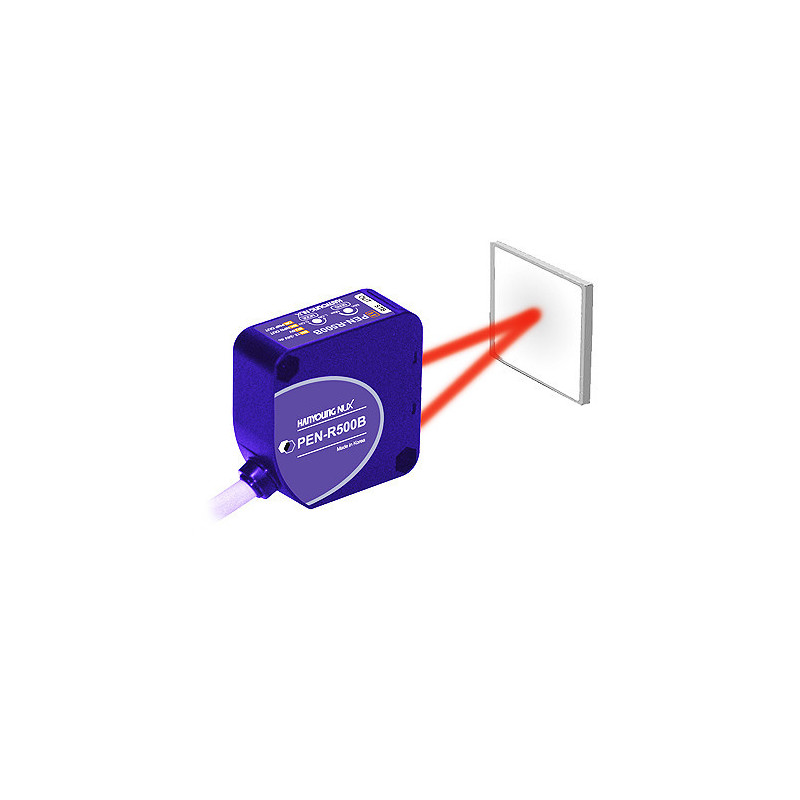

Hanyoung PEN series Photo Sensor
Hanyoung PEN series Photo Sensor

Hanyoung PEN series Photo Sensor

PEN-R700A
Last items in stock
S$82.50

Photo Sensor, 24 - 240VAC/DC ±10 % 50/60 ㎐

Type

Description

- Power built in (relay output)

- Attached motion display light

- Attached sensitivity adjustment volume

- Power voltage 24-240 V AC/DC common

Suffix code

Model Code Information
PEN - Photo Sensor
Sensing method and Sensing distance T 10   Through - beam 10 m
M 5   Retro - reflection 0.1 - 5 m
R 700   Diffuse - reflection 700 mm
Power supply voltage A 24 - 240 V AC/DC ±10 % 50/60 ㎐

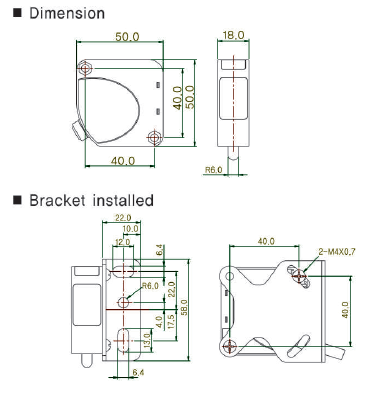

Dimensions

Product Details

Materials
Case : Heat resistance ABX
Power Supply
24 – 240 V 50 Hz / 60 Hz AC ± 10 %
Connection
Cable extended type
Insulation
20MΩ Min.
Outputs
Relay output (Contact composition 1a
Storage temperature
-20
1b)capacity : 30 V DC 5 A / 250 V AC 5 A
1
Lens : P.C
1
2 Items

Attachments
