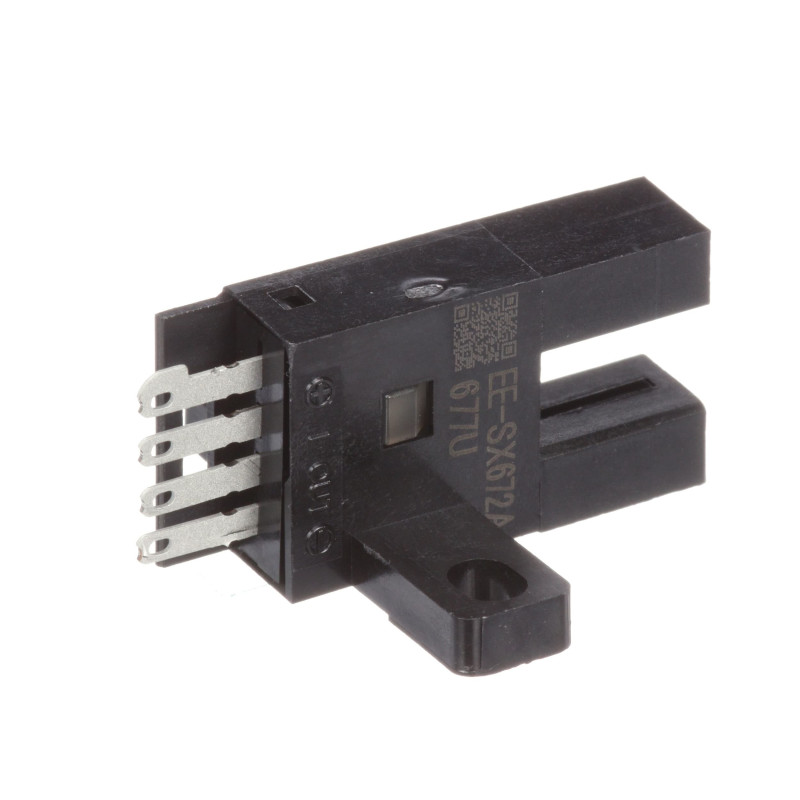

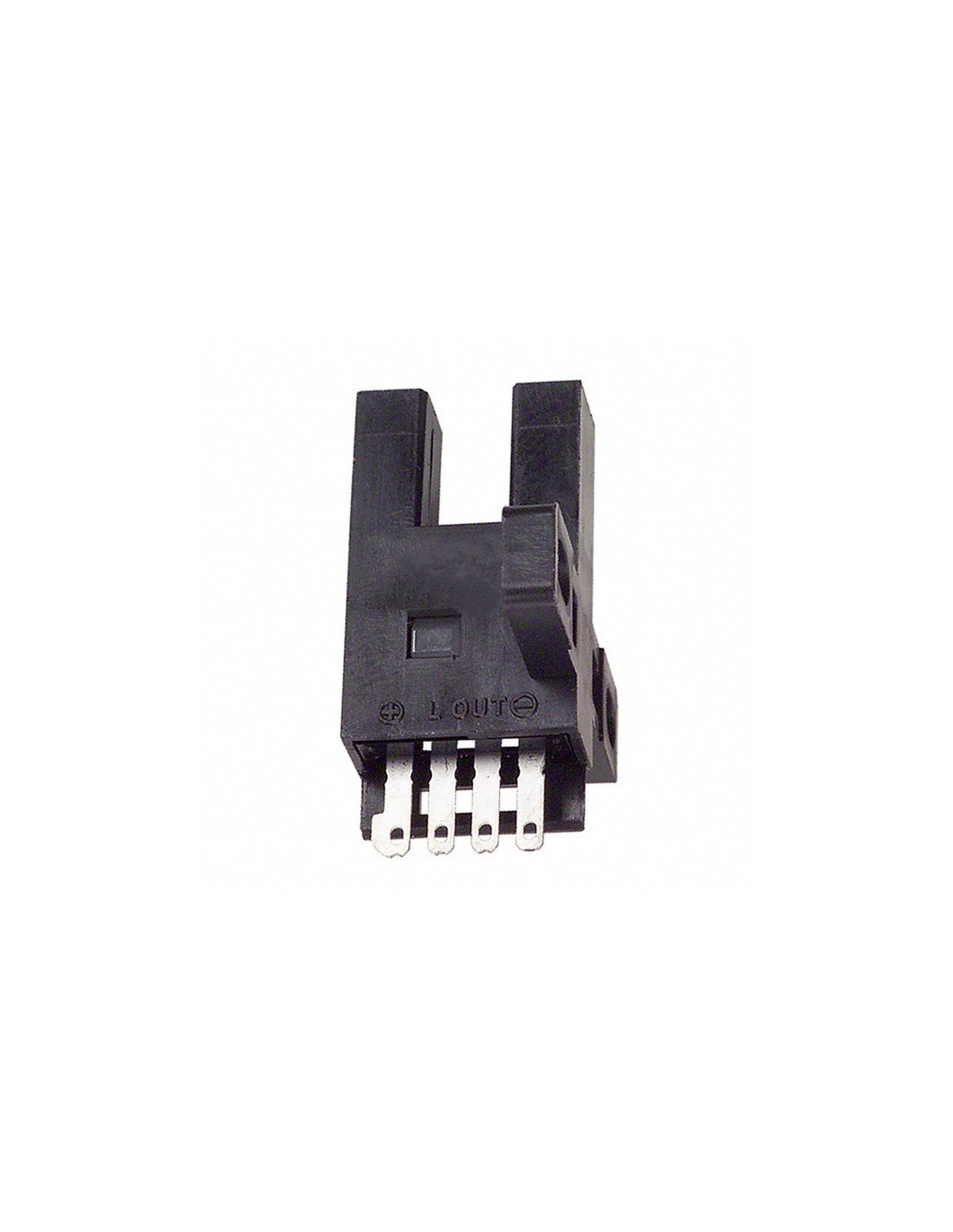

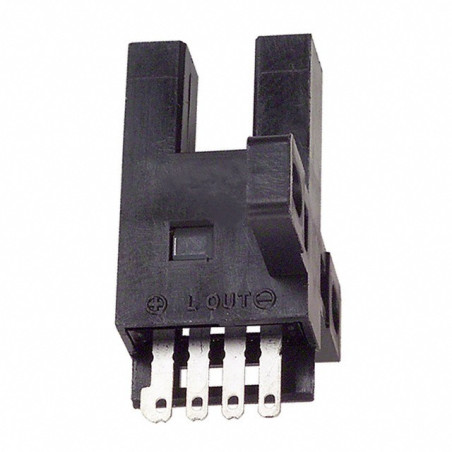

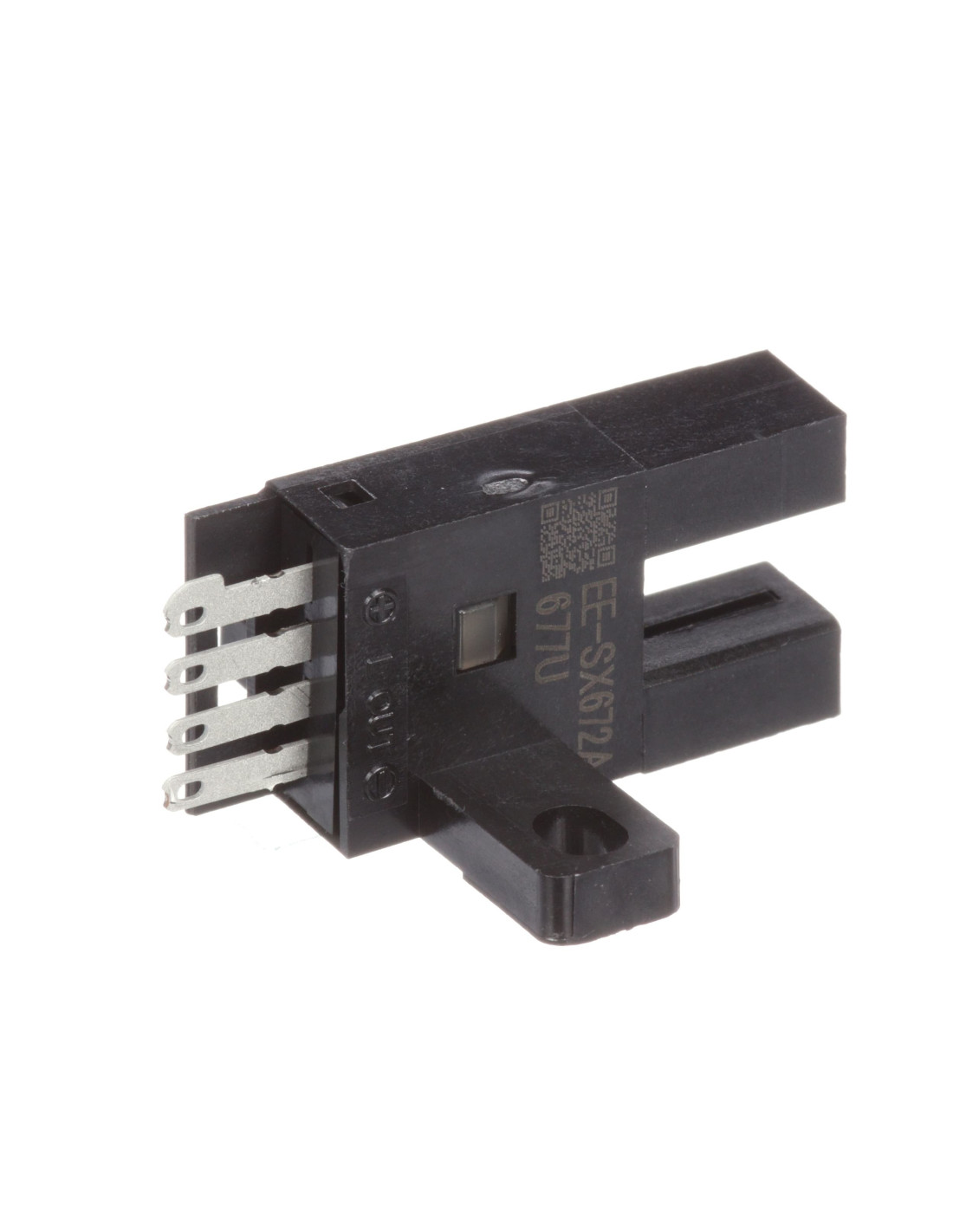

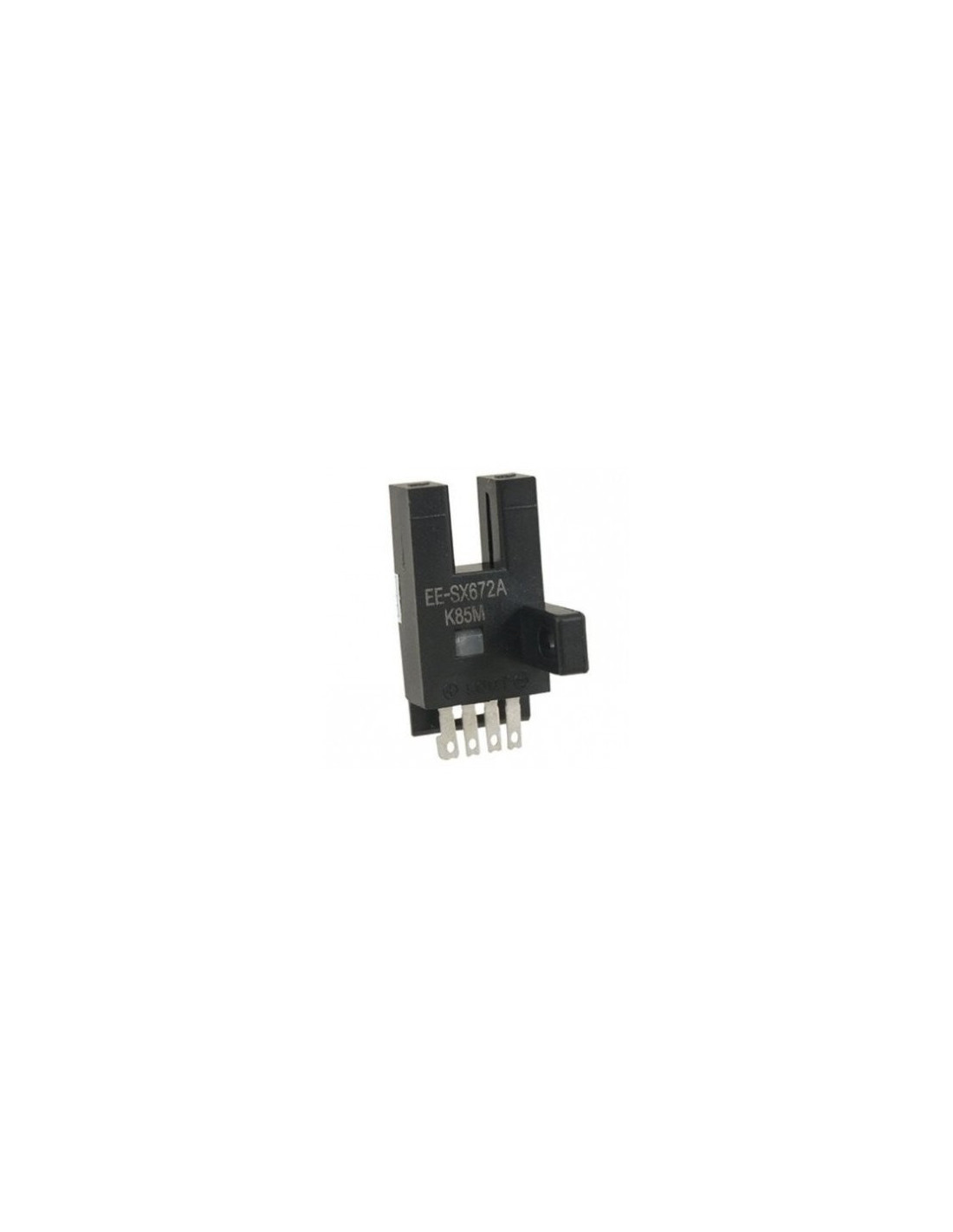

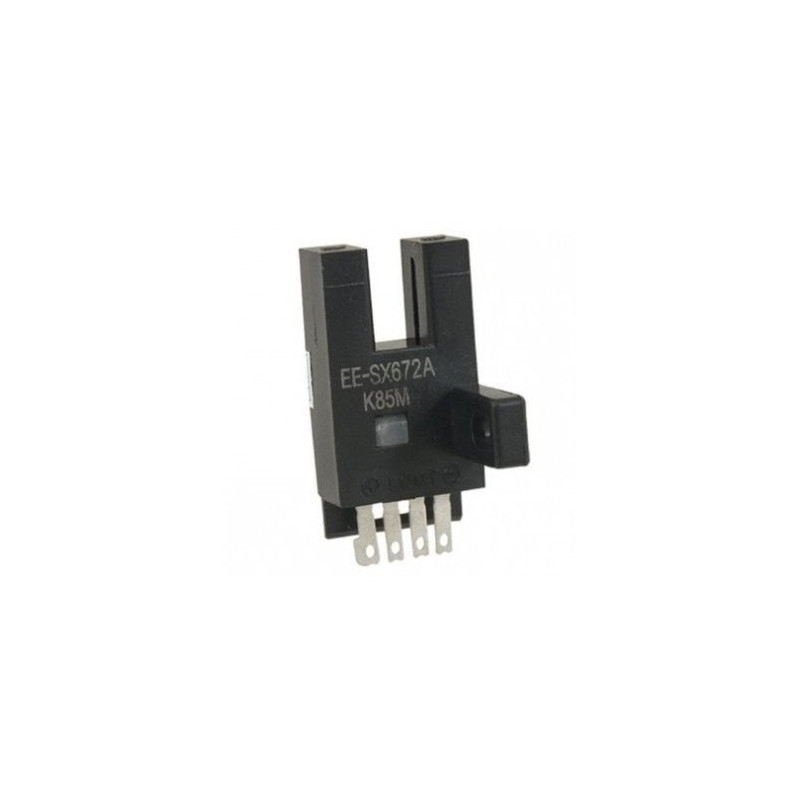

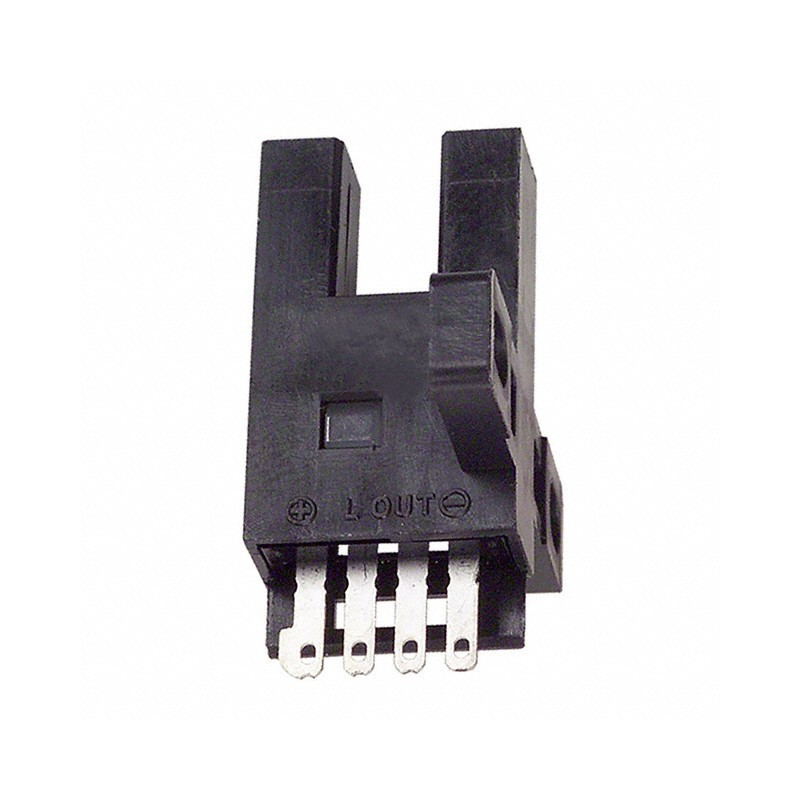

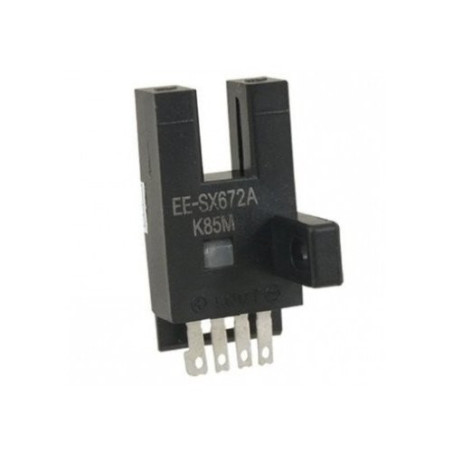

Omron EE-SX672A Slot-type Photomicrosensor

Name: Omron EE-SX672A Slot-type Photomicrosensor
Brand: Omron
SKU: EE-SX672A
Price: 15.5 SGD
Availability: InStock

Reference EE-SX672A

S$15.50

Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC

Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light

• Series includes models that enable switching between dark-ON and light-ON operation.

• Response frequency as high as 1 kHz.

• Easy operation monitoring with bright light indicator.

• Wide operating voltage range: 5 to 24 VDC

• Models in which the light indicator turns ON for dark-ON operation are also available.

• A wide range of variations in eight different shapes.

• Flexible robot cable is provided as a standard feature. *2

*1. Pre-wired Models are available only in the EE-SX67 Series.
*2. Only for Pre-wired Models.

Dimensions
