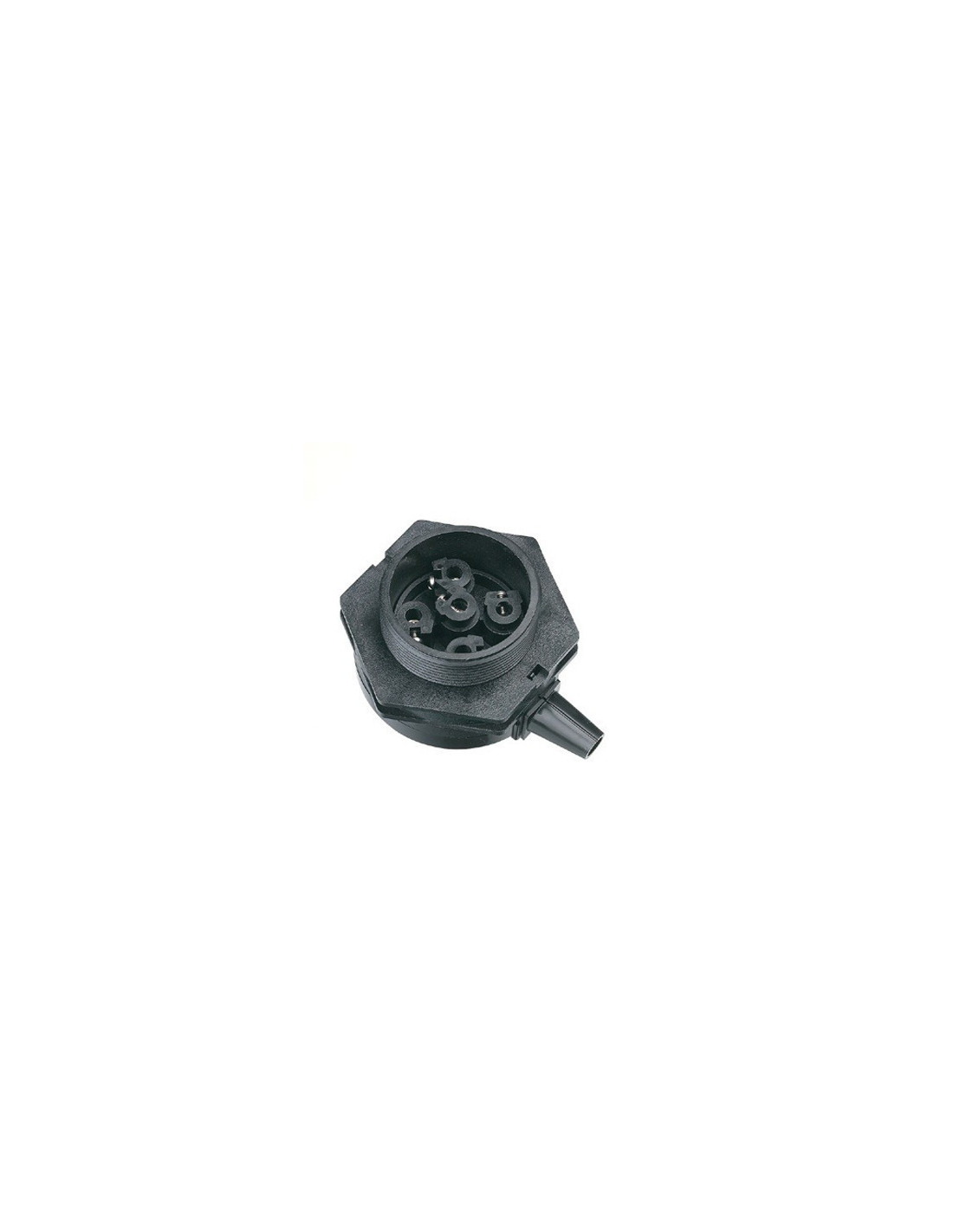

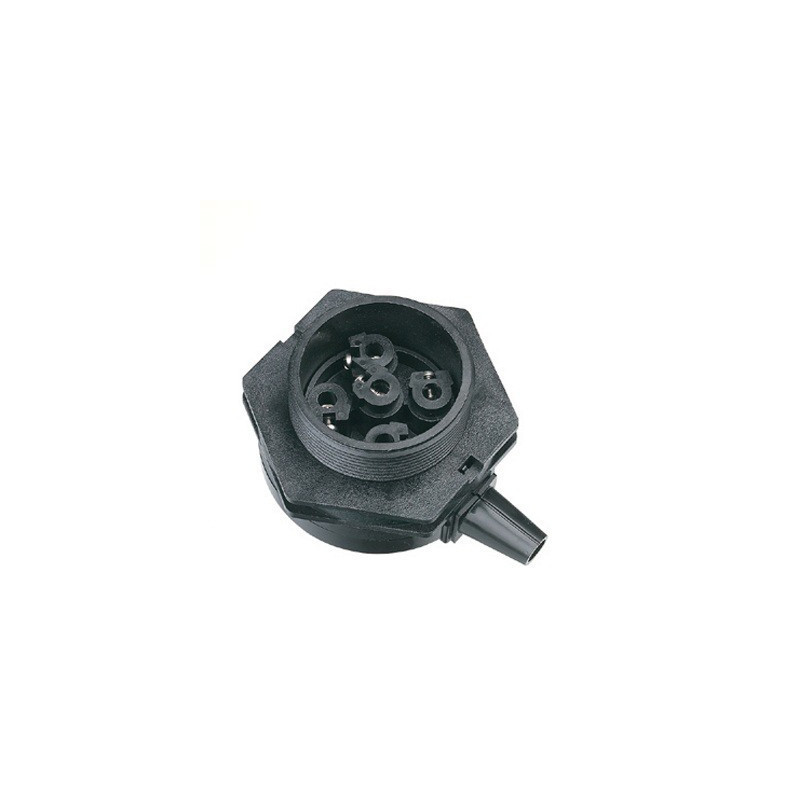

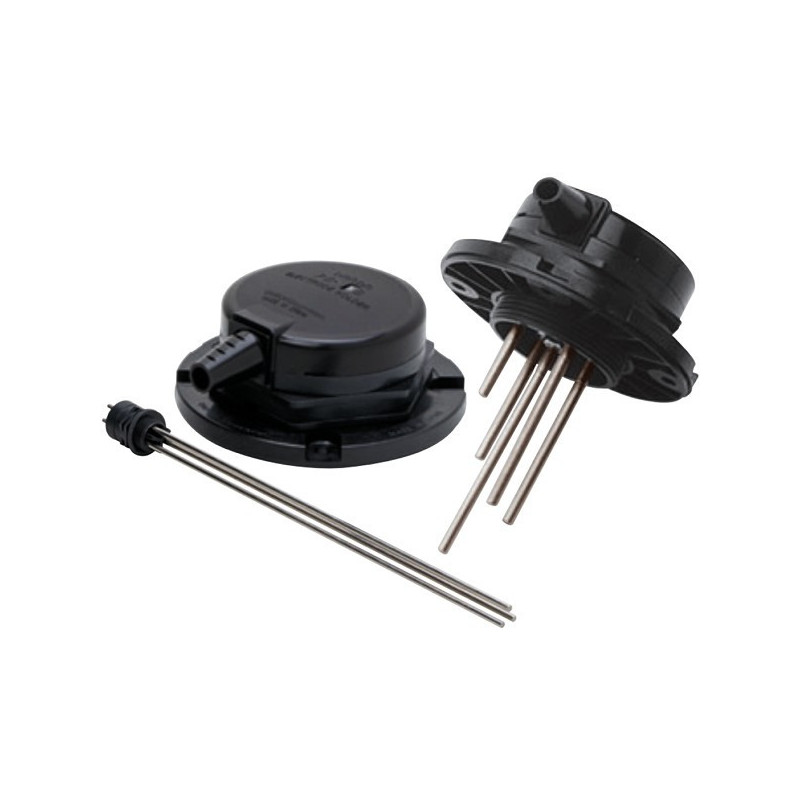

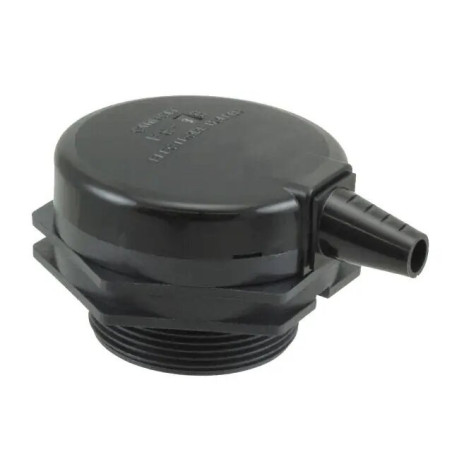

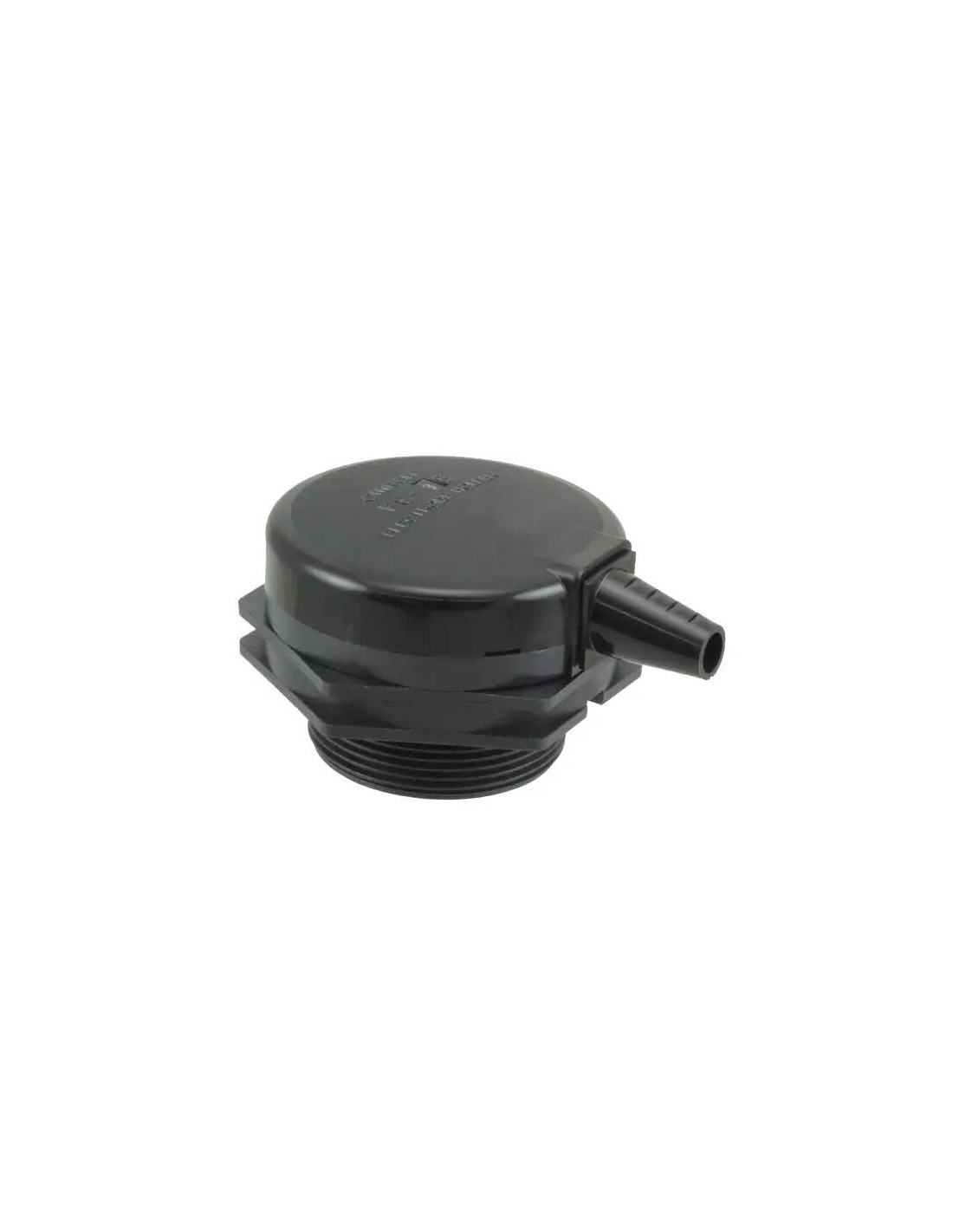

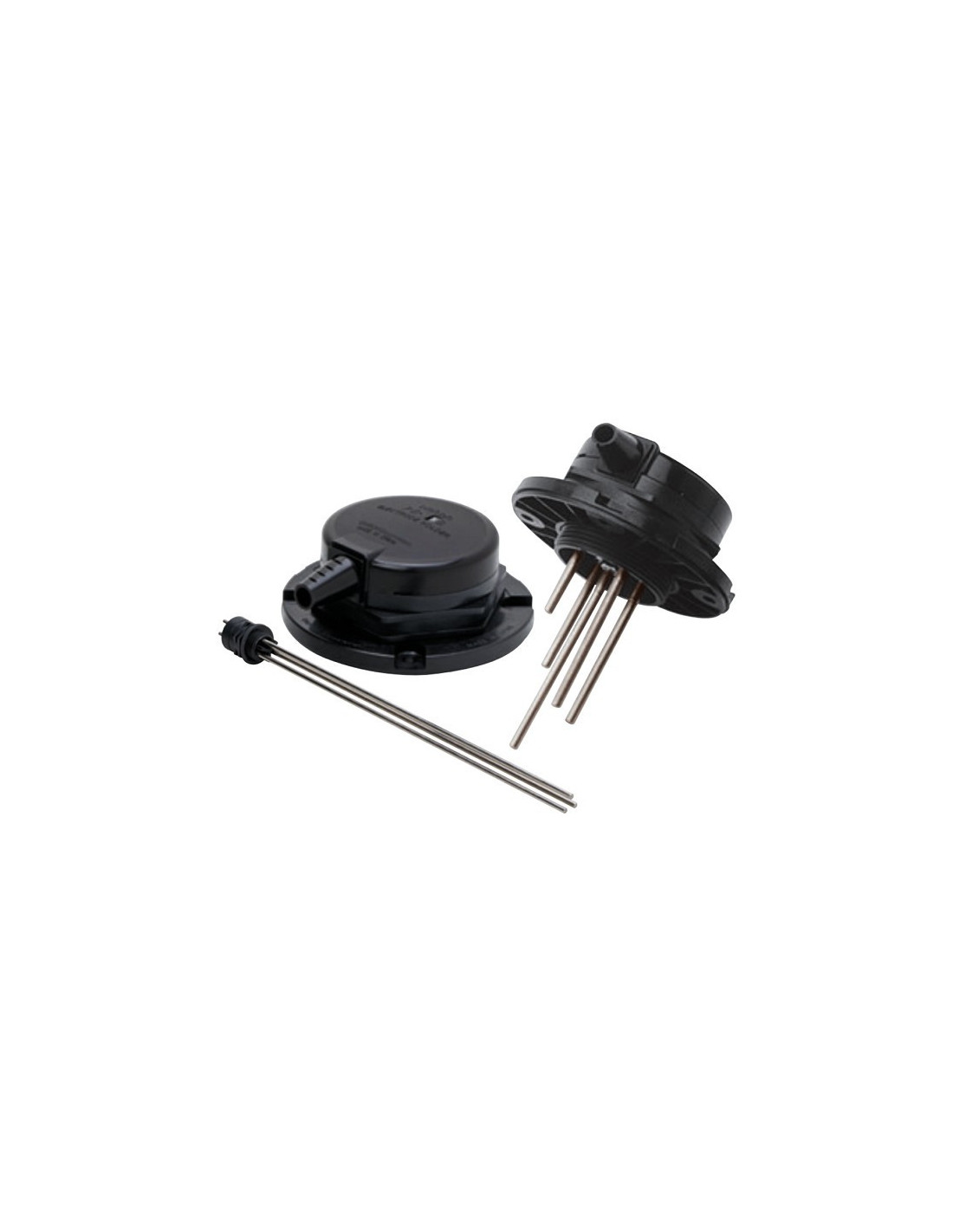

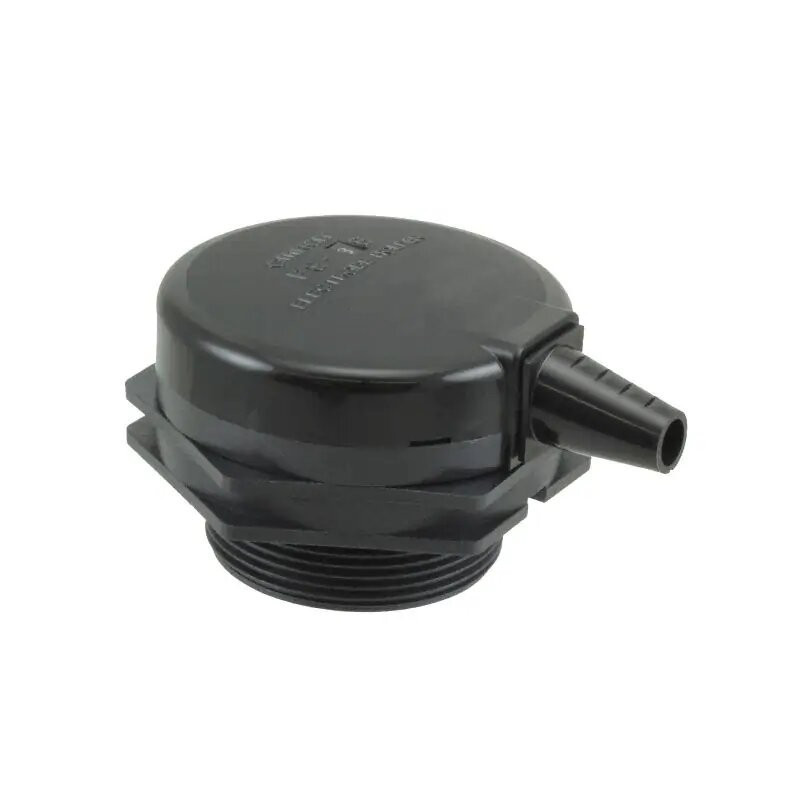

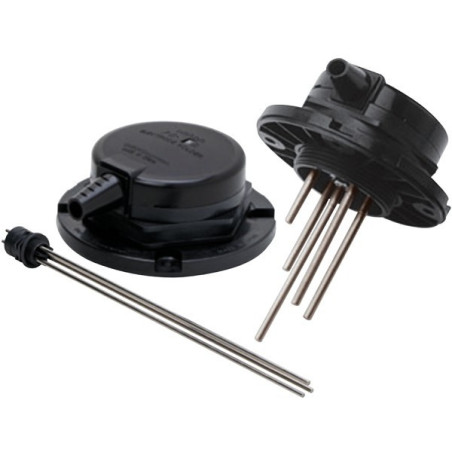

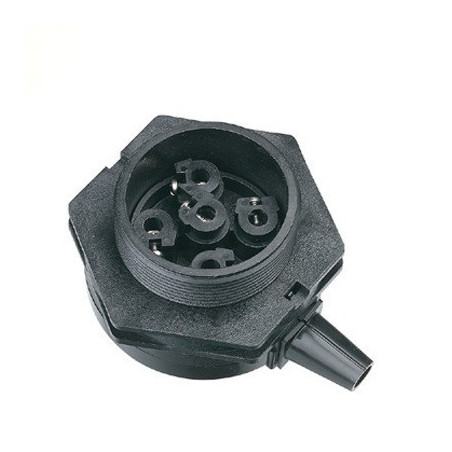

Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)
Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)
Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)
Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)
Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)
Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)

Omron PS-[]S Electrode Holder (PS-3S-AP, PS-4S, PS-5S)

PS-3S-AP
S$24.50

Separate Electrode Holders for Water Supply and Drainage Control in Buildings.

Number of poles

Description

• The PS-[]S(R) are separate Electrode Holders that allow the Electrodes to be withdrawn easily for inspection.

• The PS-[]S(R) come in 3, 4, or 5 pole models for supply and drainage of tap water in buildings.

ModelPS-3S(R) *1PS-4S(R) *1PS-5S(R) *1PS-31 *2
No. of Electrodes 3 4 5 3 *3
Material Resin (PBT = Polybutylene terephthalate)
Insulation resistance 100 MΩ min.
Operating temperature -10 to 70°C (with no icing)
Operating pressure Atmospheric pressure
Applications Water supply and drainage control in buildings Limited Mounting Space
Electrodes Purchase F03-01 separately. Single-piece construction

Note:
1. The Two-wire Electrode Holders (R models) have a built-in resistor of 6.8 kΩ. They should be used with the Two-wire 61F Controllers.
2. Cut the electrodes to the desired length.
3. PS-31 comes in a 3-pole model only.

Dimensions

PS-3S/-4S/-5S
PS-3SR/-4SR/-5SR
(see note)

PS-[]S(R) / -31 Dimensions 2

Note: The PS-3SR, PS-4SR, and PS-5SR have built-in resistor of 6.8 kΩ and used for the two-wire 61F models.
