Kacon J2 Ø22/25mm series pushbutton

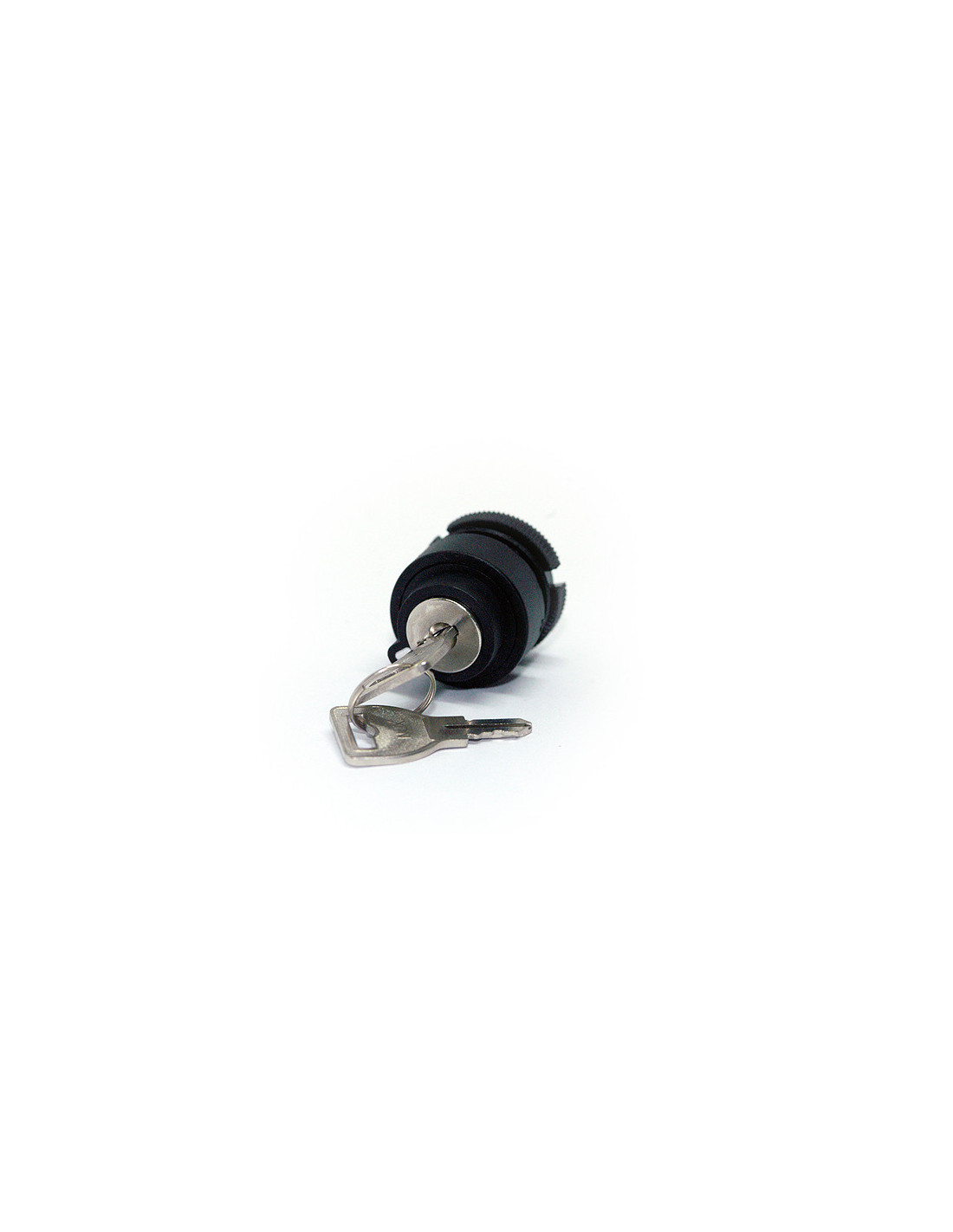

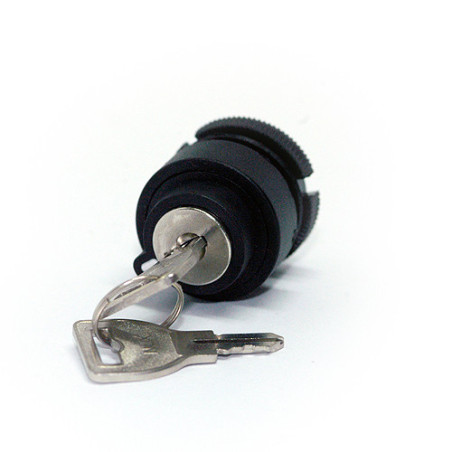

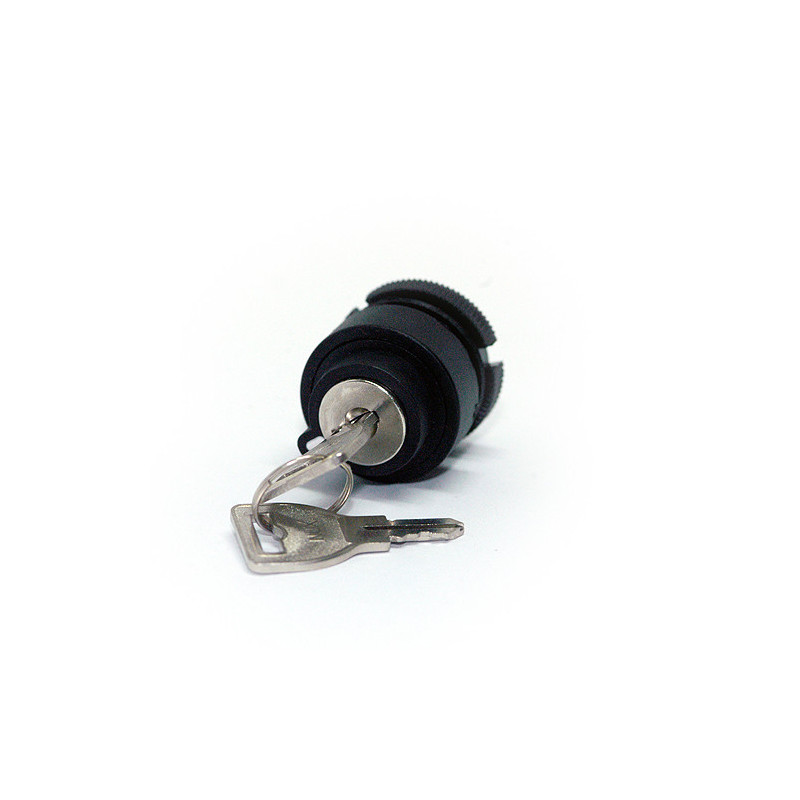

Key selector switch
■ Suffix code(ex: ARK-2RA + AR-110)
|
Model |
Code |
Content |
|
|
ARK- |
□ |
□ |
Key selector switch |
|
Operation funciton |
2 |
|
2 positions alternate operaiton |
|
2R |
|
2 positions momentary operation |
|
|
3 |
|
3 positions alternate operation |
|
|
3L |
|
3 positions left momentary opration |
|
|
3R |
|
3 positions right momentary opration |
|
|
3LR |
|
3 positions left/right momentray opration |
|
|
Key release position |
A |
Left |
|
|
B |
Right |
||
|
C |
Middle(Only 3 positons) |
||
|
D |
Left and Right |
||
|
E |
All direciton(Only 3 positions) |
||
|
Model |
Content |
||
|
AR- |
□ |
□ |

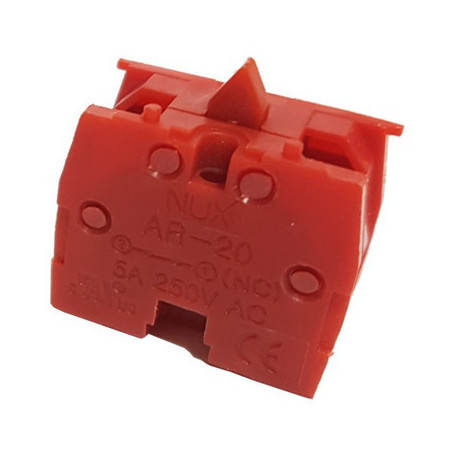

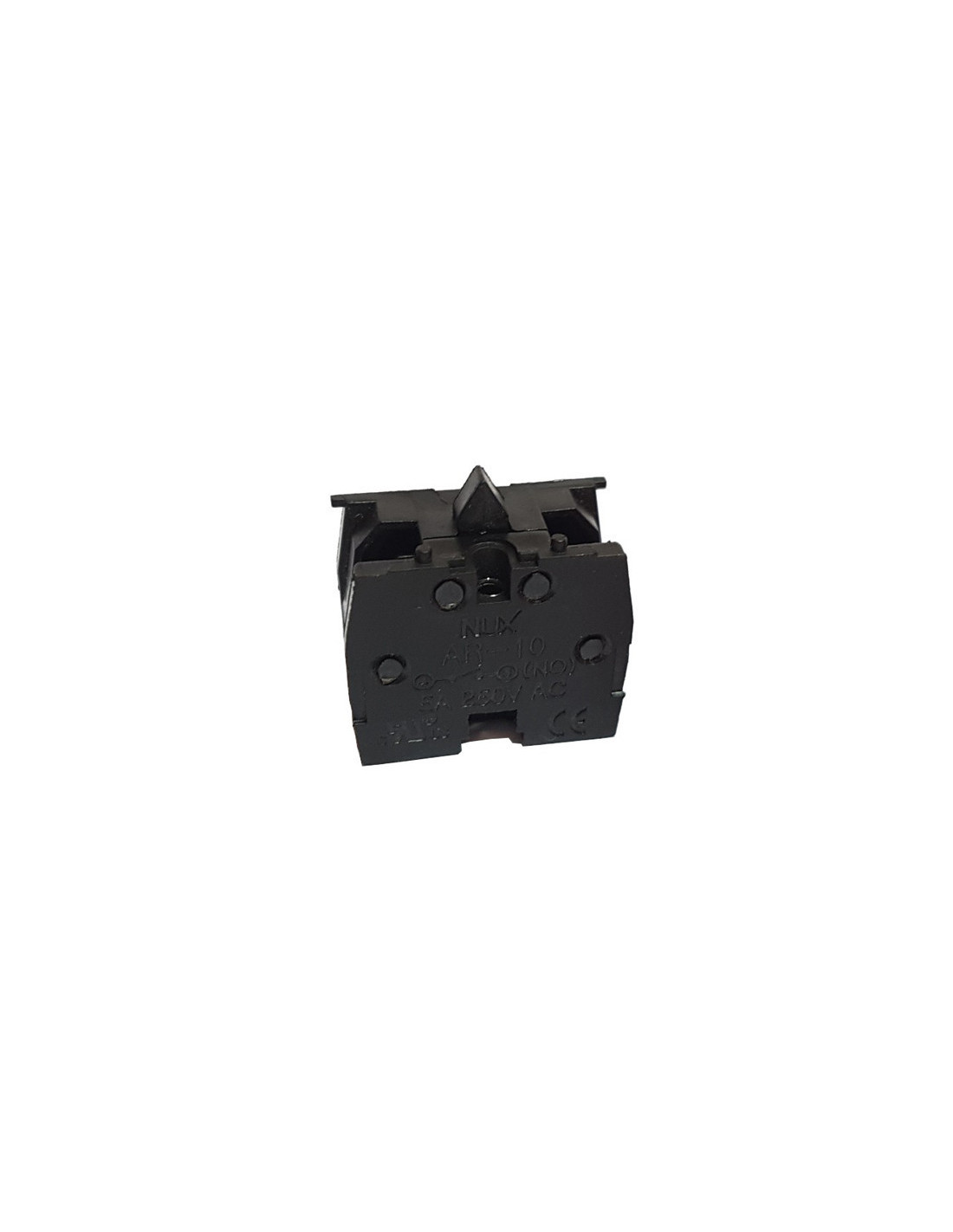

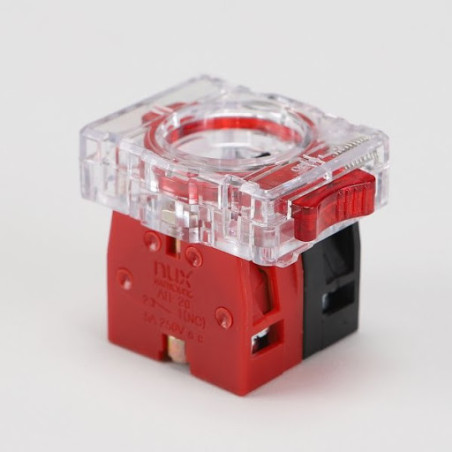

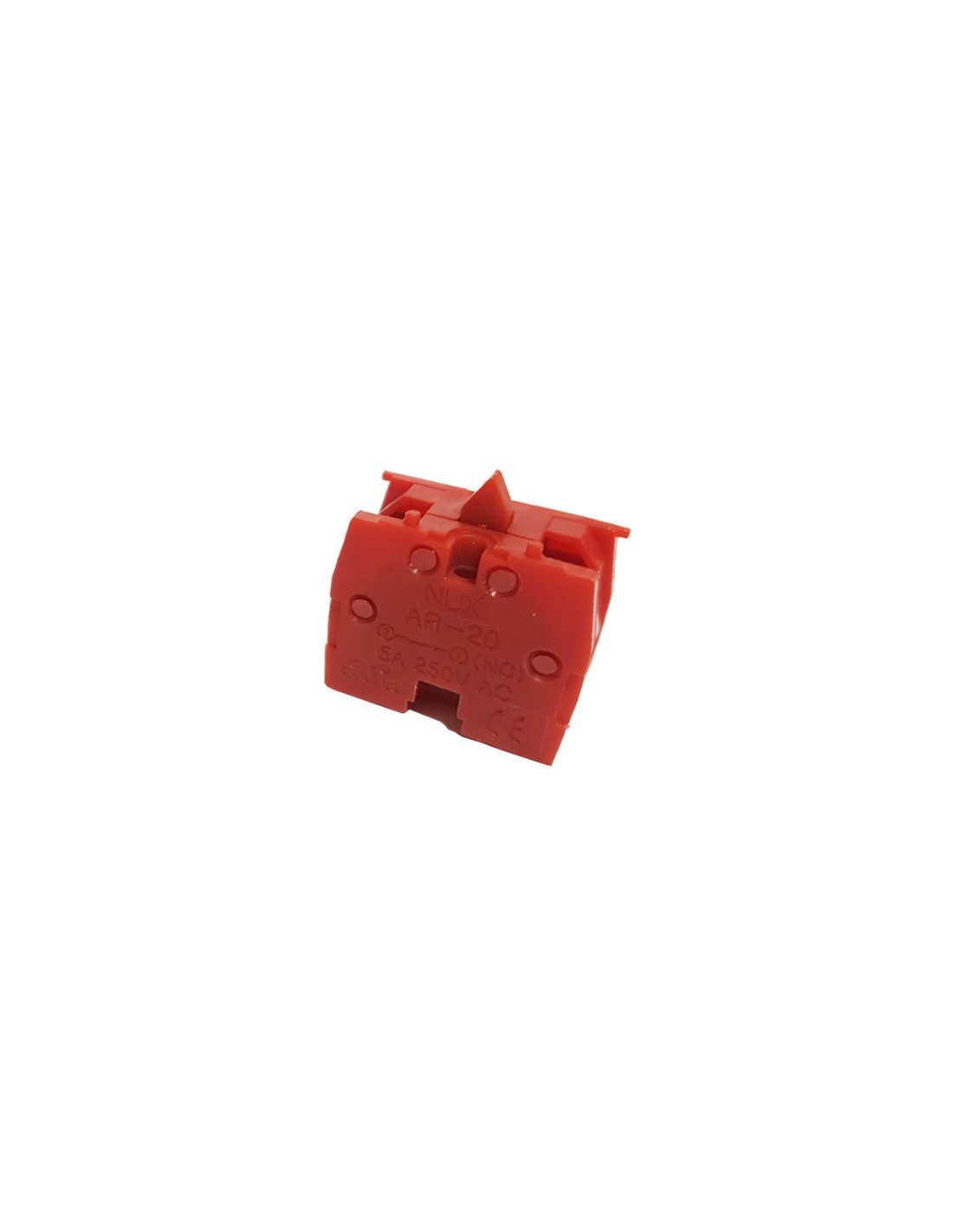

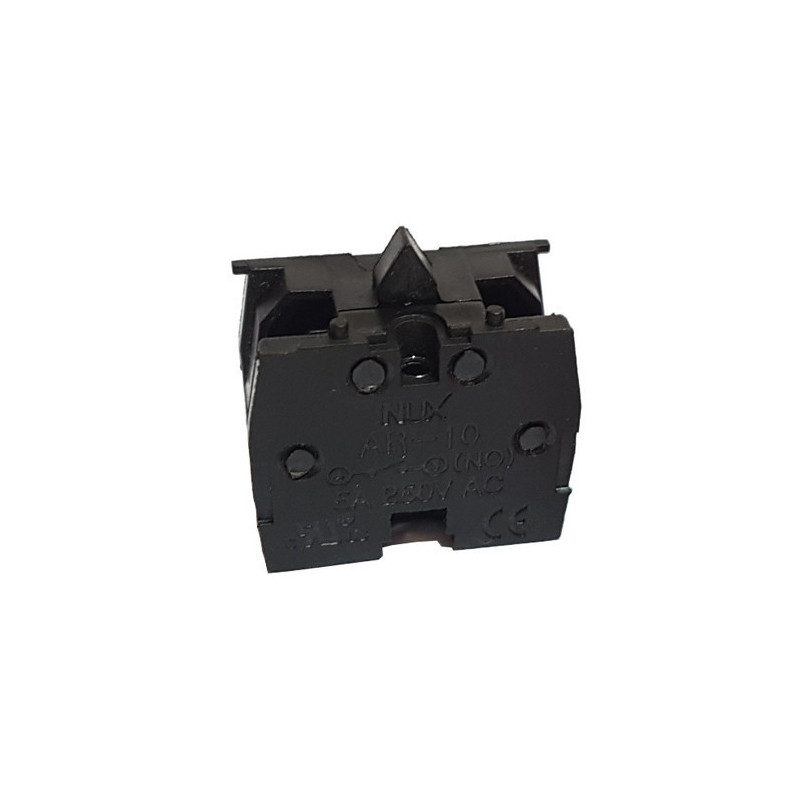

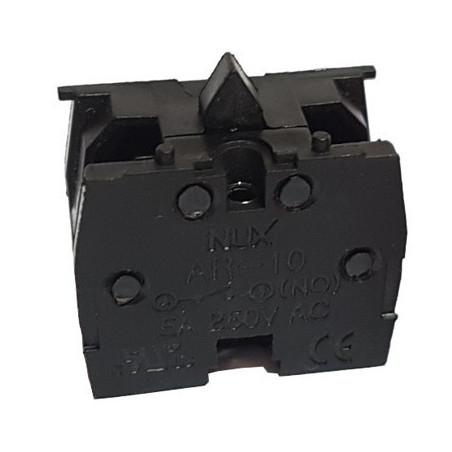

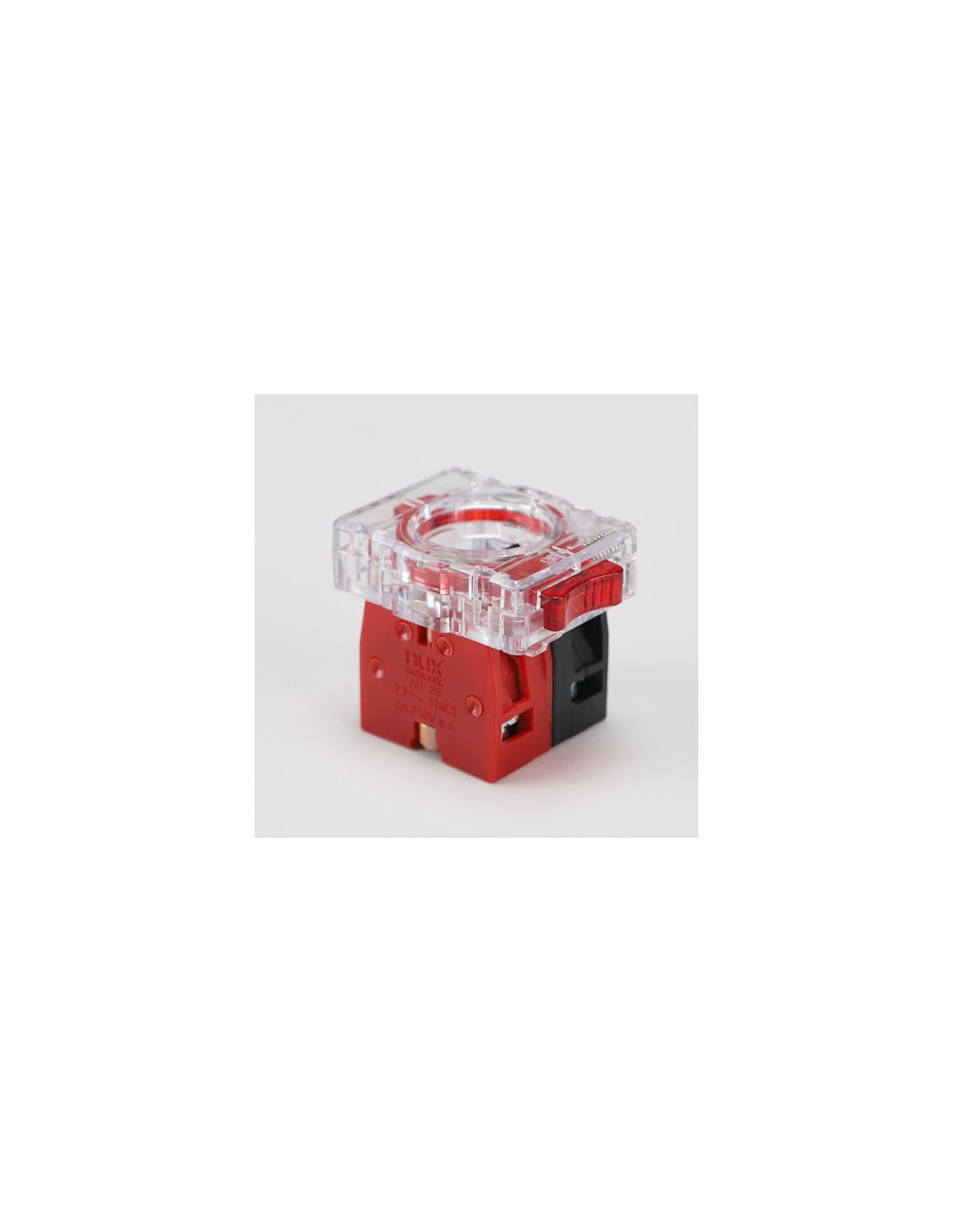

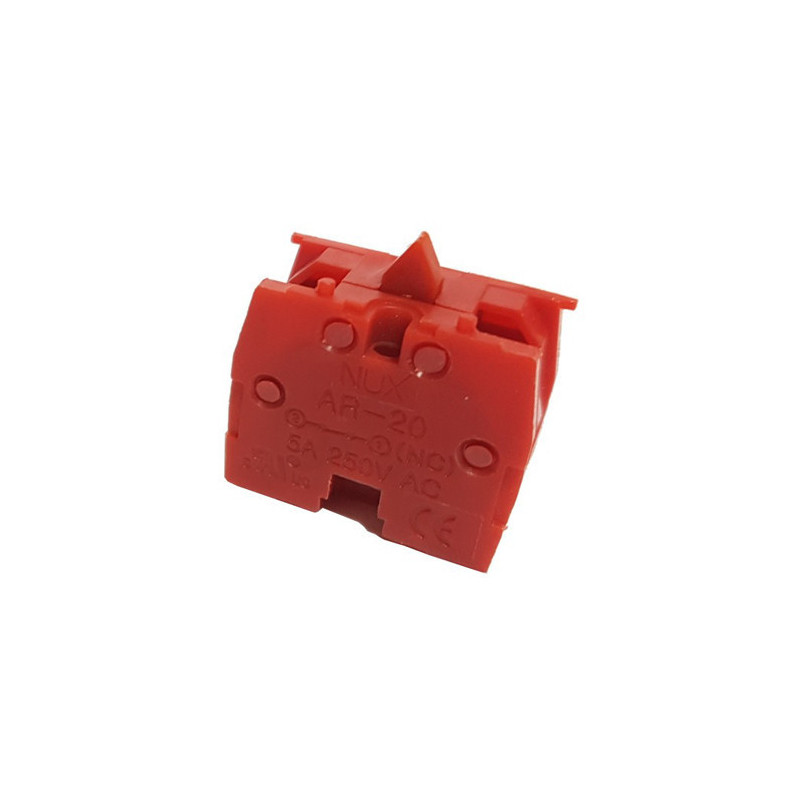

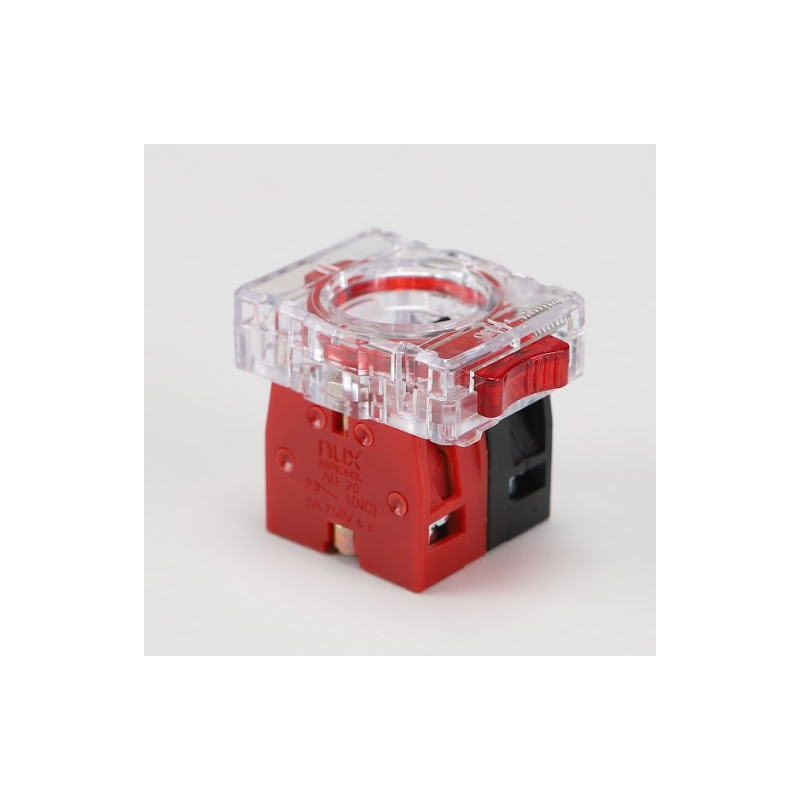

Key selector switch contact part |
|
Operation function |
1 |
|
Momentary |
|
Contact composition |
10 |
1a (1NO) |
|
|
20 |
1b (1NC) |
||
|
12 |
1a1b (1NO-1NC) |
||
|
11 |
2a (2NO) |
||
|
22 |
2b (2NC) |
||
