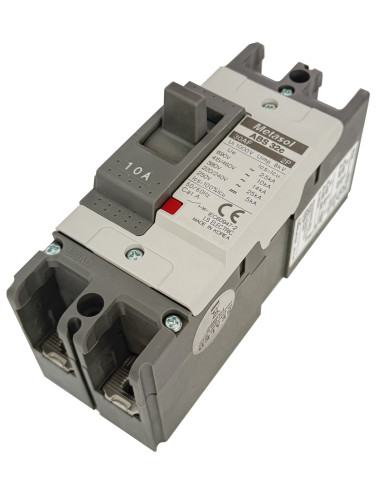

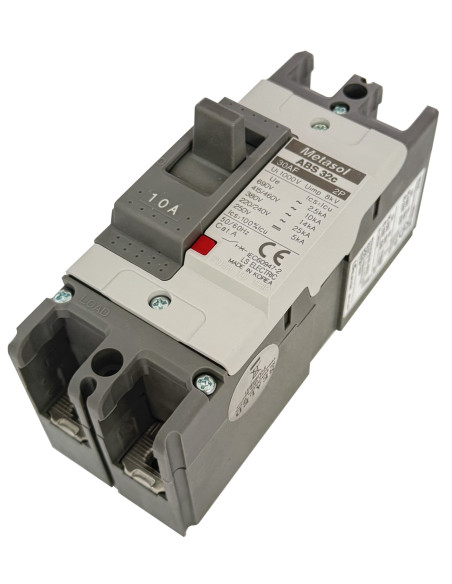

The Metasol Molded Case Circuit Breaker (MCCB) by LS Electric offers robust protection for low-voltage electrical systems, ranging from 3A to 1200A with a breaking capacity up to 85kA. Designed to meet global standards such as IEC 60947-1 and IEC 60947-2, it ensures reliable performance in both AC and DC circuits. The MCCB features a fixed thermal-magnetic trip unit, supports 2P, 3P, and 4P configurations, and is compatible with various accessories for enhanced functionality. Its compact design, with dimensions like 105mm width and 165mm height, allows for easy integration into control panels. Suitable for diverse applications, the Metasol MCCB is CE, CCC, and EAC certified, making it a versatile choice for industrial and commercial power distribution needs.
Model Breaking Current
| Type | 30AF | 50AF | 60AF | 100AF | 125AF | 250AF | 400AF | 800AF | 1000AF | 1200AF |
|---|---|---|---|---|---|---|---|---|---|---|
| ABN | - | ABN5_c 14kA | ABN6_c 14kA | ABN100c 18kA | - | ABN250c 26kA | ABN400c 37kA | ABN800c 37kA | - | - |
| ABN100d 26kA | ||||||||||
| ABN100e 31kA | ||||||||||
| ABS | ABS3_c 14kA | ABS5_c 18kA | ABS6_c 18kA | - | ABS125c 37kA | ABS250c 37kA | ABS400c 50kA | ABS800c 65kA | ABS1000c 65kA | ABS1200c 65kA |
| ABH | - | ABH5_c 50kA | - | - | ABH125c 50kA | ABH250c 50kA | ABH400c 65kA | - | - | - |
| ABL | - | - | - | - | ABL125c 60kA | ABL250c 60kA | ABL400c 85kA | ABL800c 85kA | ABL1000c 85kA | ABL1200c 85kA |
