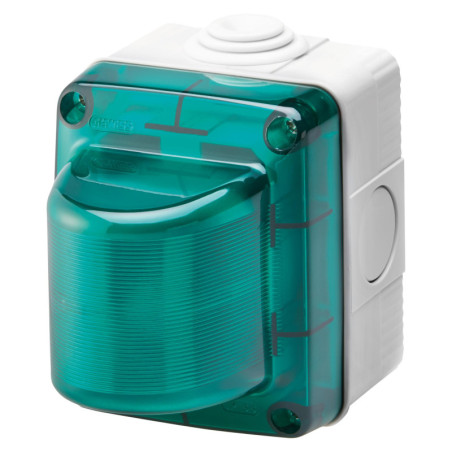

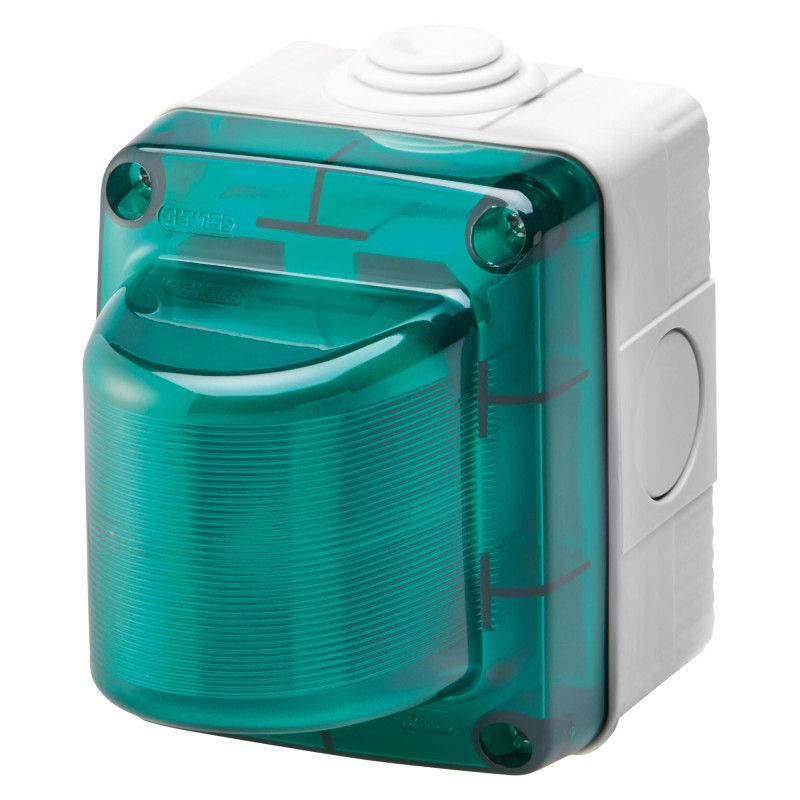

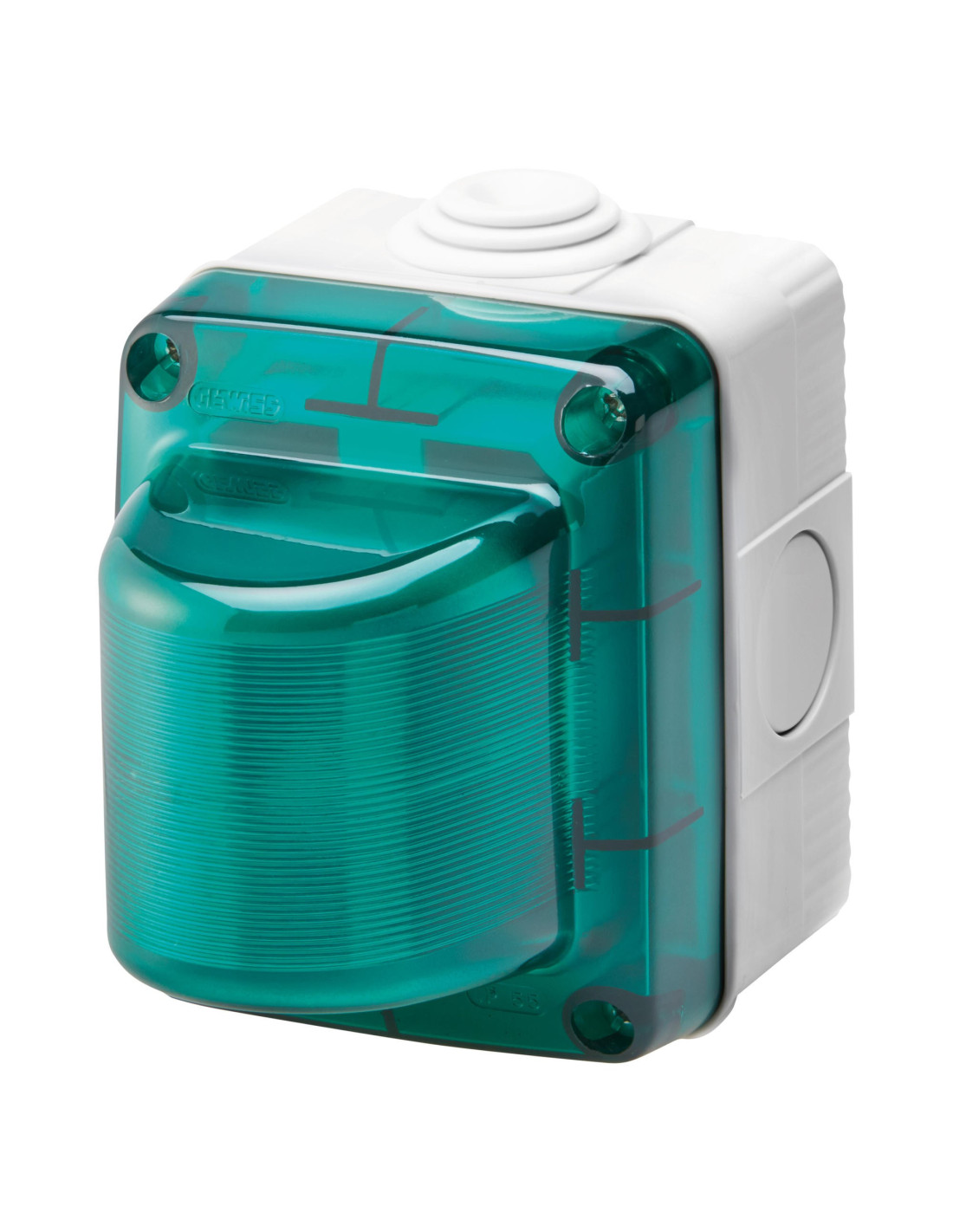

Gewiss Indicator Lamp
Gewiss Indicator Lamp

Gewiss Indicator Lamp

Last items in stock
S$30.80

Indicator Lamps, IP55, Grey RAL 7035, Max 15W

Voltage supply
Color
  • Red
  • Amber
  • Blue
  • Green
  • White

Description

Dimensions

TECHNICAL DATA

  • Colour
  • Grey RAL 7035

  • No. knockout holes Ø23
  • 3 on sides / 1 on the bottom

  • N. holes Ø 23 with cable gland
  • 1

  • Type of knockout holes
  • Removable with tool

  • IP degree
  • IP55

  • Insulation class
  • II

  • Lid screws
  • Stainless steel

  • Torque screws tightening
  • 0.8 Newton/meter

  • Outer dim. LxHxD (mm)
  • 66x82x95

  • Diffuser colour
  • Blue, Red, Yellow, Green, Transparent

  • Lampholder type
  • E14

  • Power
  • Max 15W

  • Rated voltage
  • 230VAC, 110VAC, 12VDC, 24VDC

  • Glow Wire Test
  • 650 °C

  • Thermo-pressure with ball
  • 70 °C

  • Standard
  • EN 60598-1

  • Installation temperature
  • -25 +60 °C

  • Electrocod
  • 0132

\



Product Details
