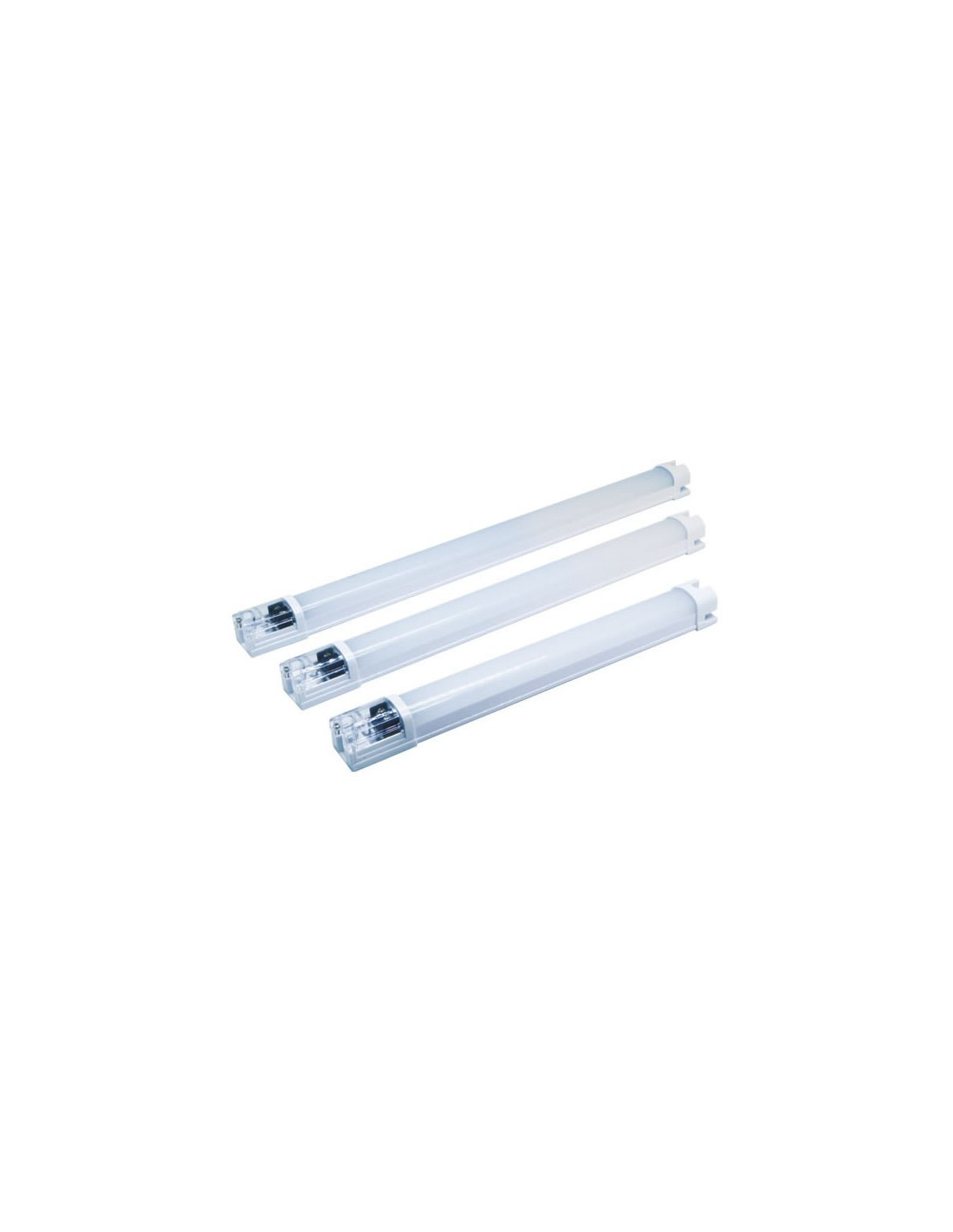

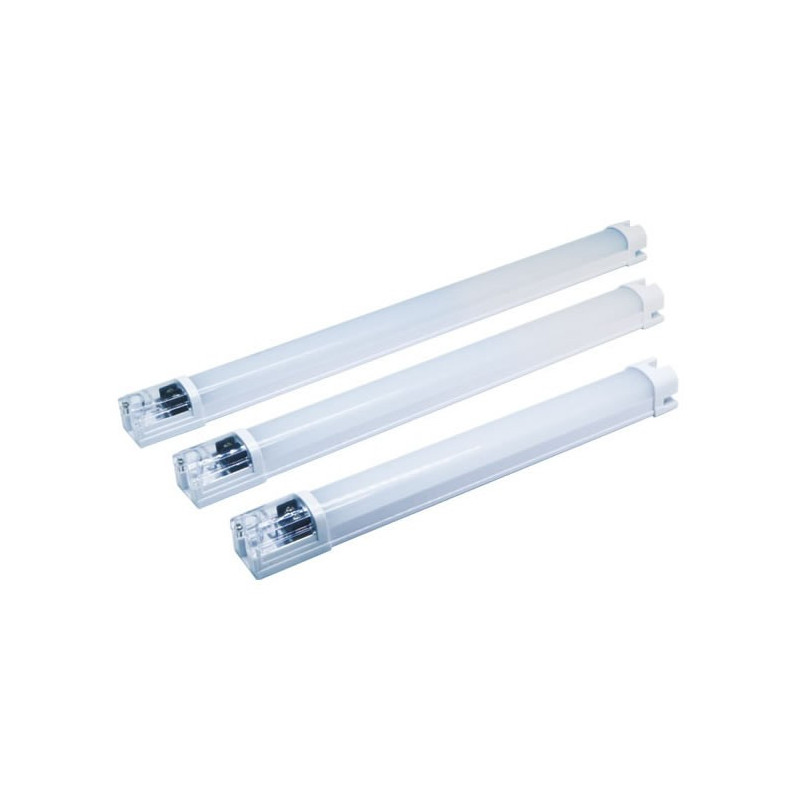

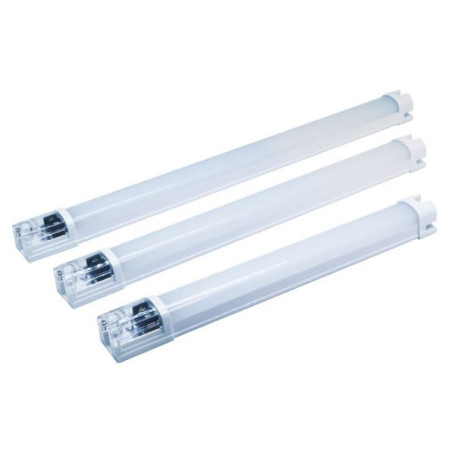

KCL-L LED panel lighting
For lighting in control panels and CNC machines
Specifications
| Optical characteristic | KCL-L250 | KCL-L330 | KCL-L400 | ||
|---|---|---|---|---|---|
| Brightness at 1M (Lux) | 150 | 200 | 280 | ||
| Lens | Translucent | ||||
| LED Color | Daylight color(6,500k) | ||||
| General Ratings | Rated Voltage | 12~24VDC 100~240VAC 50/60Hz |
|||
| Current consumption · power |
12VDC | 410mA / 5.0W | 550mA / 6.7W | 660mA / 8.0W | |
| 24VDC | 205mA / 5.0W | 275mA / 6.7W | 330mA / 8.0W | ||
| 100VAC | 47mA / 4.6W | 63mA / 6.1W | 76mA / 7.4W | ||
| 240VAC | 21mA / 4.6W | 29mA / 6.1W | 35mA / 7.4W | ||
| Insulation Resistance | Min. 100MΩ (500V MΩ Measuring instrument) | ||||
| Dielectric Strength | 2,000VAC 1 minute | ||||
| Ambient Temperature | -20 ~ 70°C | ||||
| Degree of Protection | None | ||||
| Material | Front : Diffusion PC | ||||
| Back : PC(Polycarbonate) | |||||
| Side cover : PC(Polycarbonate) | |||||
| Safety Cover for Terminal Block : PC(Polycarbonate) | |||||
| Bracket : SUS | |||||
| Certification | CE, KC | ||||
| Weight | Approx. 120g | Approx. 144g | Approx. 162g | ||
| Terminal | M3.5 Bolt | 0.8Nm(8.16kgf·cm) | |||
| LED life expectancy | 50,000 hours | ||||
Mounting Bracket
Dimensions
