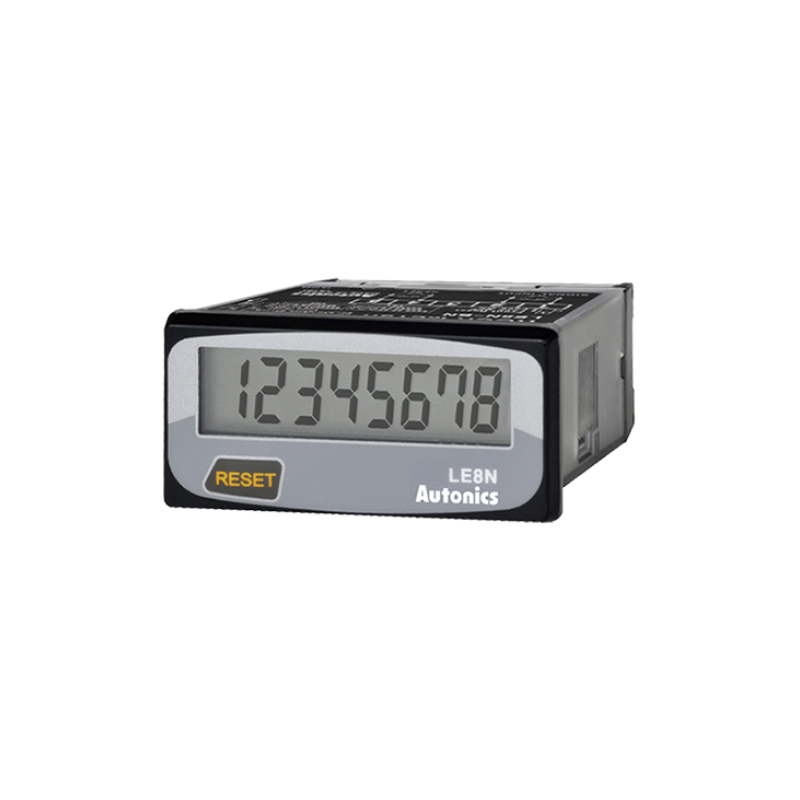

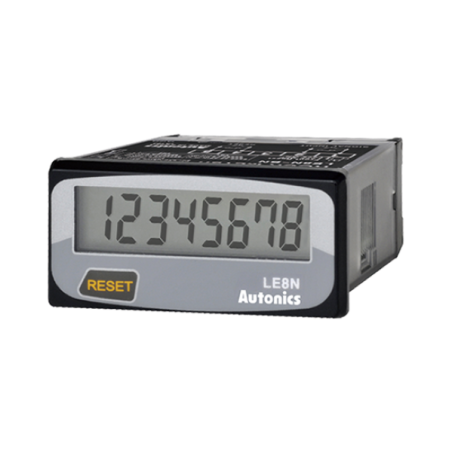

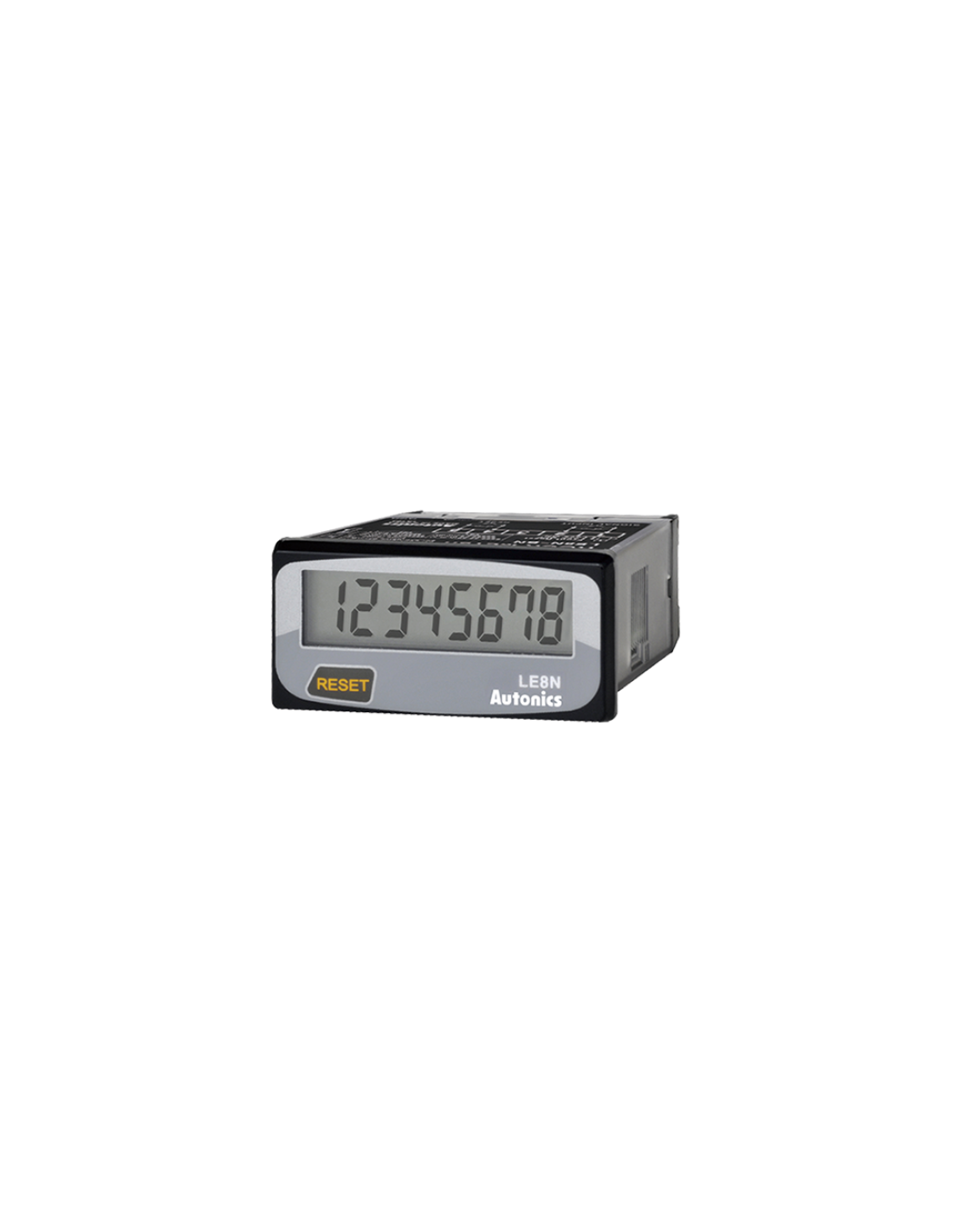

Autonics LE8N-BF hour meter

Autonics LE8N-BF hour meter

Autonics LE8N-BF hour meter

Last items in stock
S$59.00

Hour Meter, 8 digits LCD, 1/32 DIN, Built-in Battery power, Selectable front reset key, Voltage ...

Data sheet

Display method 8-digit 7-segment LCD
Operation method Count up
Time operation POWER ON START
Terminal Terminal block
Power supply Built-in battery(over 10 years)
Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
Input Method_Signal Free voltage input
Input Method_Reset No-voltage input(NPN)
Control output Indicator
Protection structure IP66(front panel)
Approval CE.svg CULUS.svg
Min. signal Width SIGNAL, RESET input: Approx. 20ms
External set switch SW1, SW2, SW3
Accessories Mounting bracket, Rubber waterproof ring
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH
Weight Approx. 96g (approx. 50g)
Timer
Type LCD
Digit 8 digits
Dimensions 48 x 24 mm
Power supply Built-in battery
Input Type Free voltage input
