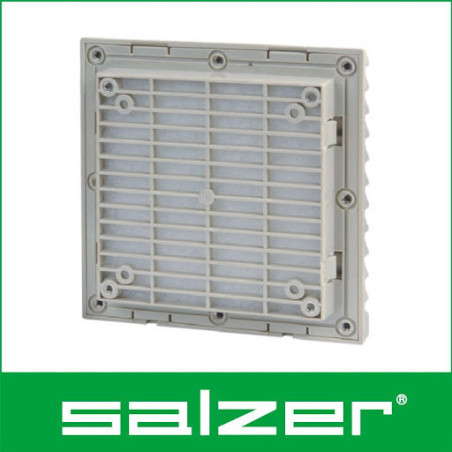

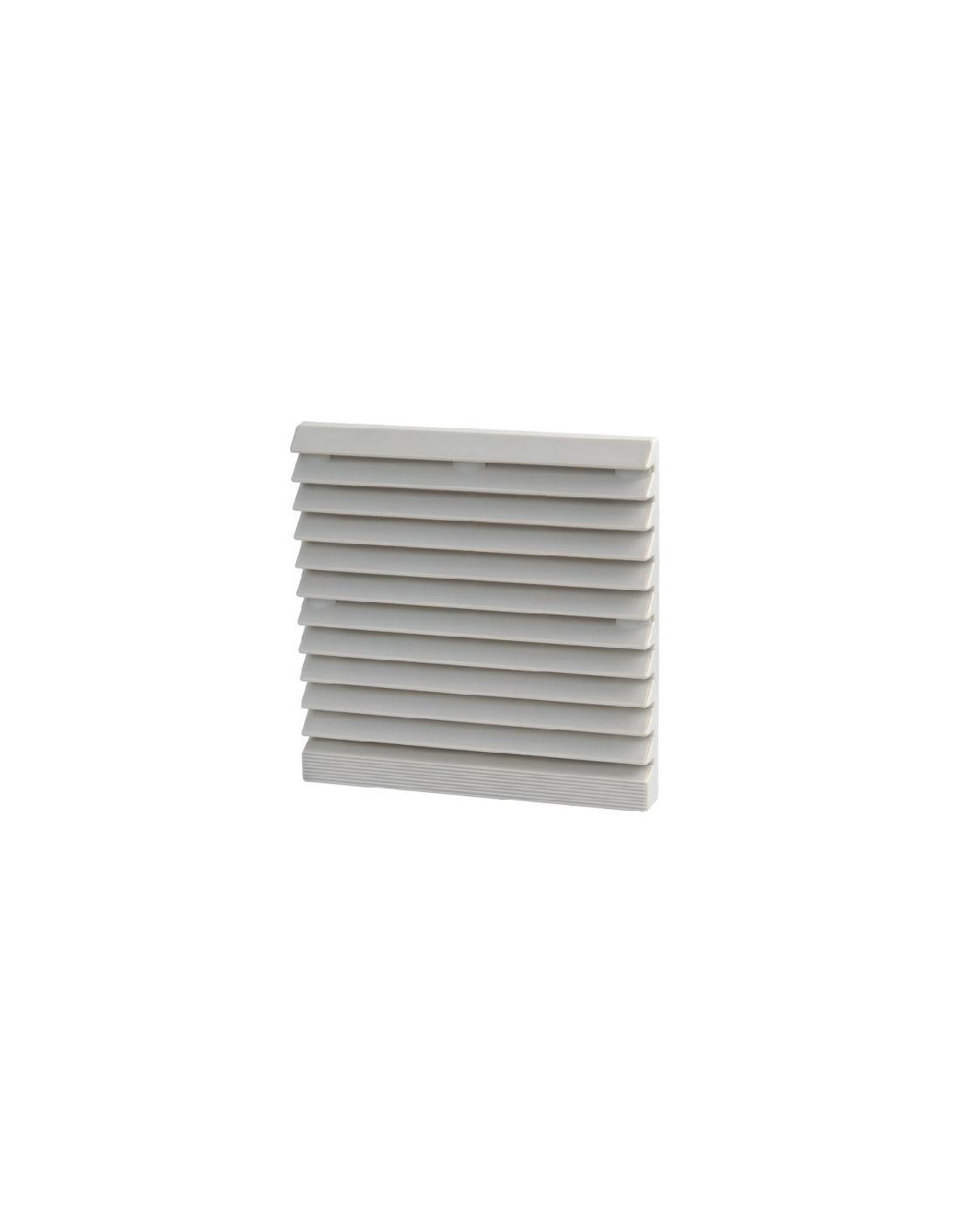

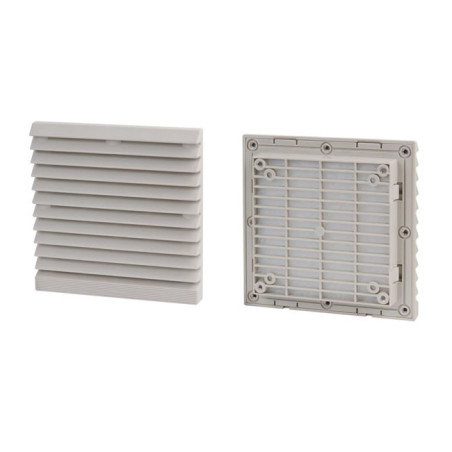

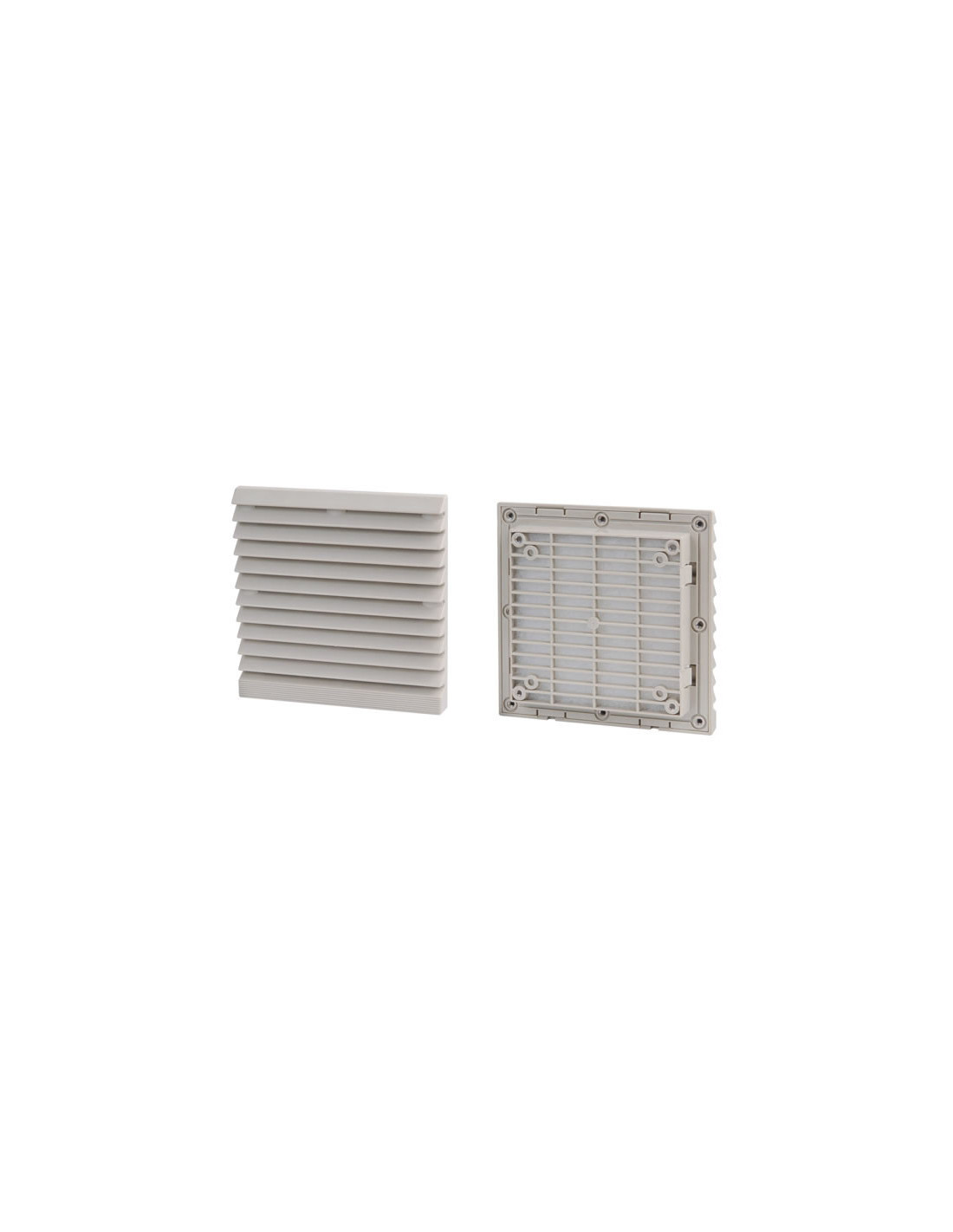

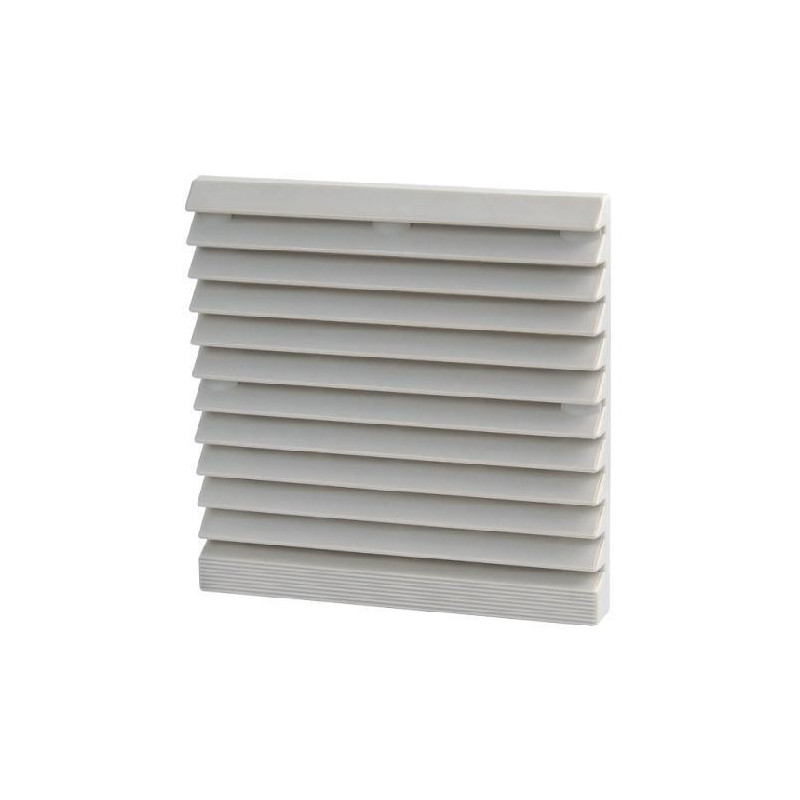

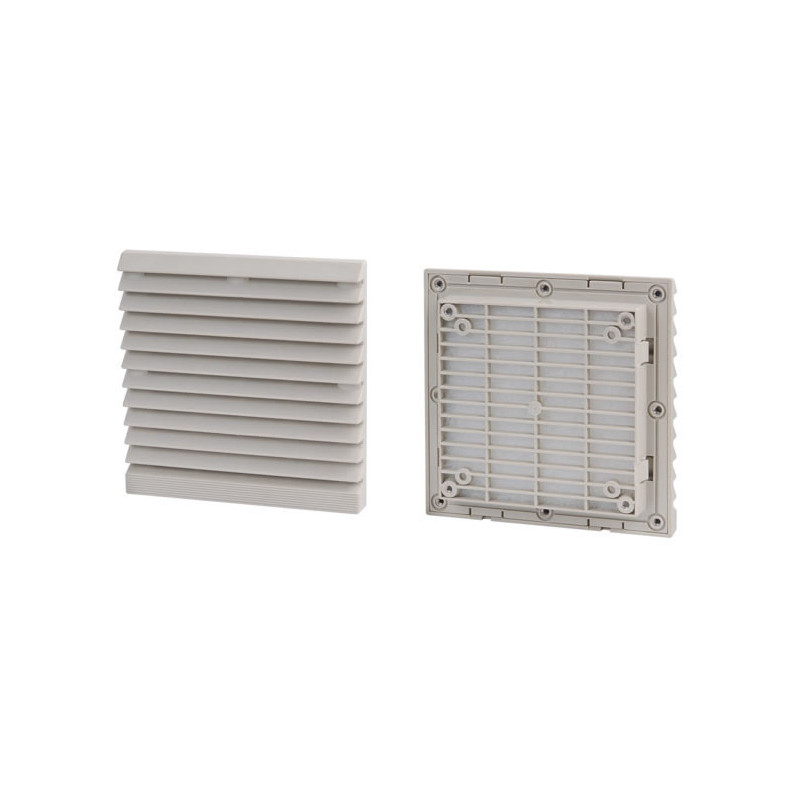

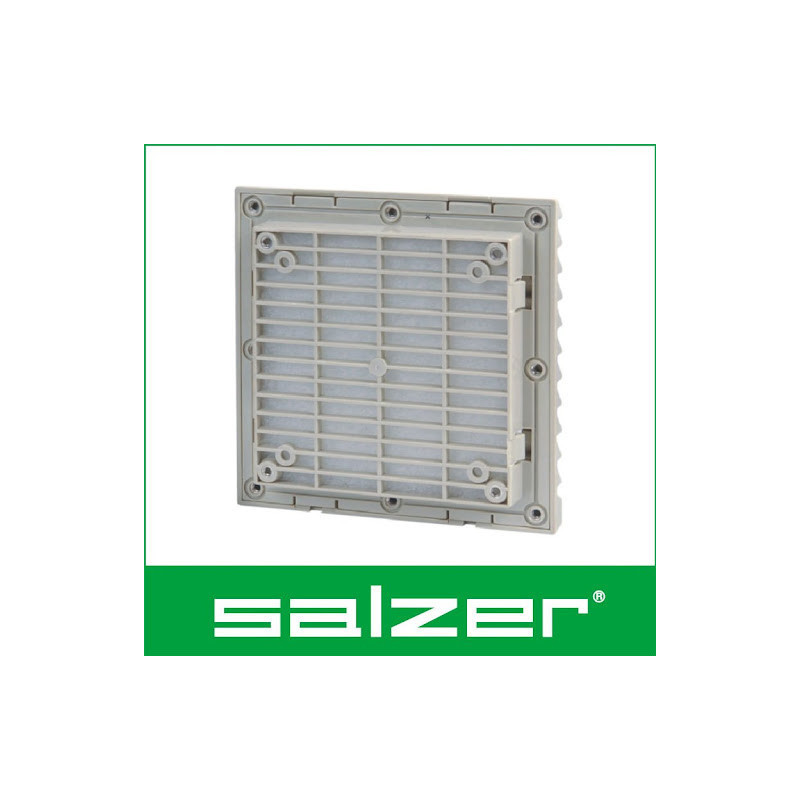

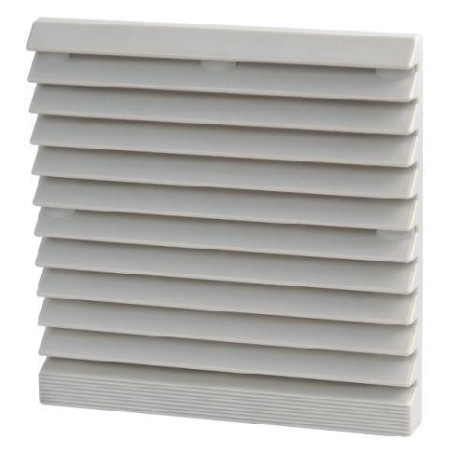

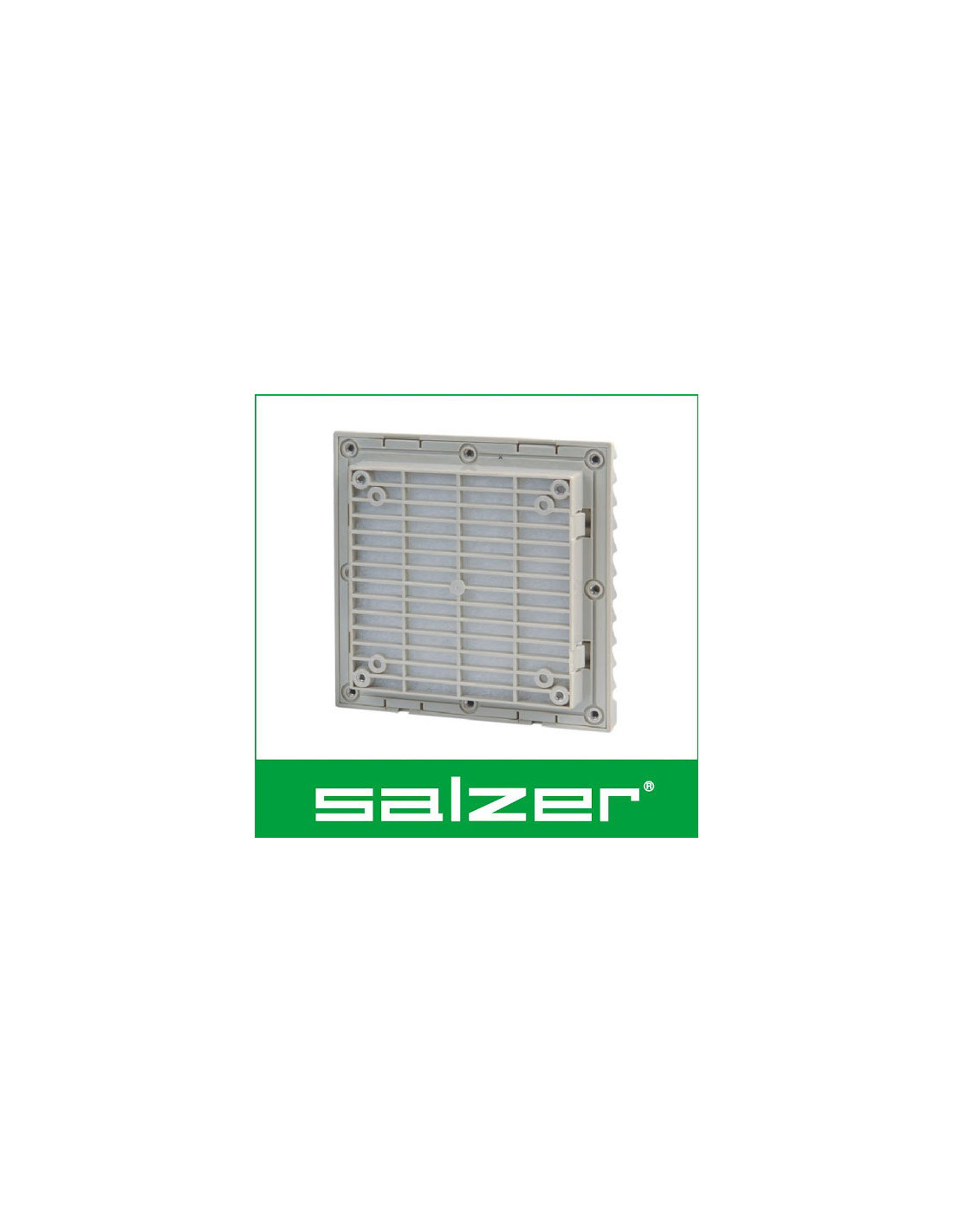

Material: The fan dust filter adopts ABS resin for shell to improve its resistance to flame and ultraviolet ray. In addition, it adopts imported nylon fiber synthetic resin for filter gauze to achieve high filtration efficiency AFI 80%.
Exquisite design: The elegant shell is of ultra-thin design. The ventilator is designed at a 45-degree angle so as to obtain optimum ventilation, waterproof and dustproof effect. The use of a sealing washer at the rear end of the filter gauze further improves product's water-proof performance.
Performance: The fan dust filter ensures great heat dissipation of the controller and precision electronic parts, resulting in longer service life and reduced failure rate.
| Model | Dimension (mm) | Installation (mm) | Effective wind rate | Temperature range | Material | Protection degree | For fan size (mm) |
| ZL-801 | 106X106 | 81X81 | 20-25.0m3/h | -10℃～+55℃ | ABS resin | IP54 | 80X80 |
| ZL-802 | 116X116 | 91X91 | 20-25.0m3/h | -10℃～+55℃ | ABS resin | IP54 |
92X92 |
| ZL-803 | 148.5X148.5 | 122X122 | 20-25.0m3/h | -10 ℃ ～ +55℃ | ABS resin | IP54 |
120X120 |
| ZL-804 | 204X204 | 175X175 | 20-50.0m3/h | -10 ℃ ～ +55℃ | ABS resin | IP54 |
120X120, 150X150, 150X172, Φ172X51 |
