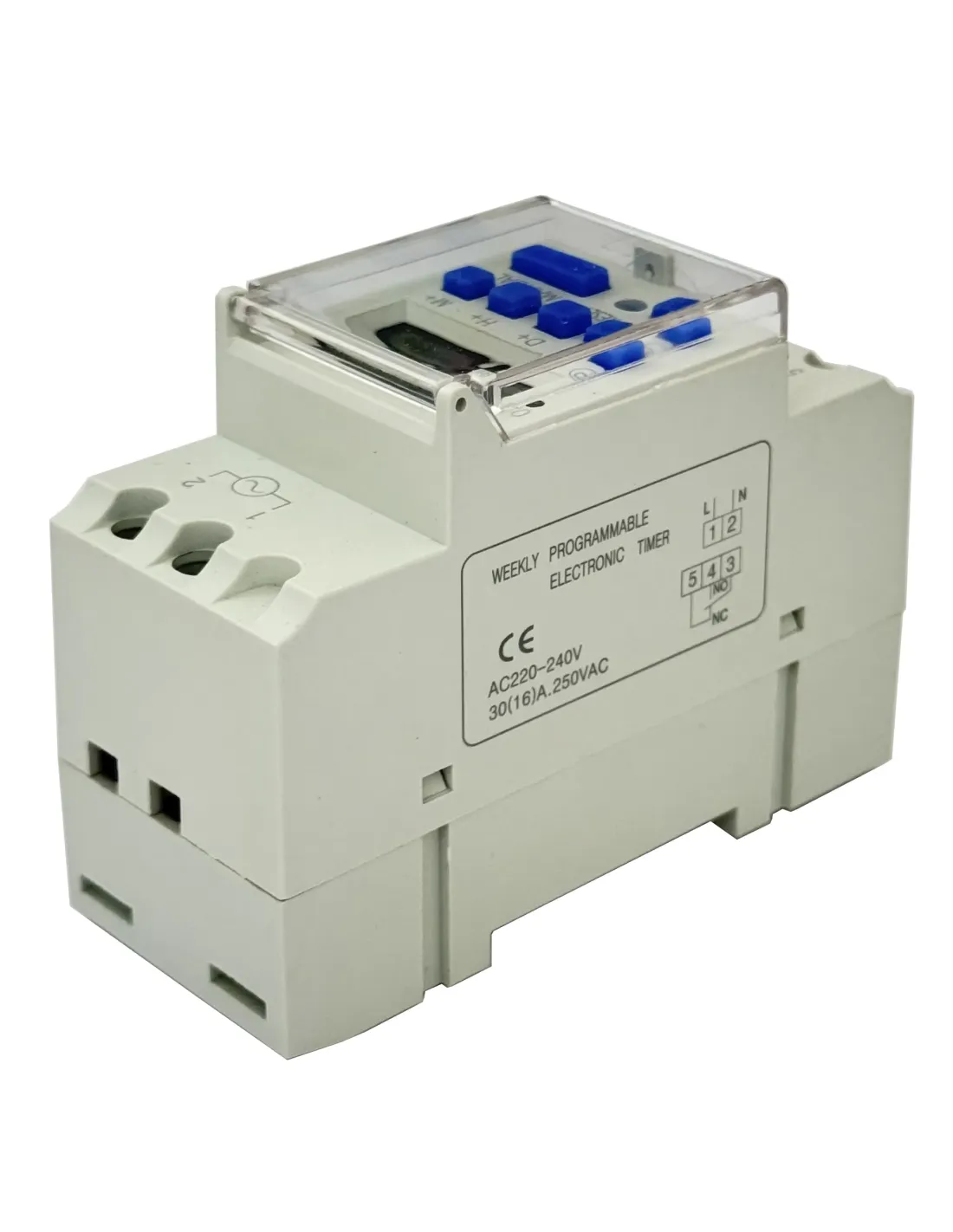

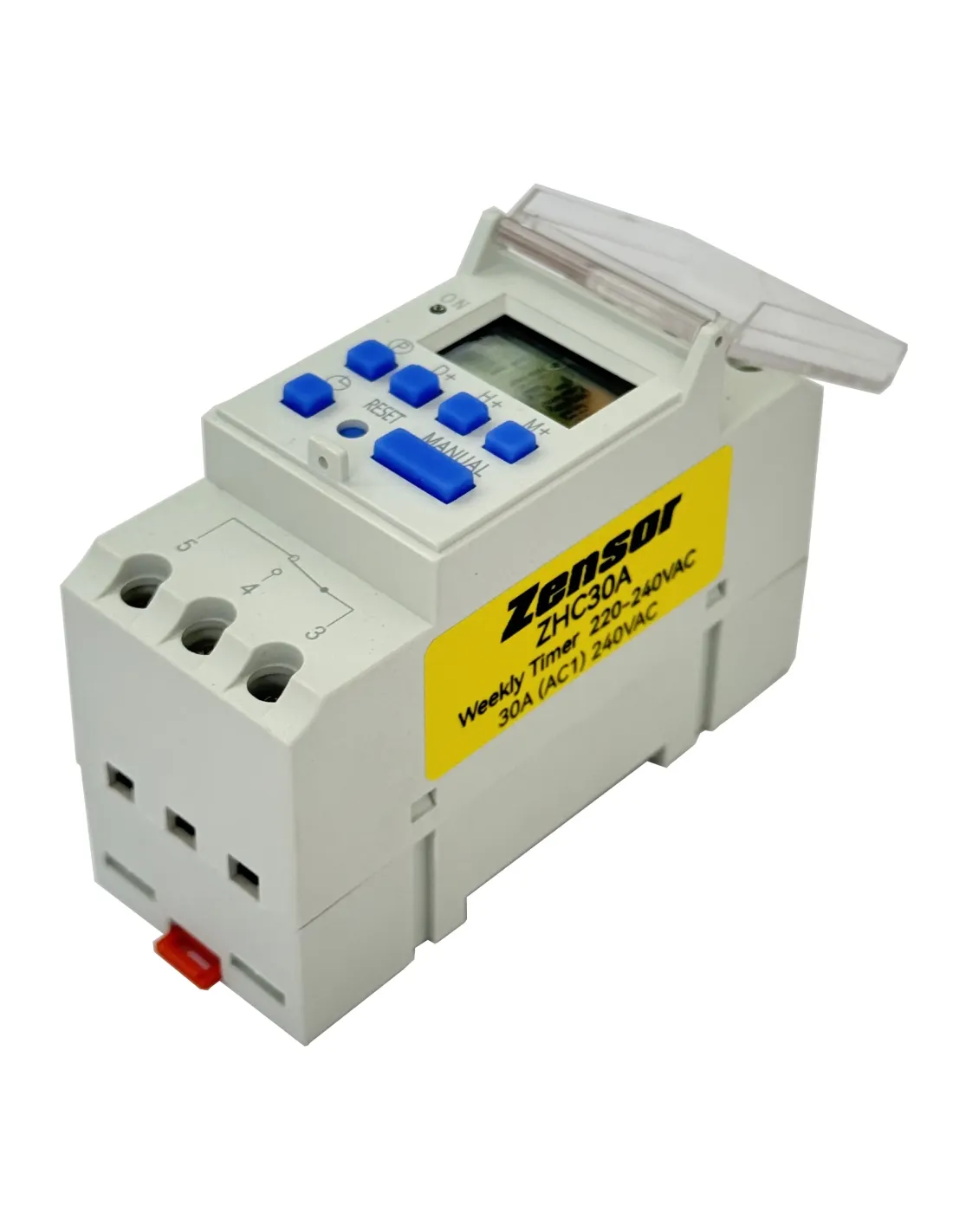

Zensor SUL180A 24 Hour Timer Relay
Zensor ZHC15A is a weekly/7 day programmable time switch. It comes in DIN rail mounting housing for ease of installation. The timer has multiple output configurations that will suit most control applications. It allows up to 16 configurable on/off settings. Relay can be configured to output pulse or for a specific time duration. It can also be used as a countdown timer should one needs it occasionally.
Specifications
Power Source
12V, 24V, 110VAC, 230VAC, 24...240V AC/DC
Operating Conditions
-10...40°C, 5-85% RH (non-condensing)
Relay Output
SPDT: 30A 230VAC resistive load
Mechanical Life
107 cycles
Cyclic Error
± 20S per month
Number of Programs
16, 18 (pulse output)
Minimum Time Interval
1 minute
Pulse Width
1 sec to 59 min 59 sec
Countdown Time Range
1 sec to 99 min 59 sec
Memory Backup
3 years (replaceable battery)
Power Consumption
8VA
Dimensions
