Autonics LE4SA Timer

Autonics LE4SA Timer

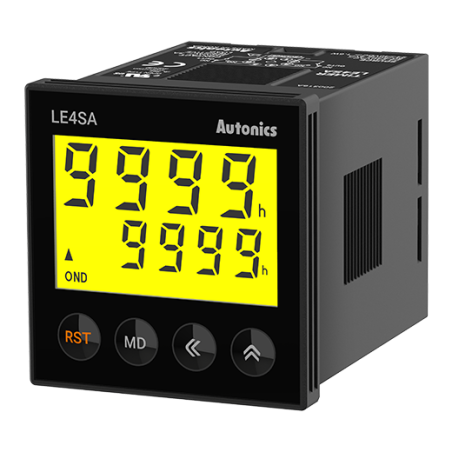

Autonics LE4SA digital timer controller

LE4SA
Last items in stock
S$120.00

The LE4S series digital timers feature LCD Backlight display with compact, space-saving design. The timers also feature various output operation modes as well as configurable time setting range and one-shot output time for diverse applications. Users can configure set value and time range independently in flicker, flicker I, ON-OFF delay, and ON-OFF delay I modes.

LE4SA

Display method

4-digit 7-segment LCD

Operation method

Count up, Count down

Output operation

ON DELAY, INTERVAL, FLICKER, STAR-DELTA, TWIN

Time operation

POWER ON START

Terminal

8-pin plug

Power Supply

24-240VAC~, 24-240VDC

Setting range

0.01s to 9.999s, 0.01s to 99.99 sec, 0.1sto 999.9s, 1s to 9999s, 1s to 99m 59s, 0.1m to 999.9m, 1m to 9999m, 0h 1m to 99h 59m, 0.01h to 99.99h, 0.1h to 999.9h, 1h to 9999h

Control output relay

Time-limit SPDT (1c): 2 or Time-limit SPDT (1c): 1 + Instantaneous SPDT (1c): 1 depending on output operation mode

Backlight

Yes

Accessories included

Bracket

Environment temperature

-10 to 55C, storage: -25 to 65C

Environment humidity

35 to 85% RH (non-condensing)

Mass

98g
