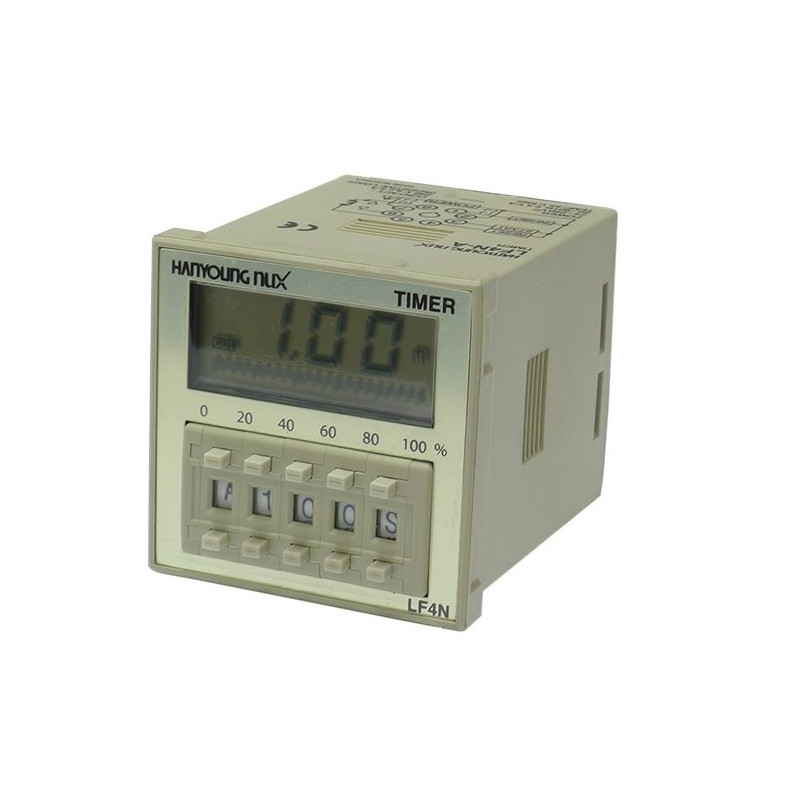

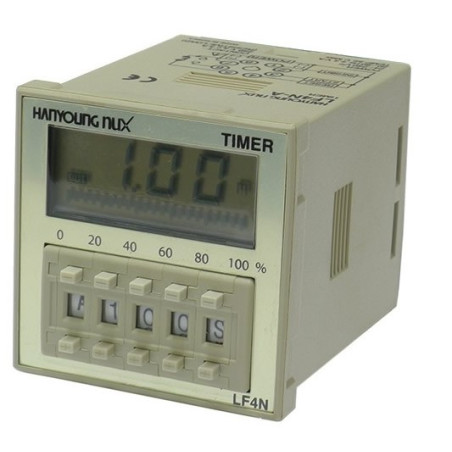

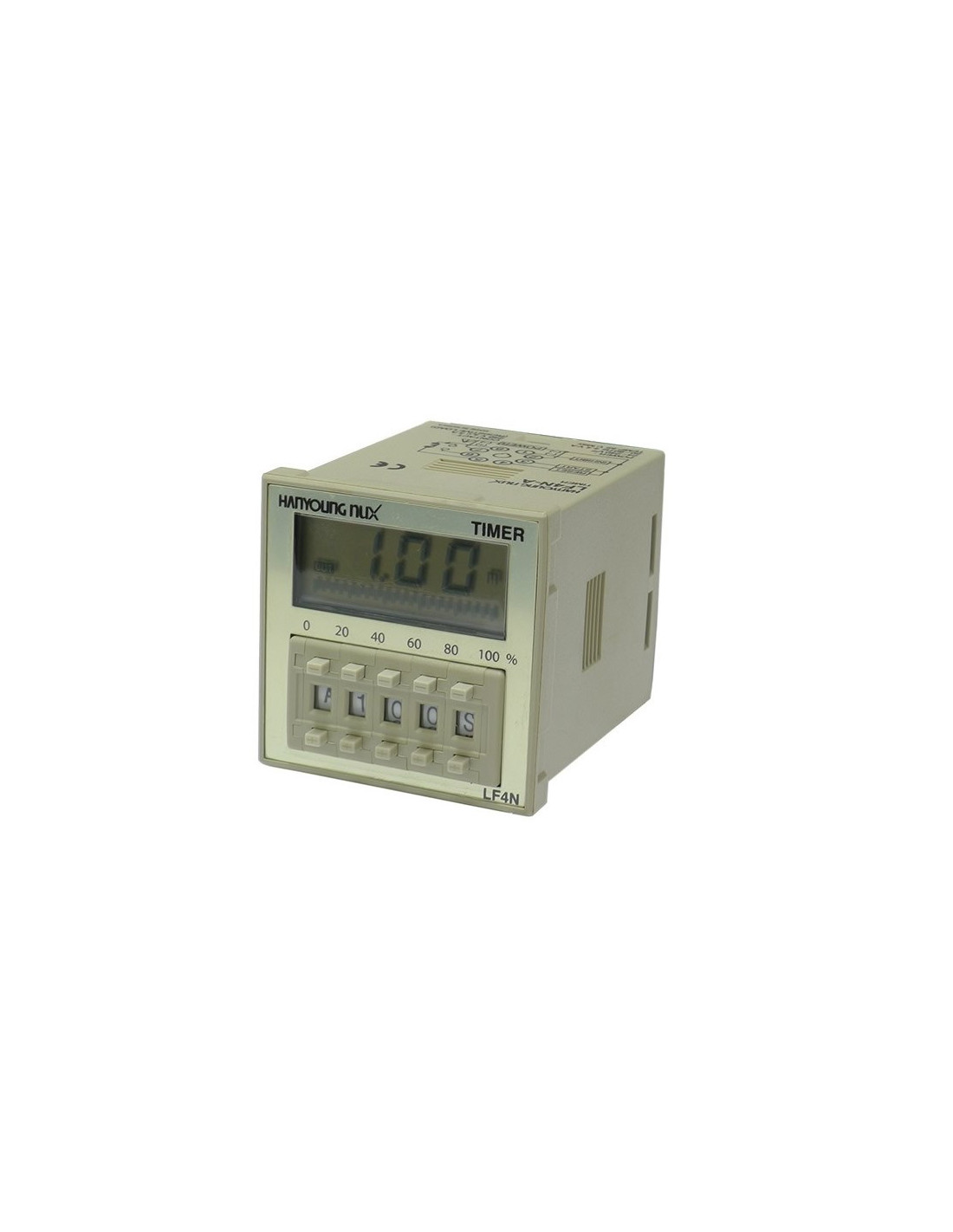

LF4N Digital Timer Controller
LF4N multi-function digital timer offers simple operation with 10 timer function modes and time ranges from 0.01 seconds to 9990 hours.
Model suffix code
| Model | LF4N-A | LF4N-B | LF4N-C | LF4N-D |
|---|---|---|---|---|
| Voltage | 24-240V AC/DC, 50-60 Hz | |||
| Socket | 8 pins | 11 pins | ||
| Output | Time limit, 1 contact |
Time limit, 1 contact . 1 instant contact |
Time limit, 2 contacts | Time limit, 1 contact |
| Time range | 0.01 seconds to 9990 hours | |||
| Output mode | 10 types | Fixed A mode | 10 types | |
| Input signal | Reset, Start, Inhibit | No input | Reset, Start, Inhibit | |
Timer mode
| Mode | Function |
|---|---|
| A | On-delay |
| B | Flicker on start |
| C | On/Off delay |
| D | Off-delay |
| E | Interval |
| F | One shot & Flicker |
| G | Integration |
| H | Interval Delay |
| I | Flicker One-shot |
| J | Power On-start |
