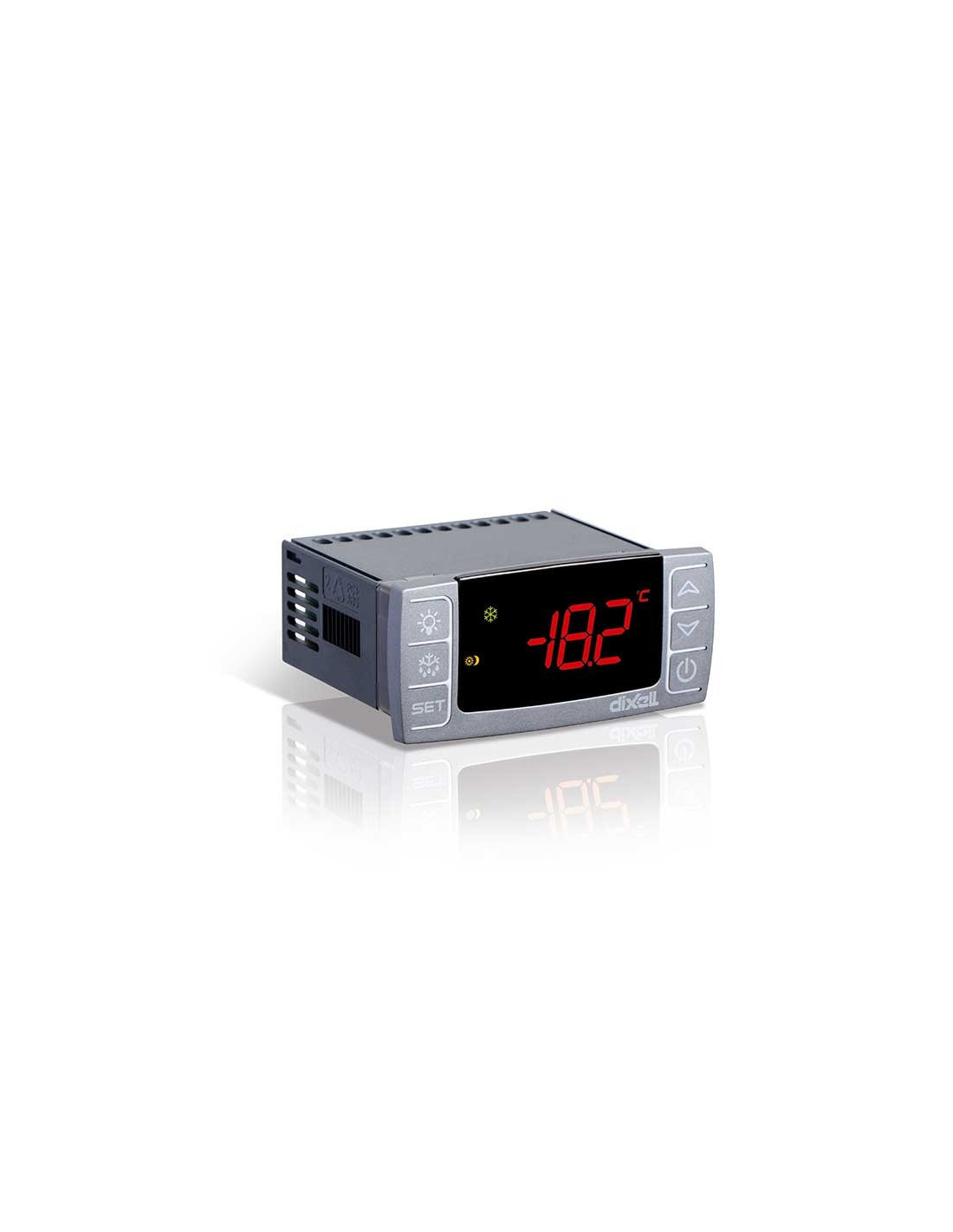

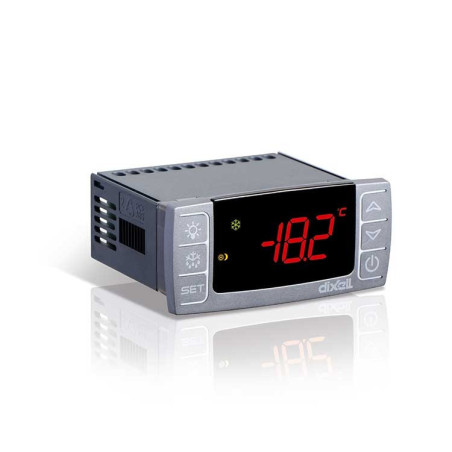

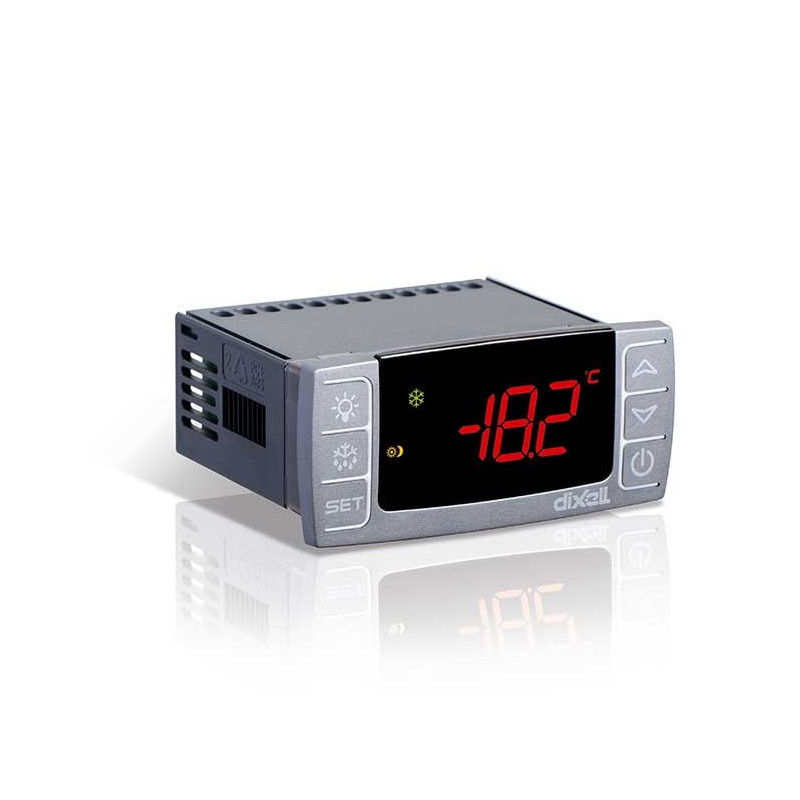

Dixell XR06CX Refrigeration Controller

Reference XR06CX-5N0C1

S$69.00

20A 230V With Voltage Protection
Defrost Timer And Heater Contact
High / Low Alarm Inter Buzzer
Fan Control
Door Contact Input

Voltage supply

Frame Size

Current rating

Description

The XR06CX, format 32 x 74 x 60 mm, is microprocessor based controller, suitable for applications on medium or low temperature ventilated refrigerating units. It has three relay outputs to control compressor, fan, and defrost which can be either electrical or reverse cycle (hot gas). The device is also provided with 2 NTC probe inputs, the first one for temperature control and the second one to be located onto the evaporator, to control the defrost termination temperature and to managed the fan and it’s provided with a configurable digital input. With the HOTKEY it’s possible to program the instrument in a quick and easy way

Connection Diagram

Product Details

In stock 9 Items

Attachments

XR06CX

Download (1.09MB)
