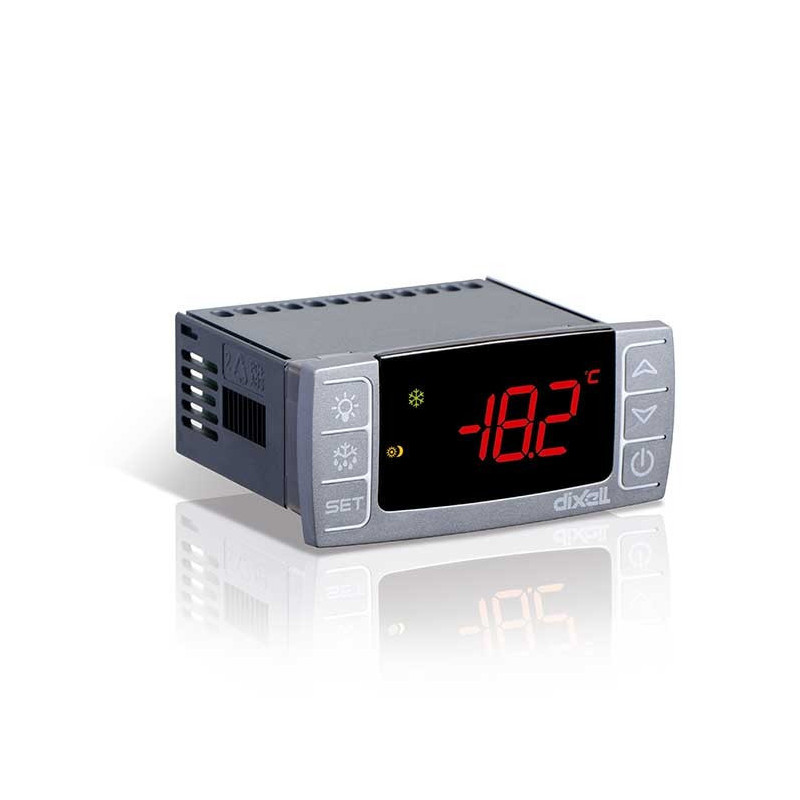

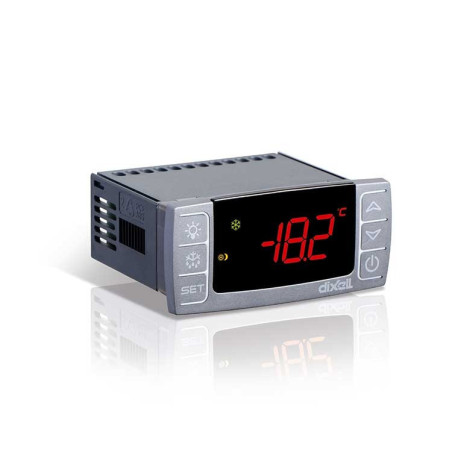

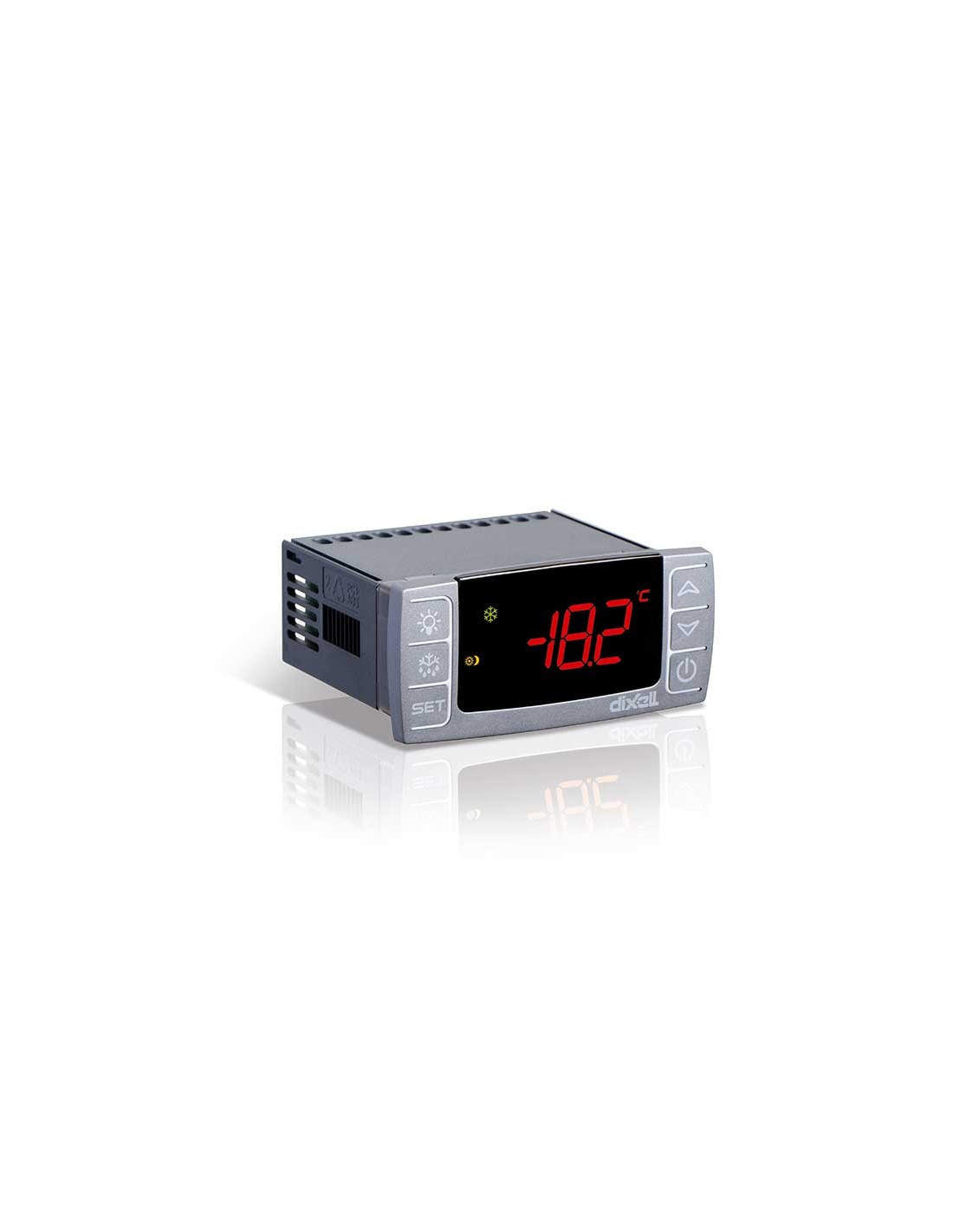

Dixell XR70CX Refrigeration Controller

Reference XR70CX-5N1I3

S$110.00

Innovative digital controllers dedicated to heat and NT and LT refrigeration
Easy and intuitive programming mode
On/off key
Energy saving cycles through digital input
Outputs restart with door open alarm
Temperature Max and Min functions

Voltage supply

Frame Size

Current rating

Description

Model XR70CX, format 32x74mm, is microprocessor based controller, suitable for applications on medium or low temperature ventilated refrigerating units. It has four relay outputs to control compressor, fan, and defrost, which can be either electrical or reverse cycle (hot gas). The last one can be used as light, for alarm signalling or as auxiliary output. It is also provided with up to 4 NTC or PTC probe inputs, the first one for temperature control, the second one, to be located onto the evaporator, to control the defrost termination temperature and to managed the fan. The digital input can operate as third temperature probe. The fourth one, to connect to the HOT KEY terminals, is used to signal the condenser temperature alarm or to display another temperature

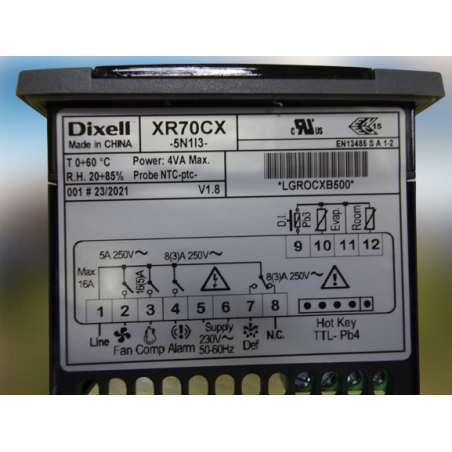

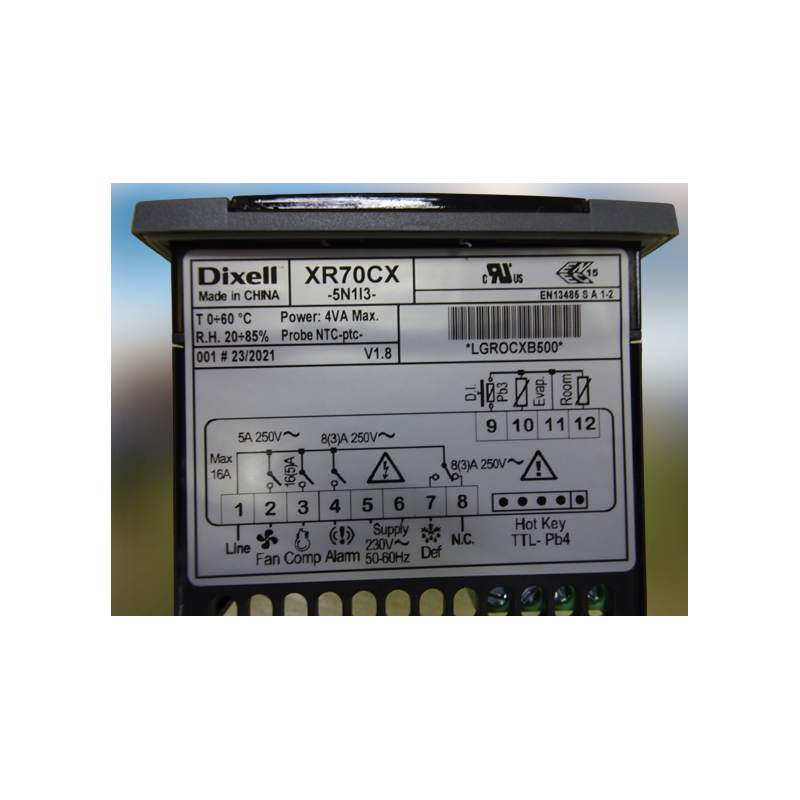

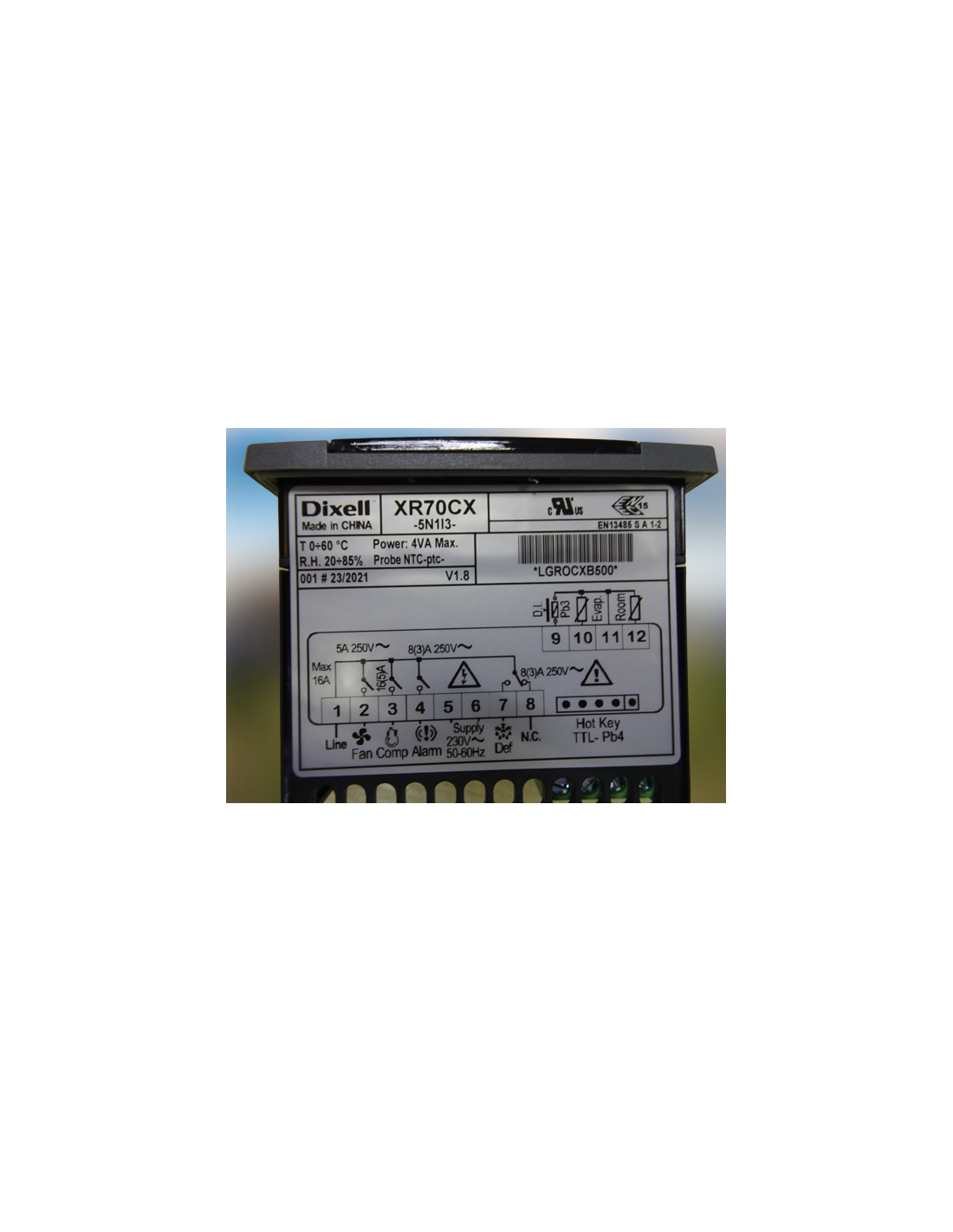

Connection Diagram

Product Details

Attachments

XR70CX

Download (1.01MB)
