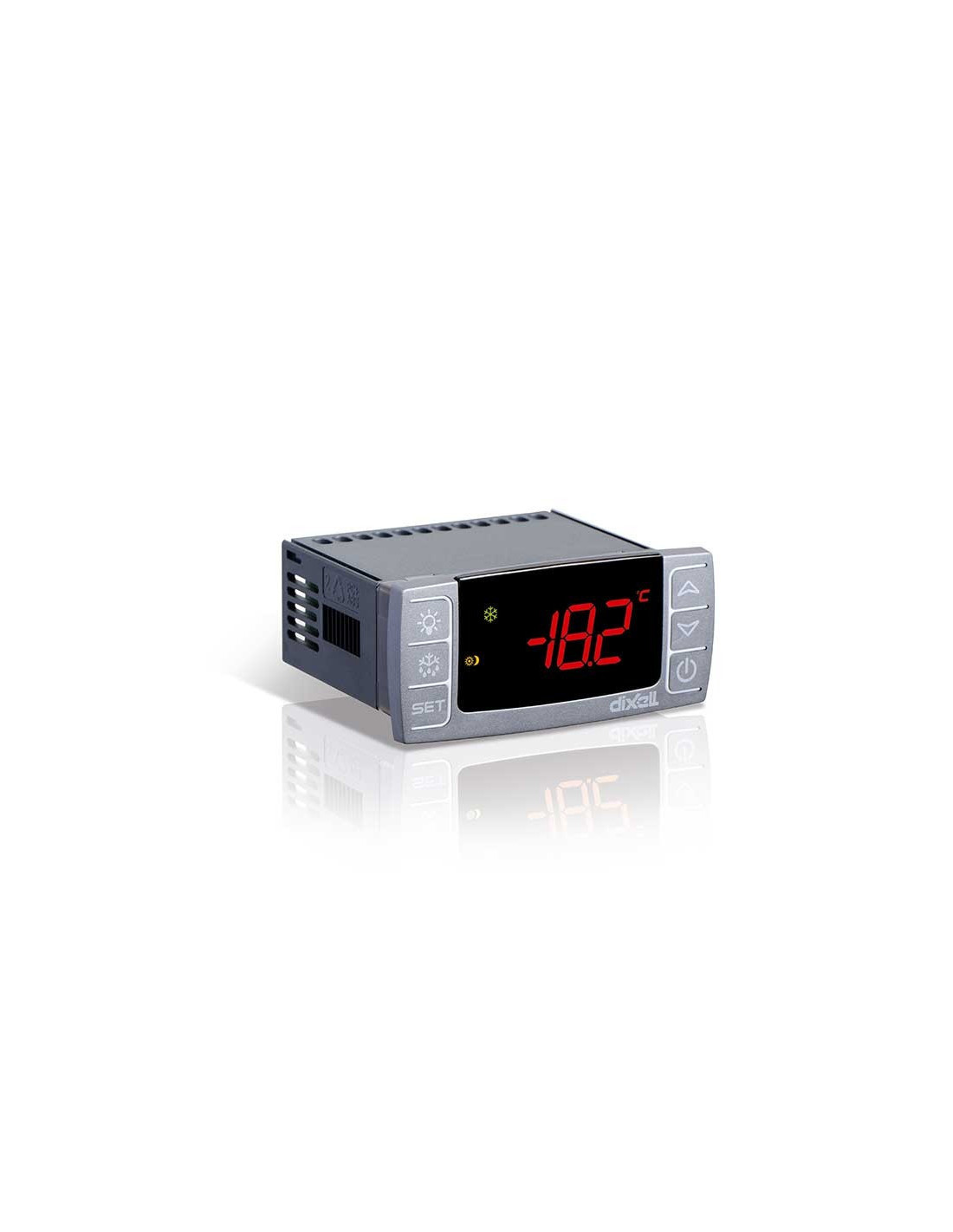

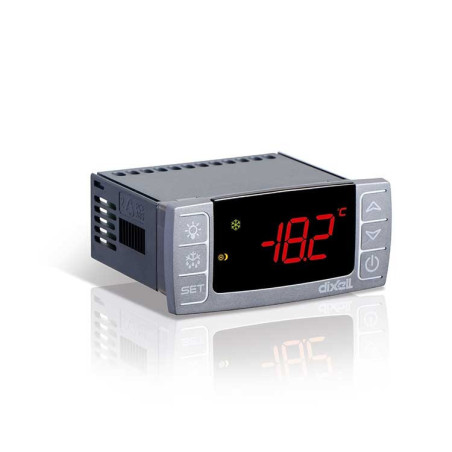

Dixell XR30CX Refrigeration Controller

Reference XR30CX-5N0C1

S$79.00

Innovative digital controllers dedicated to heat and NT and LT refrigeration
Easy and intuitive programming mode
On/off key
Energy saving cycles through digital input
Outputs restart with door open alarm
Temperature Max and Min functions

Voltage supply

Frame Size

Current rating

Description

Model XR30CX, format 32 x 74 mm, is a digital thermostat with off cycle defrost designed for refrigeration applications at normal temperature. It provides two relay outputs, one for the compressor, the other one can be used as light, for alarm signalling or as auxiliary output.. It is also provided with 2 NTC or PTC probe inputs, the first one for temperature control, the second one, optional, to connect to the HOT KEY terminals to signal the condenser temperature alarm or to display a temperature. The digital input can operate as third temperature probe

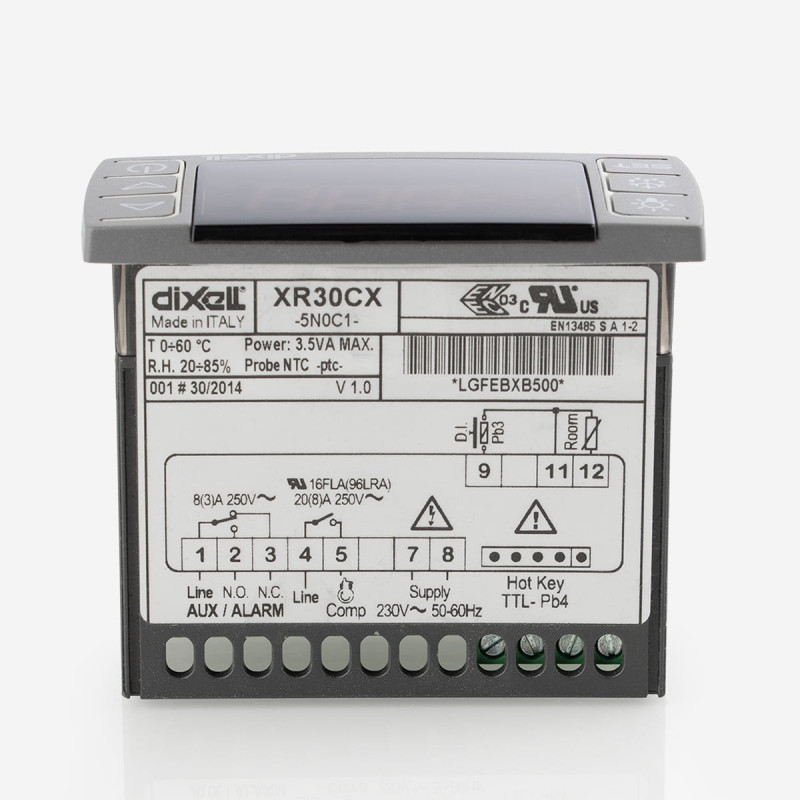

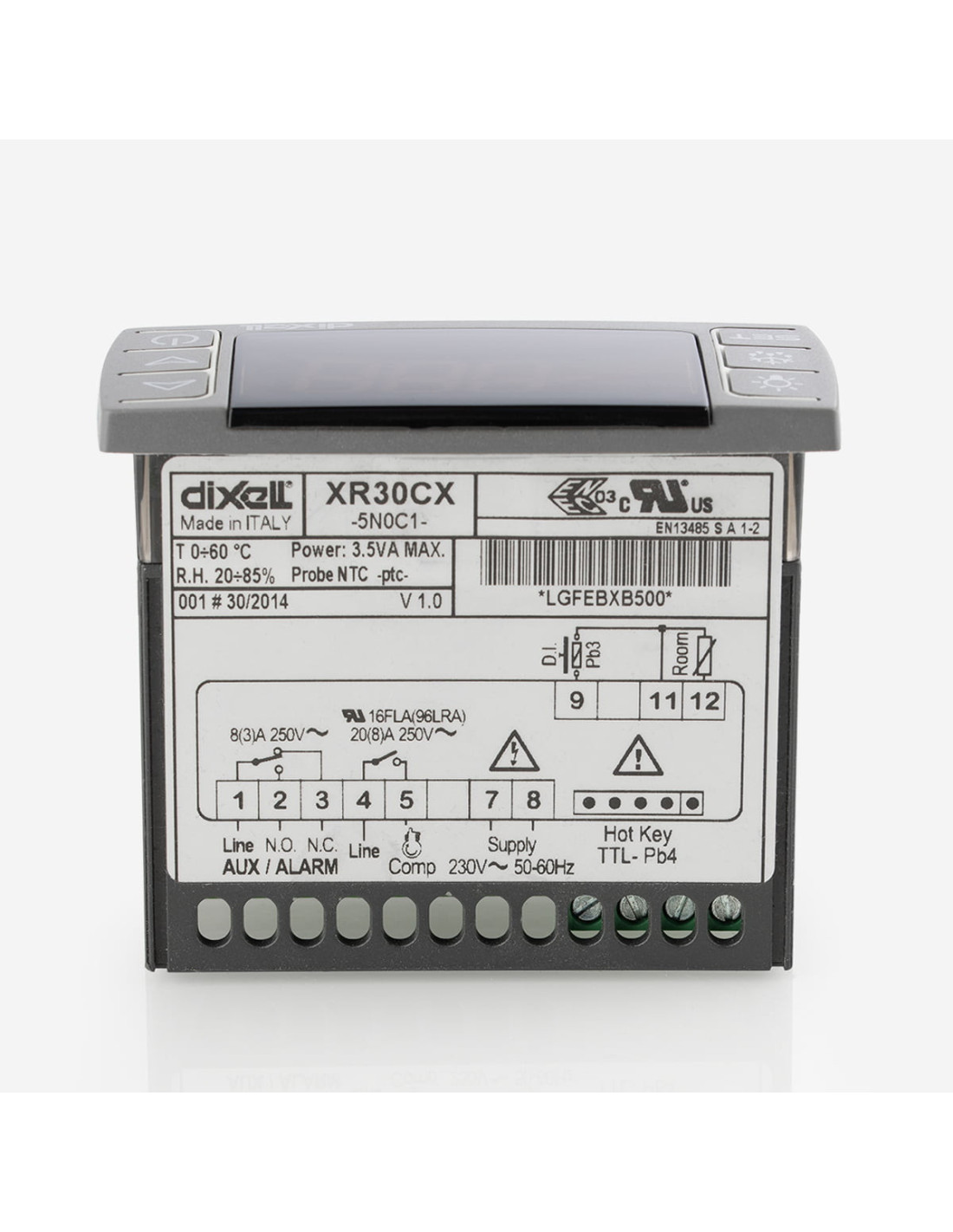

Connection Diagram

Product Details

In stock 10 Items

Attachments

XR30CX

Download (351.61KB)
