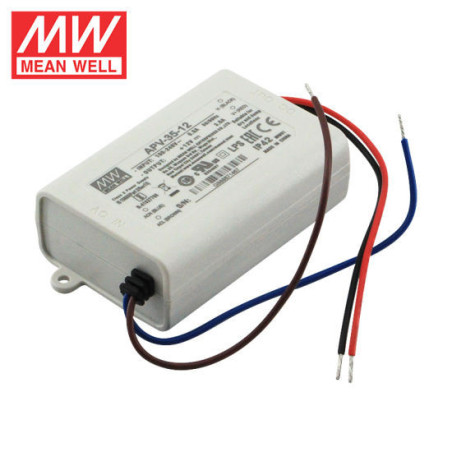

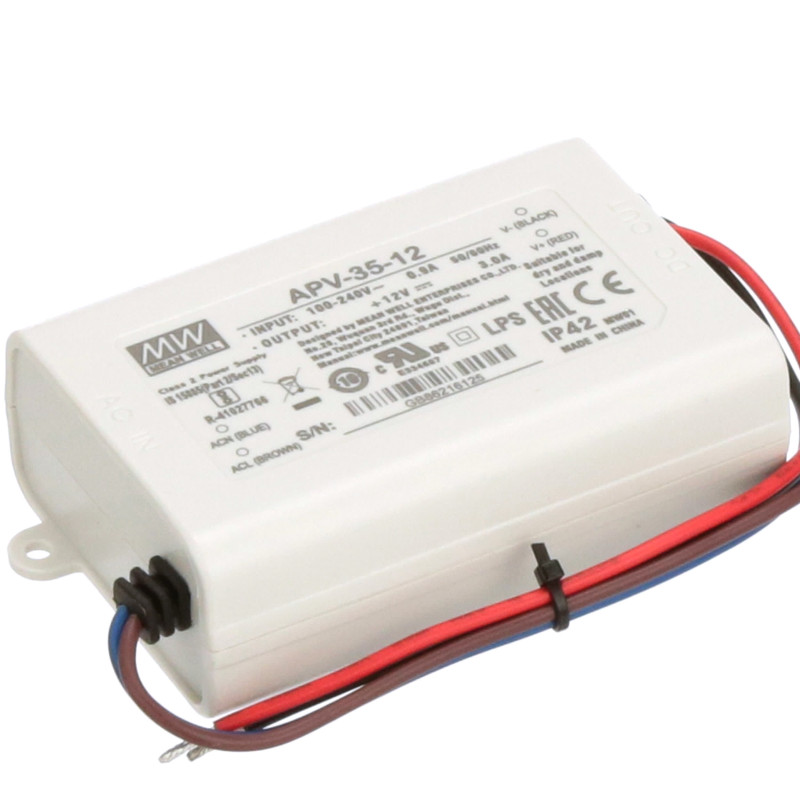

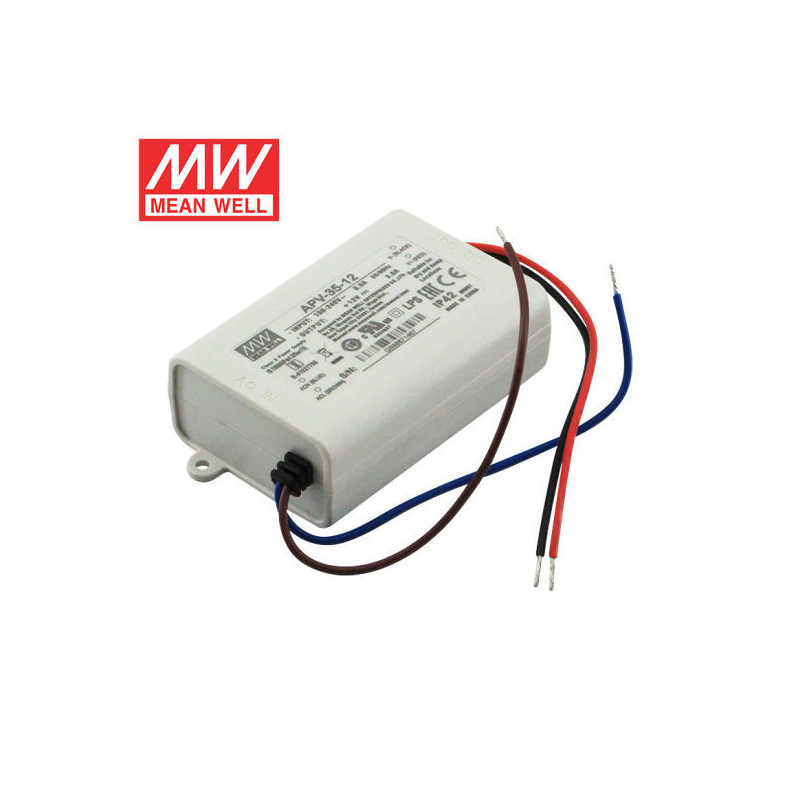

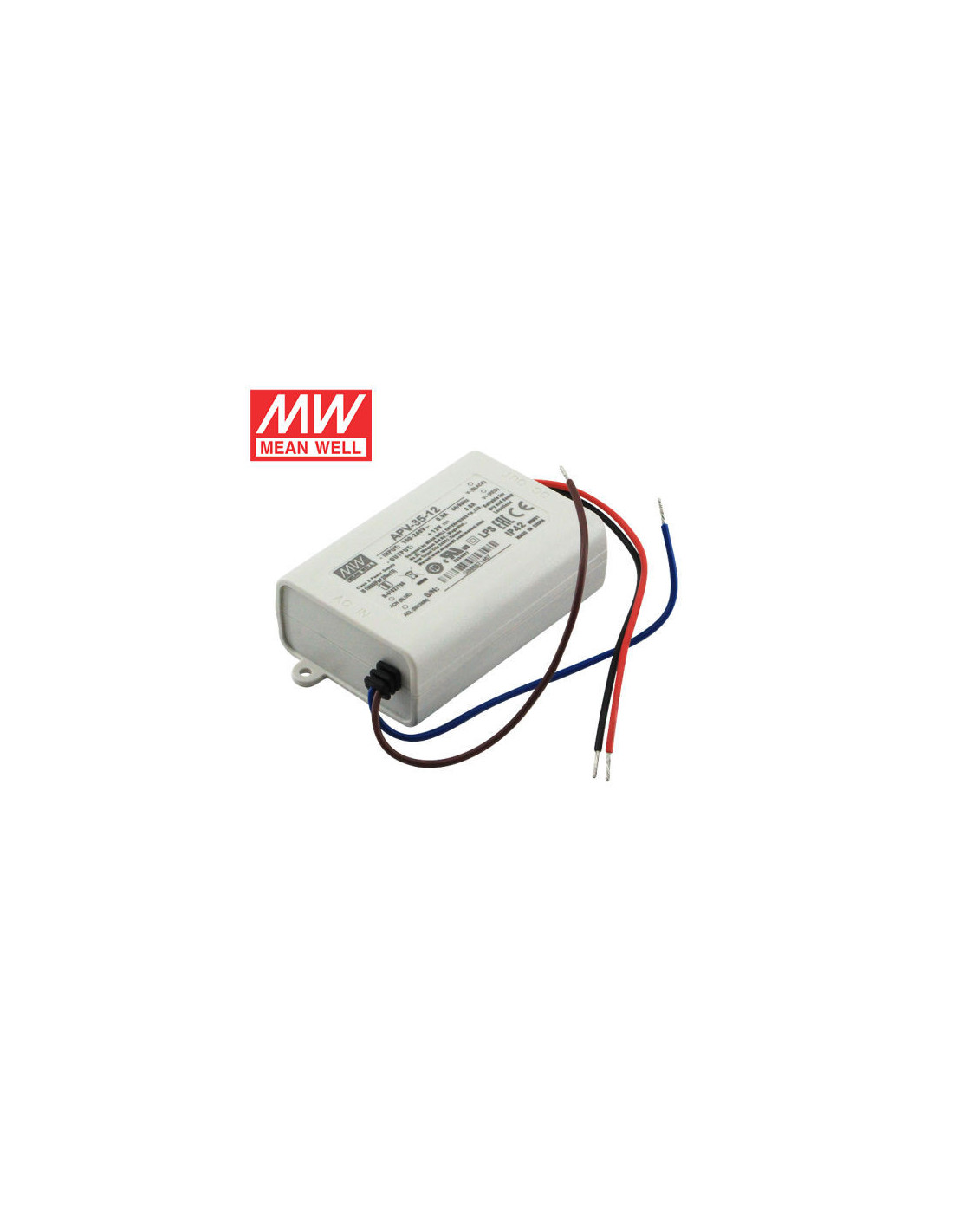

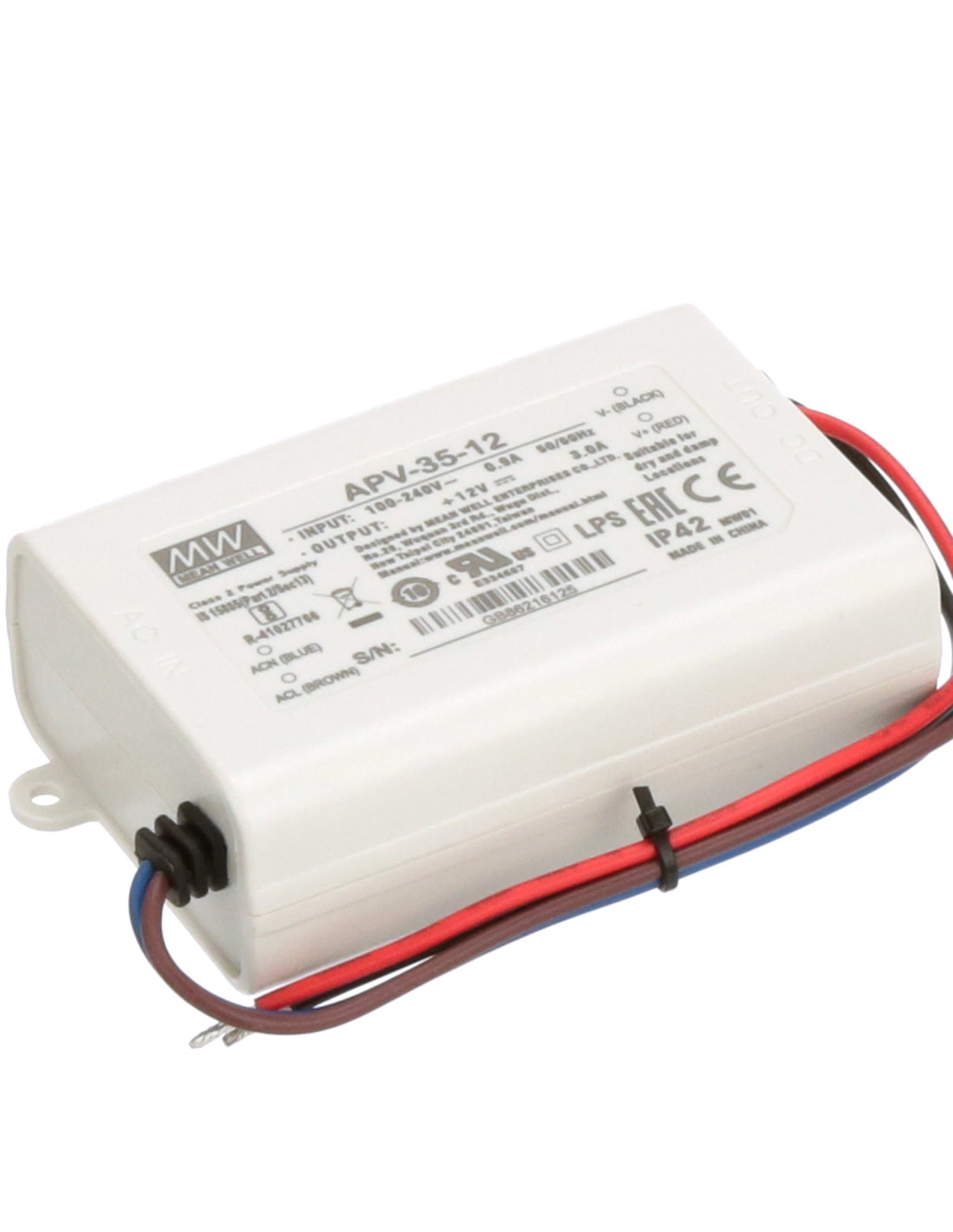

Mean Well APV-35 series, 35W IP30 rated LED Single output switching Power Supply. With a universal AC input, short circuit, overload, over voltage protections, withstand 300VAC surge input for 5 seconds. The APV-35 feature an up to date frequency switching topology with 90→264VAC input range and up to 84% of high efficiency, this Mean Well Power Supply can work between -30 → +70℃ only using free air convection. It is semi-potted for PCB protection, with the ability of anti-moisture, anti dust and also heat conduction purpose. The APV-35 series is recommended for use with indoor LED lighting without the need of high level waterproof and dustproof ability.
Specifications
| Attribute | Value |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac |
| Output Voltage | 12V |
| Operation | Constant Voltage |
| Output Current | 3A |
| Maximum Output Power | 36W |
| AC or DC Input Voltage | ac, dc |
| IP Rating | IP30 |
| Number of Outputs | 1 |
| Voltage Rating | 127 → 370 V dc, 90 → 264 V ac |
