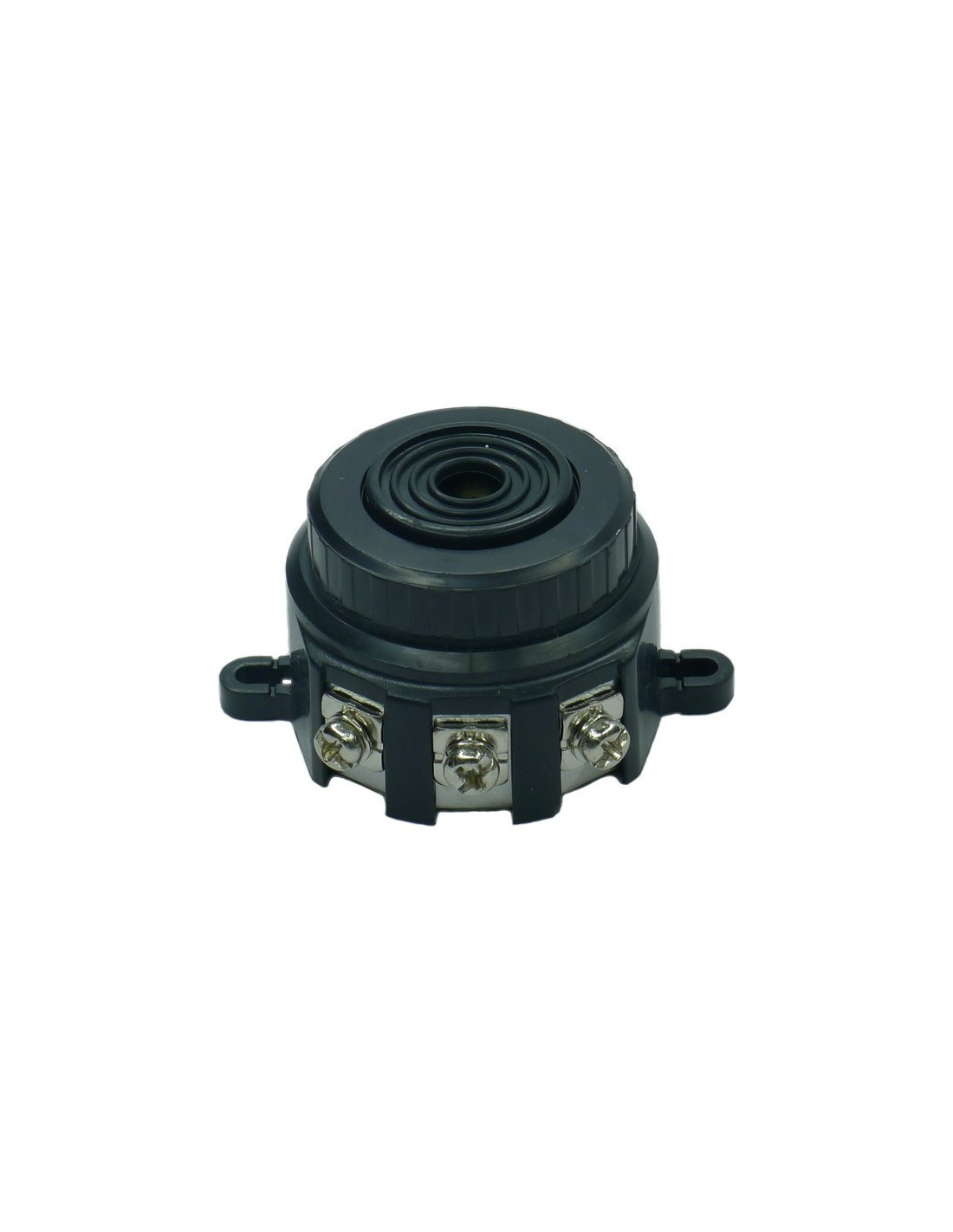

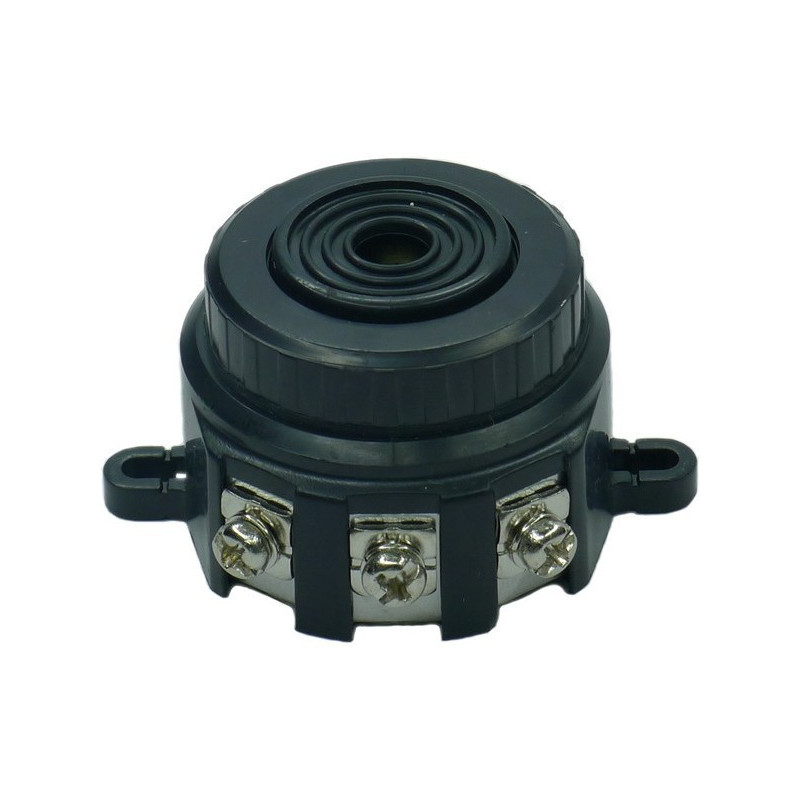

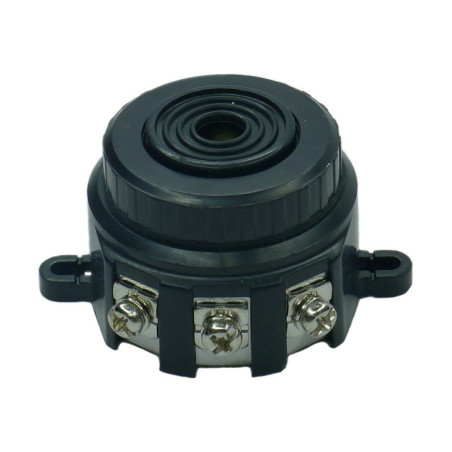

Zensor ESZ-26B buzzer
Zensor ESZ-26B buzzer

Zensor ESZ-26B buzzer

ESZ-26B
S$38.00

Zensor ESZ-26B buzzer

Voltage supply

Description

The ESZ-26B piezo buzzer is extremely quiet on stand-by but produce extremely loud sound output when activated. Depending on wire connection, the ESZ-26B can emit continuous or intermittent sound. Mounting of the buzzer is flexible with either base mount or inserted through 3/4" knockout hole.



Model
ESZ-26B
Voltage
3-28V
Current
20mA max at 24VDC
Starting Voltage
2.4V DC max.
Operating temperature
-20°C to 60°C
Mounting Hole Ø(mm)
Ø20 (3/4")
Sound Level @ 1ft. from Buzzer

3V
82dB
6V
90dB
12V
98dB
24V
103 dB
28V
104 dB



ESZ-26B dimensions
