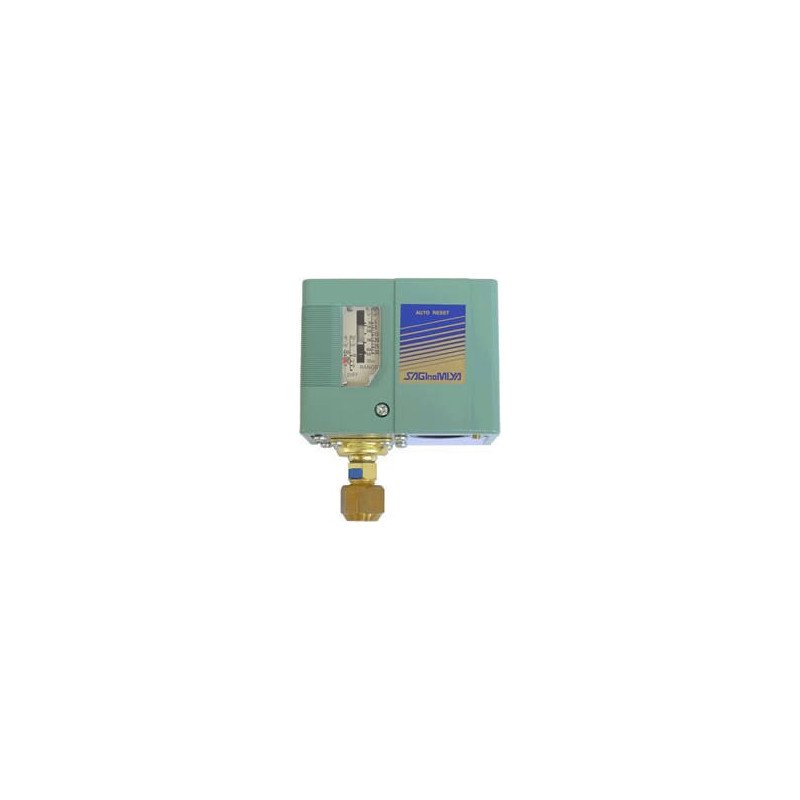

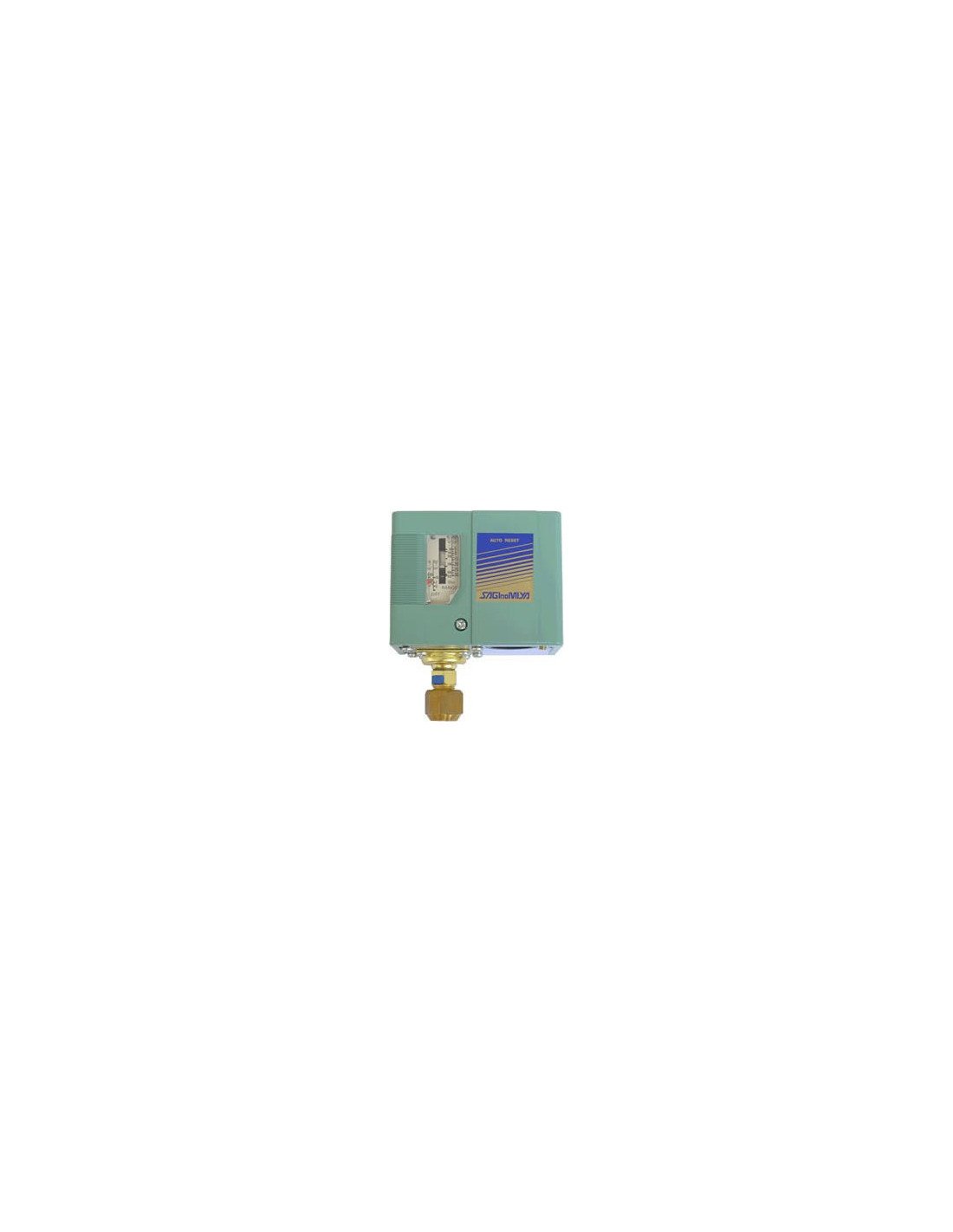

Saginomiya SNS Pressure Switch (SNS-C101X,SNS-C102X,SNS-C103X,SNS-C104X,SNS-C106X,SNS-C110X,SNS-C120X,SNS-C130X,SNS-C135X)
Saginomiya SNS pressure switch
( 0.1Mpa = 1 Bar, 1 Mpa = 10 Bar)
The general SNS pressure switches are widely used in fluorinated refrigerants, air and water control applications, with wide operating temperature range from -20°C to 120° C. Key features include;
a. Option for drip proof enclosure for marine application or explosion proof for special application
b. Stainless steel model available upon request
c. High durability
| Range (MPa) | Differential (MPa) | Max. (MPa) | |||
| Min. | Max. | Min. | Max. | ||
| SNS-C101X | -0.06 | 0.1 | 0.015 | 0.05 | 0.3 |
| SNS-C102X | -0.02 | 0.2 | 0.025 | 0.15 | 0.5 |
| SNS-C103X | -0.06 | 0.3 | 0.035 | 0.2 | 1 |
| SNS-C104X | -0.06 | 0.4 | 0.04 | 0.2 | 1.5 |
| SNS-C106X | -0.06 | 0.6 | 0.06 | 0.4 | 1.5 |
| SNS-C110X | 0.1 | 1 | 0.1 | 0.3 | 1.5 |
| SNS-C120X | 0.5 | 2 | 0.2 | 0.5 | 3 |
| SNS-C130X | 0.5 | 3 | 0.3 | 1 | 3.3 |
| SNS-C135X | 1 | 3.5 | 0.5 | 1.5 | 3.8 |
