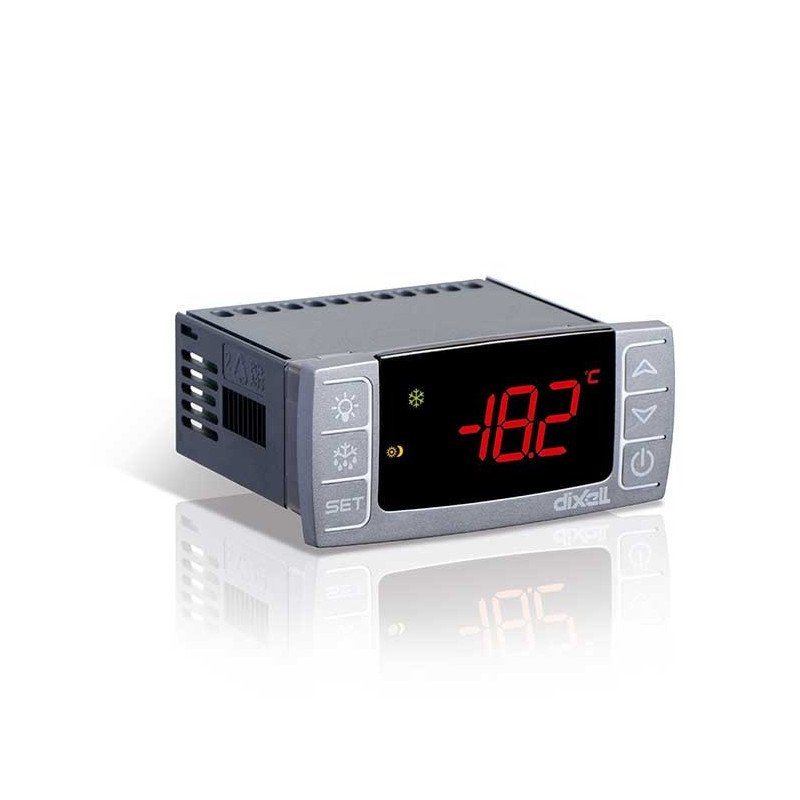

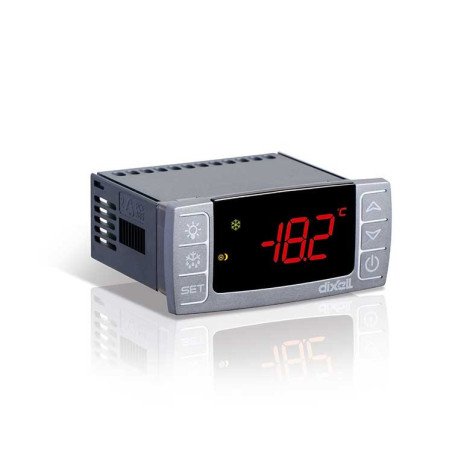

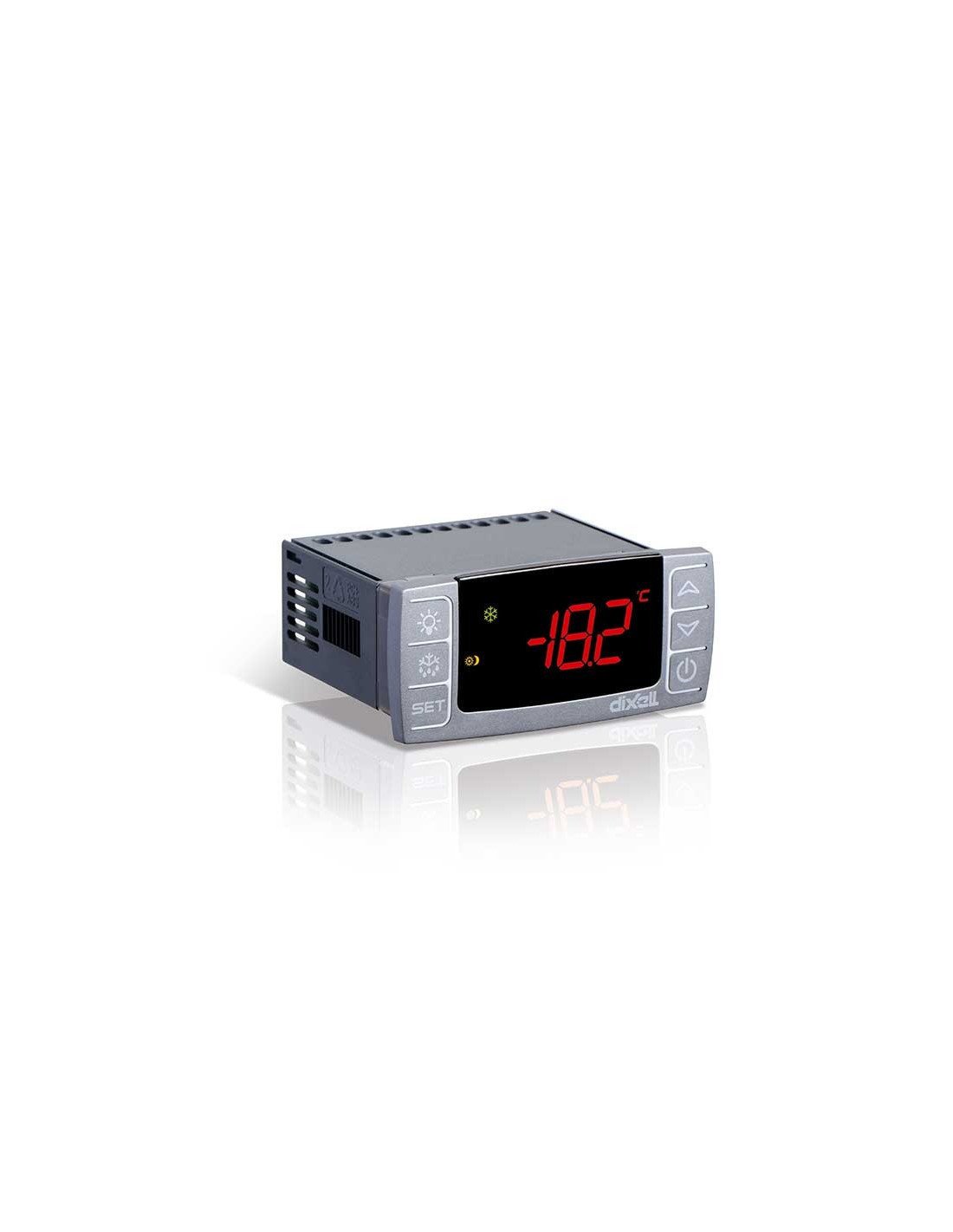

Dixell XR03CX Refrigeration Controller
Dixell XR03CX Refrigeration Controller

Dixell XR03CX Refrigeration Controller

  • 20A 230V With Voltage Protection
  • Air Defrost Timer
  • High / Low Internal Buzzer Alarm
  • Configurable Auxiliary Contact for Lights or Alarms
  • Door Contact Input
Voltage supply
Frame Size
Current rating
XR03CX-5AACFLS
S$59.00
Tax excluded



The XR03CX, in 32x74x50mm short format, is microprocessor based controller suitable for applications on normal temperature refrigerating units. It provides two relay output: one for compressor and the other one for alarm signalling or as auxiliary output. It provides an NTC probe input and a digital input for alarm signalling, for switching the auxiliary output or for start defrost. The instrument is fully configurable through special parameters that can be easily programmed through the keyboard or the by HOTKEY

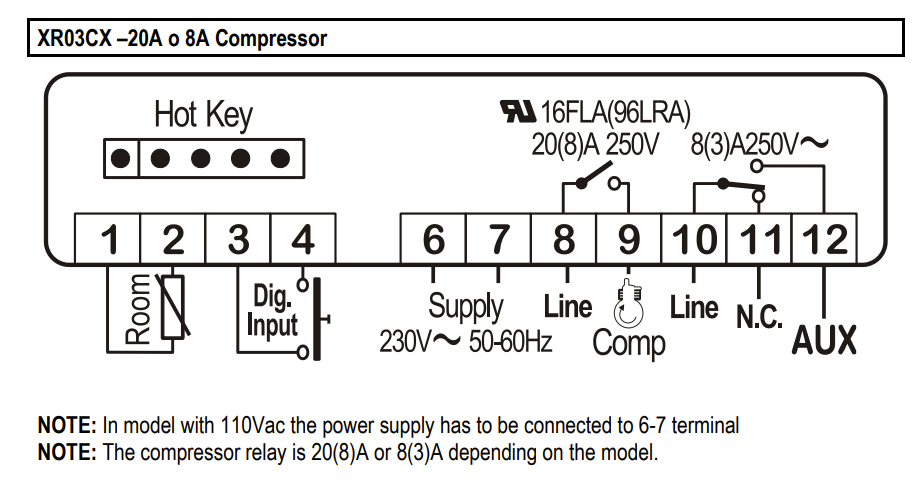

Connection Diagram
