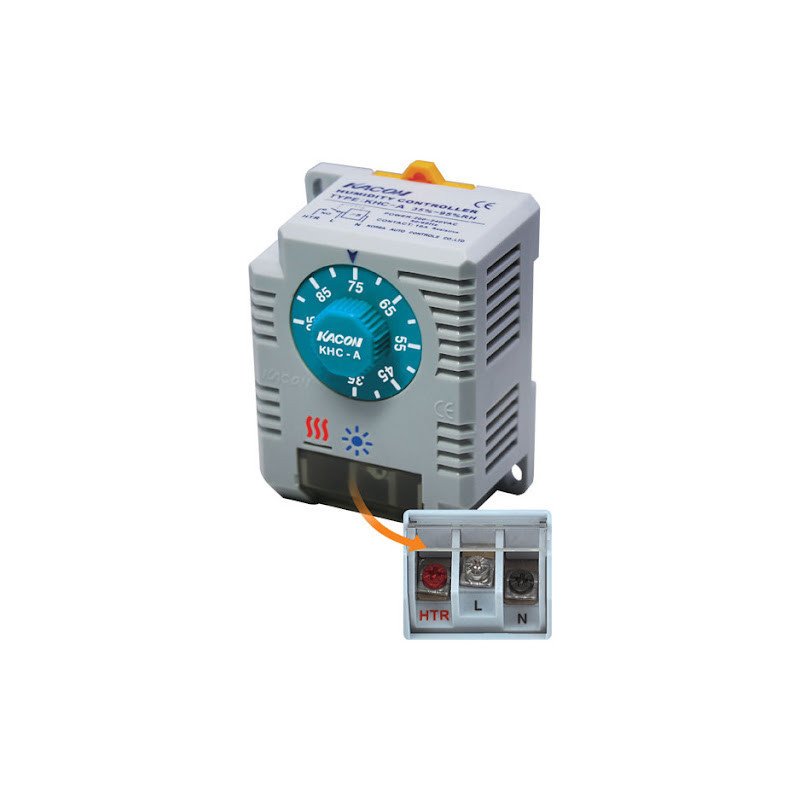

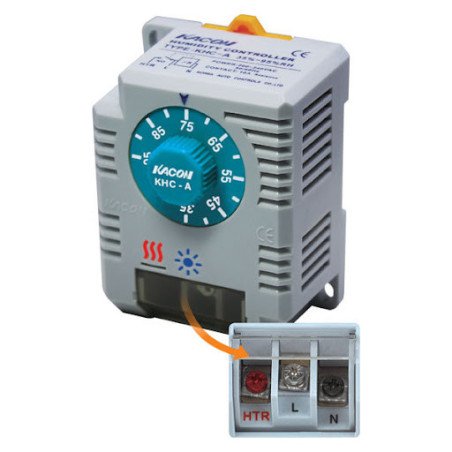

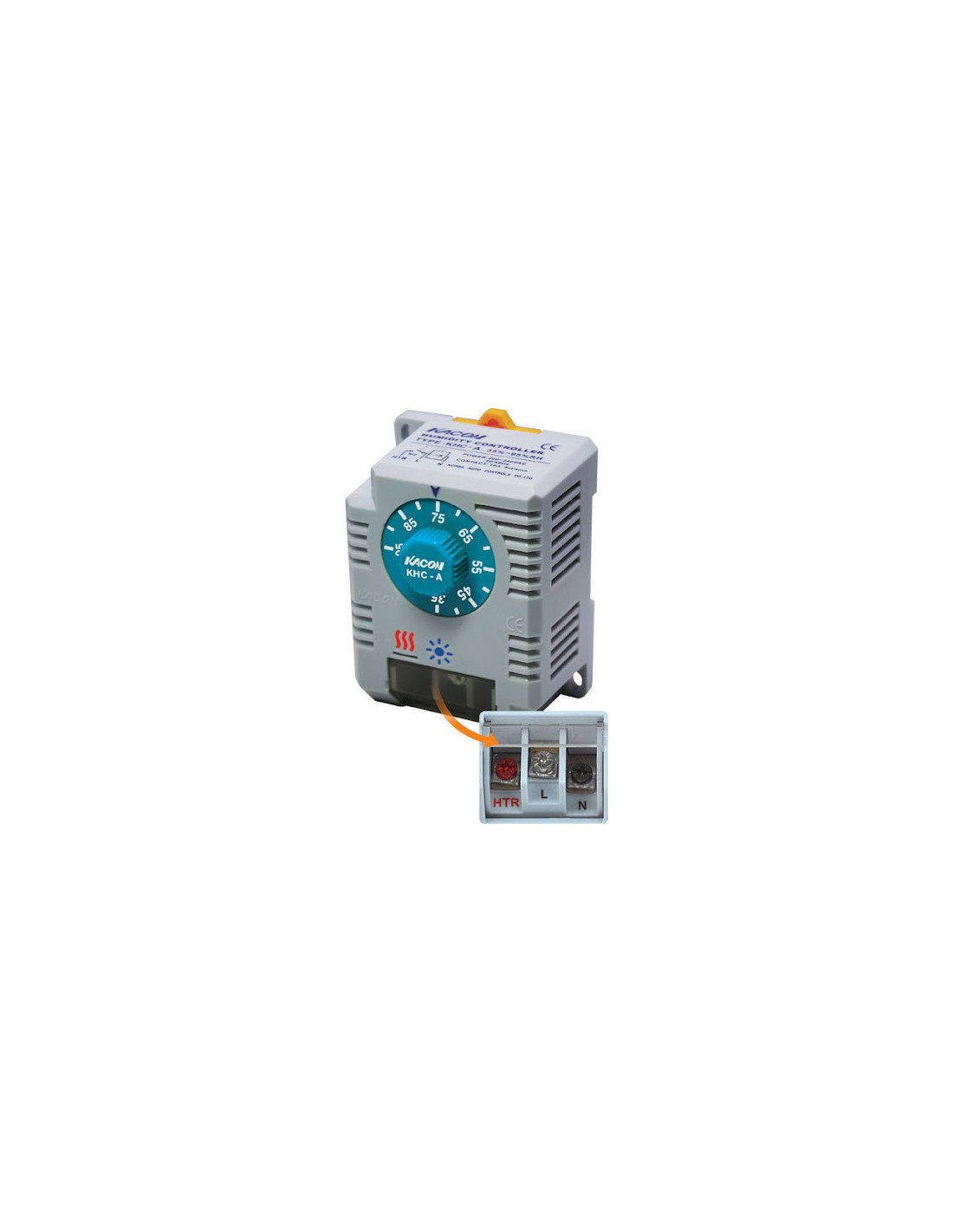

Kacon KHC-A KHC Series Huminity Controller
Kacon KHC-A KHC Series Huminity Controller

Kacon KHC-A KHC Series Huminity Controller

KHC-A
Last items in stock
S$85.80
Tax excluded



Key Features

  • Operation Indicator lamp
  • Din rail or surface mounting
  • Colored terminals for easy use
Model KHC-A
Rated Voltage 220VAC ±10% 50/60Hz
Load Current 16A 220VAC
Contact Configuration 1a (SPST)
Contact Resistance Max. 30mΩ
Contact Life Cycle Min. 100,000 hrs
Operational Range 35%~95% rH
Setting Error ±5%
Dielectric Strength AC, 2,500V 50/60Hz for 1 minute
Insulation Resistance 50MΩ min.(at 500VDC)
Mounting Methods 35mm dinrail and surface mounting
Wiring Range 14~28AWG
Terminal M3.5×7/0.8N.m (8.16kgf.cm)
Storage Temperature -25°C~80°C
Ambient Humidity 35%~95% RH
