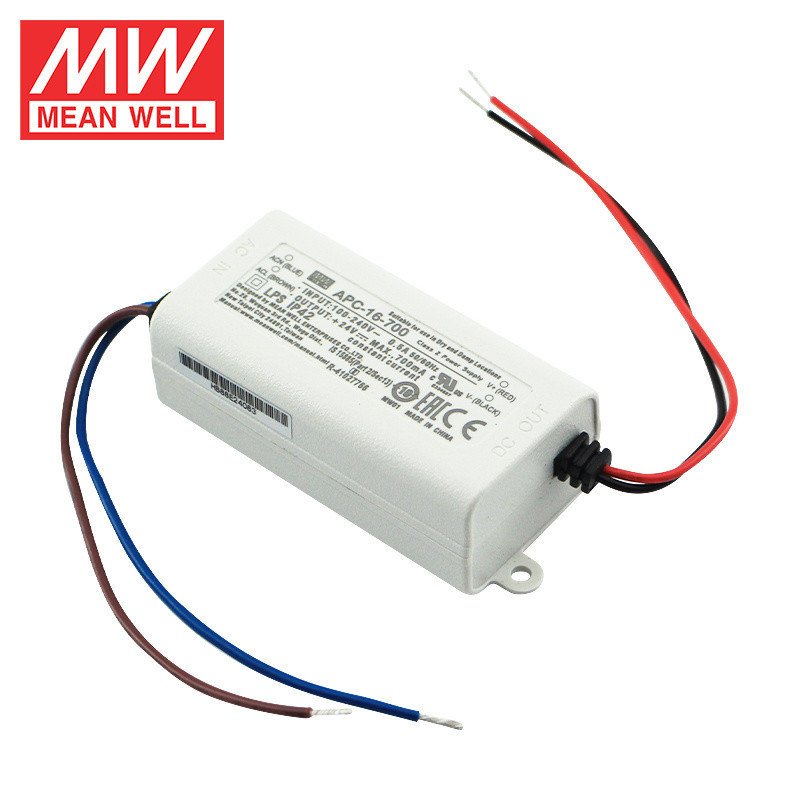

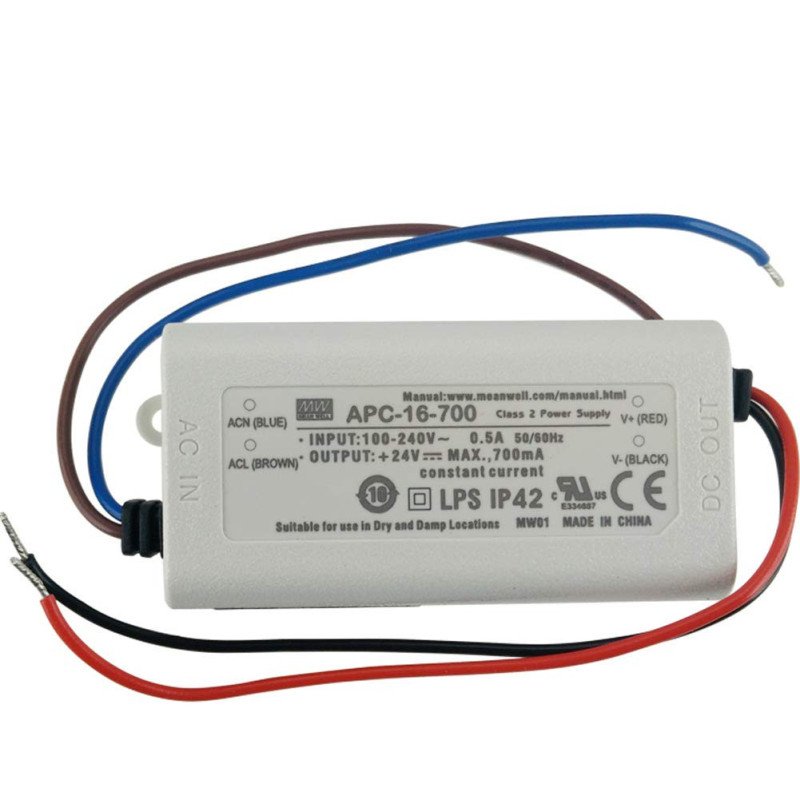

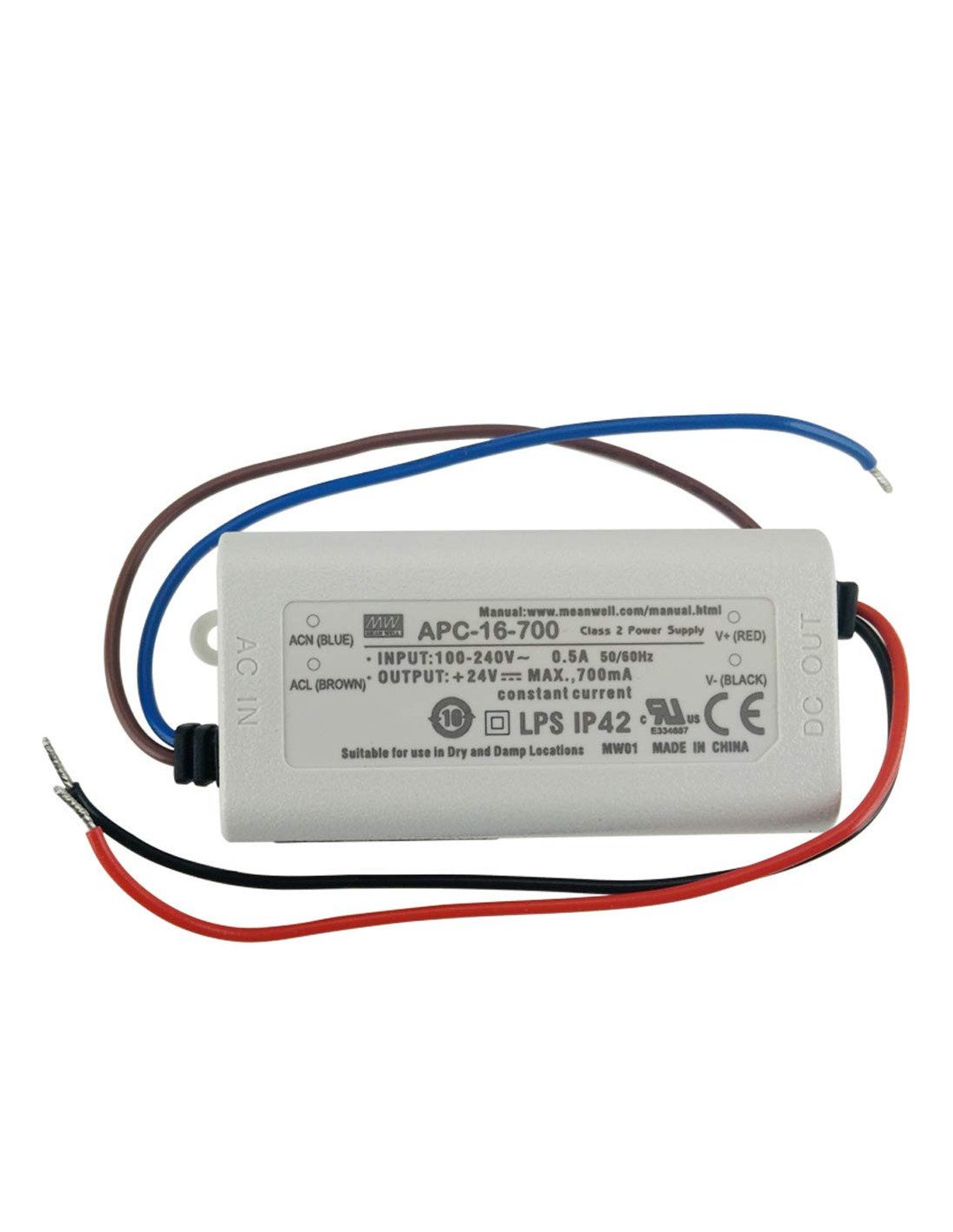

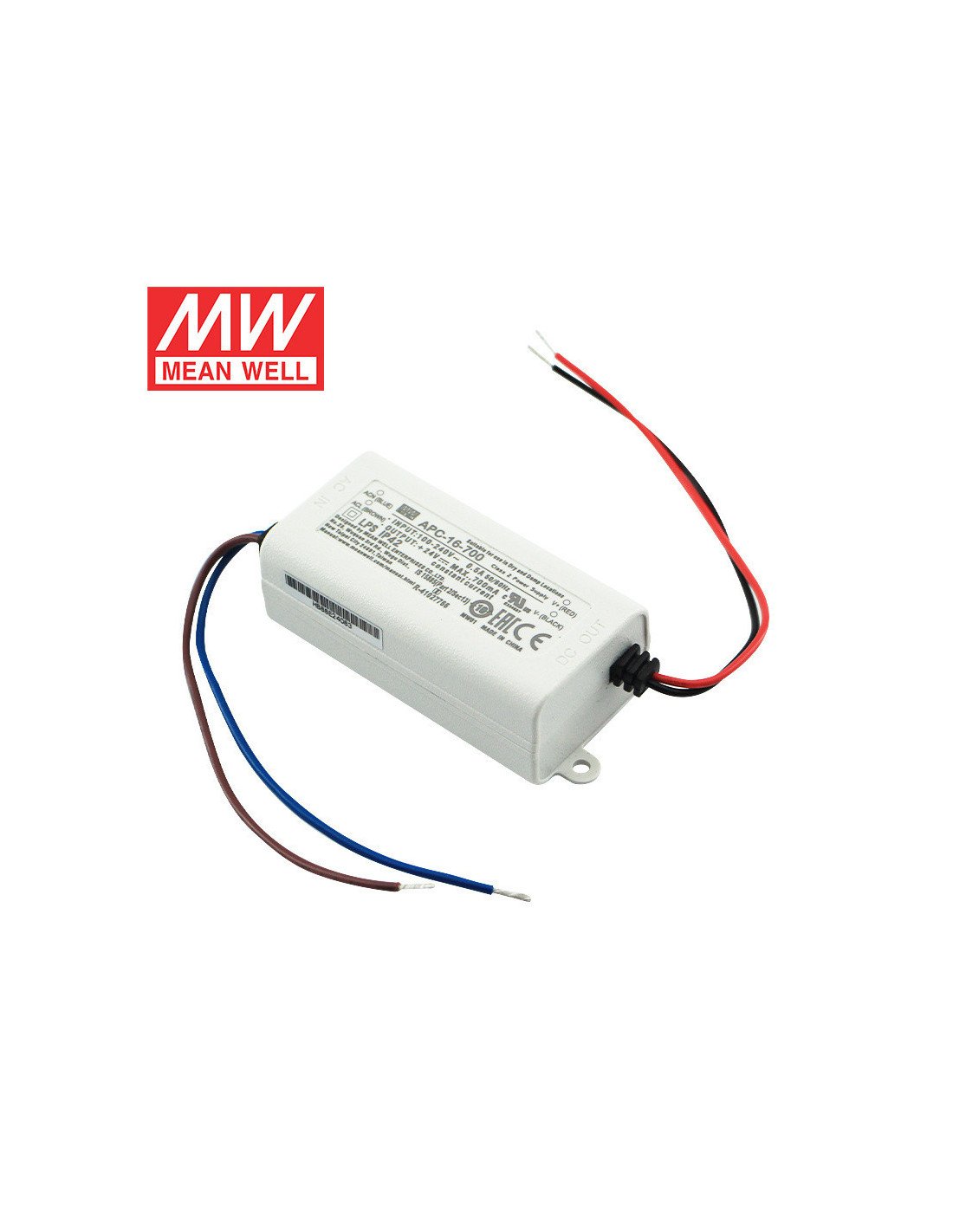

Mean Well APC-16-700 LED Driver
Mean Well APC-16-700 LED Driver
Mean Well APC-16-700 LED Driver
Mean Well APC-16-700 LED Driver

Mean Well APC-16-700 LED Driver

AC-DC Single output LED driver Constant Current (CC); Output 0.7A at 9-24Vdc

APC-16-700
S$14.90
Tax excluded



APC series 12W and 16W constant current LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

Specifications

Attribute Value
Input Voltage 127 → 370 V dc, 90 → 264 V ac
Output Voltage 9 → 24V
Operation Constant Current
Output Current 700mA
Maximum Output Power 16.8W
AC or DC Input Voltage ac, dc
IP Rating IP30
Voltage Rating 127 → 370 V dc, 90 → 264 V ac

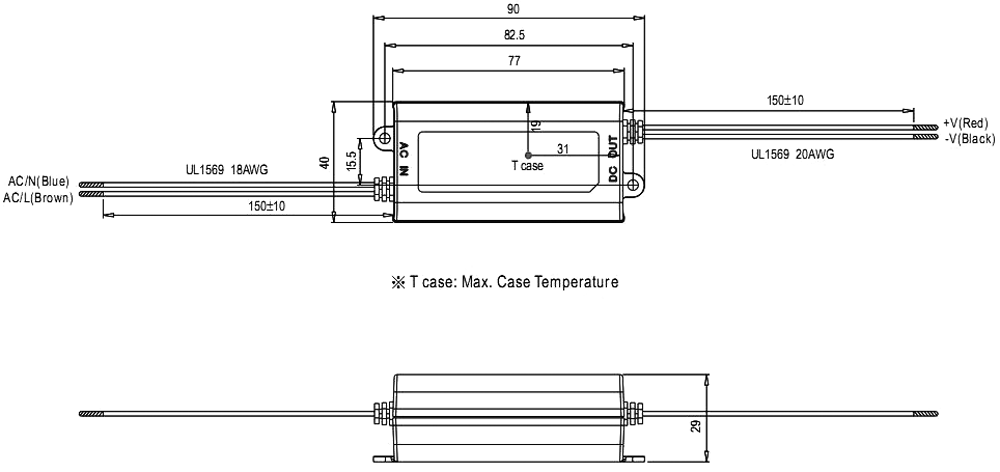

Dimensions
