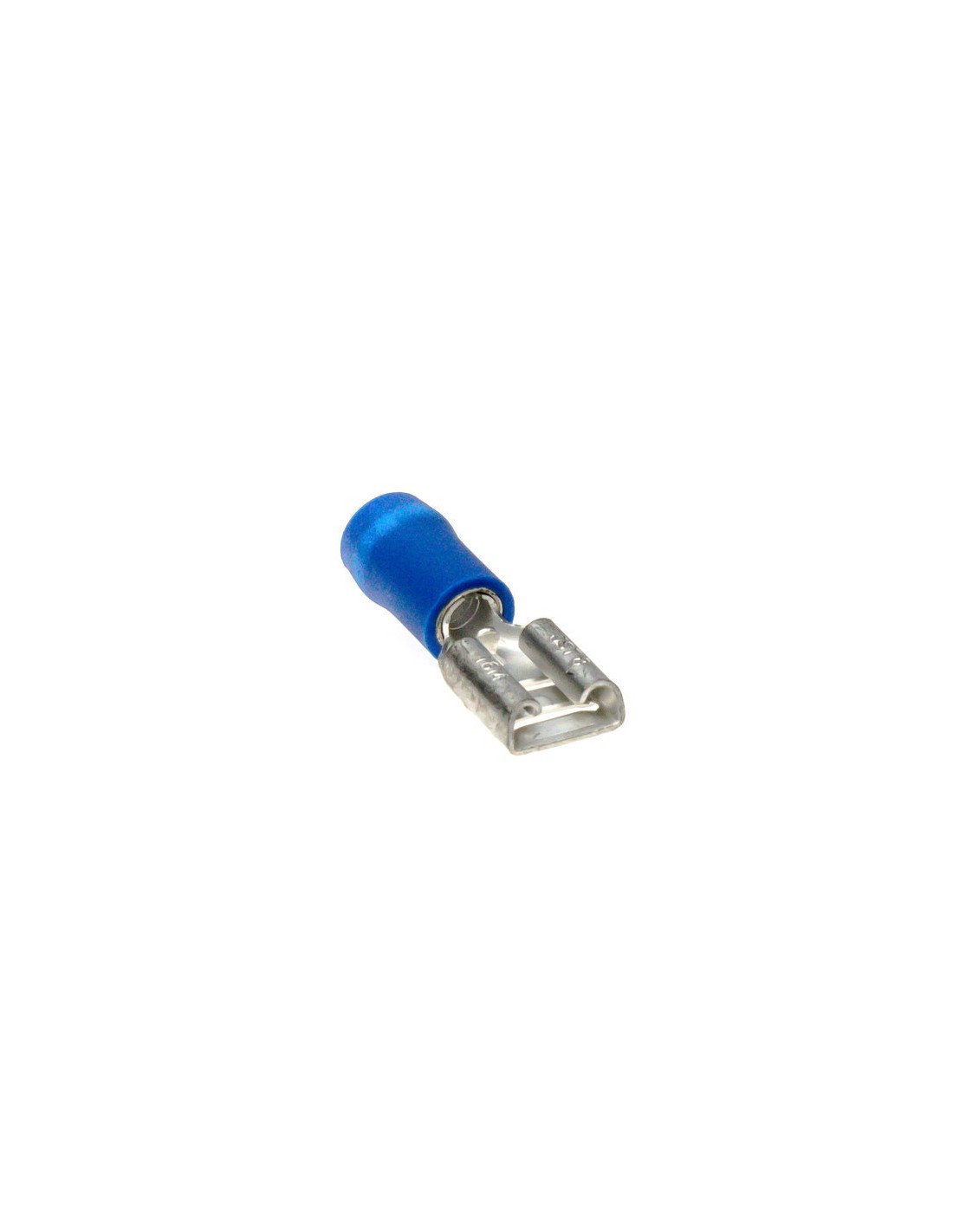

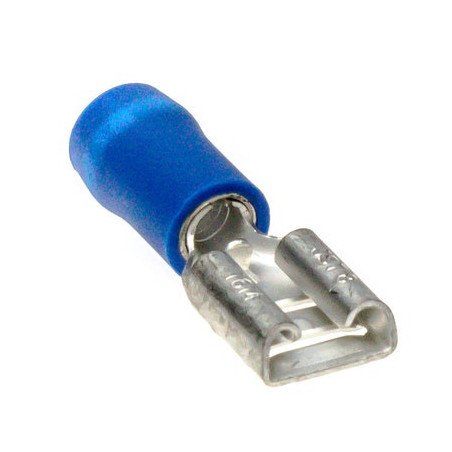

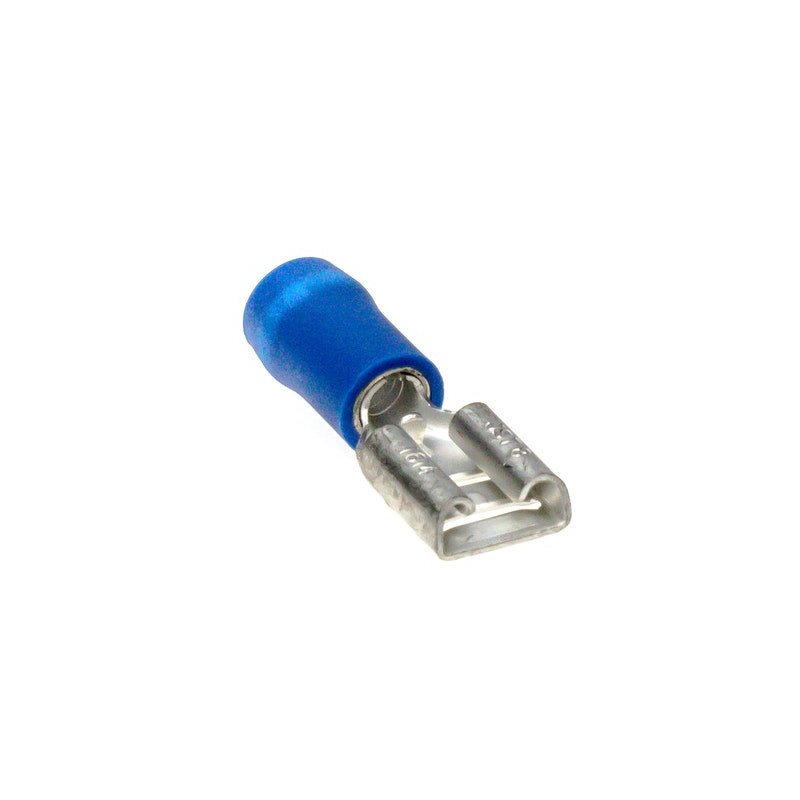

FVDDF2-250A Cable Lug
FVDDF2-250A Cable Lug

FVDDF2-250A Cable Lug

Female, Vinyl-insulated with copper sleeve, flared entry

Package: (Pack of 10pcs/lot)

FVDDF2-250A
S$6.00
Tax excluded



Specifications

Attribute Value
Maximum Wire Size mm² 2.6mm²
Minimum Wire Size mm² 1mm²
Insulation Insulated
Gender Female
Colour Blue
Tab Size 6.35 x 0.8mm
Minimum Wire Size AWG 16AWG
Maximum Wire Size AWG 14AWG
Termination Method Crimp
Contact Material Copper
Overall Length 20.5mm
Insulation Material Vinyl
Series FVDDF

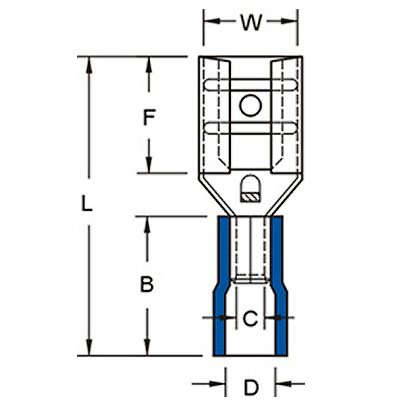

Dimensions

T L F B W D C
0.40mm (0.01″) 20.5mm (0.81″) 7.5mm (0.30″) 10mm (0.39″) 6.6mm (0.26″) 4.5mm (0.18″) 2.3mm (0.03″)
