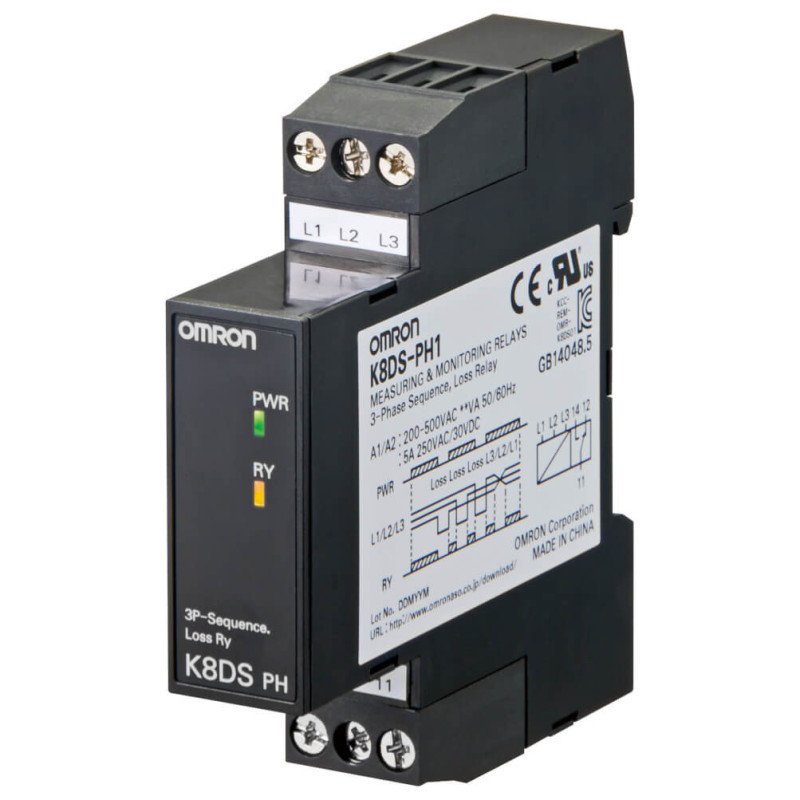

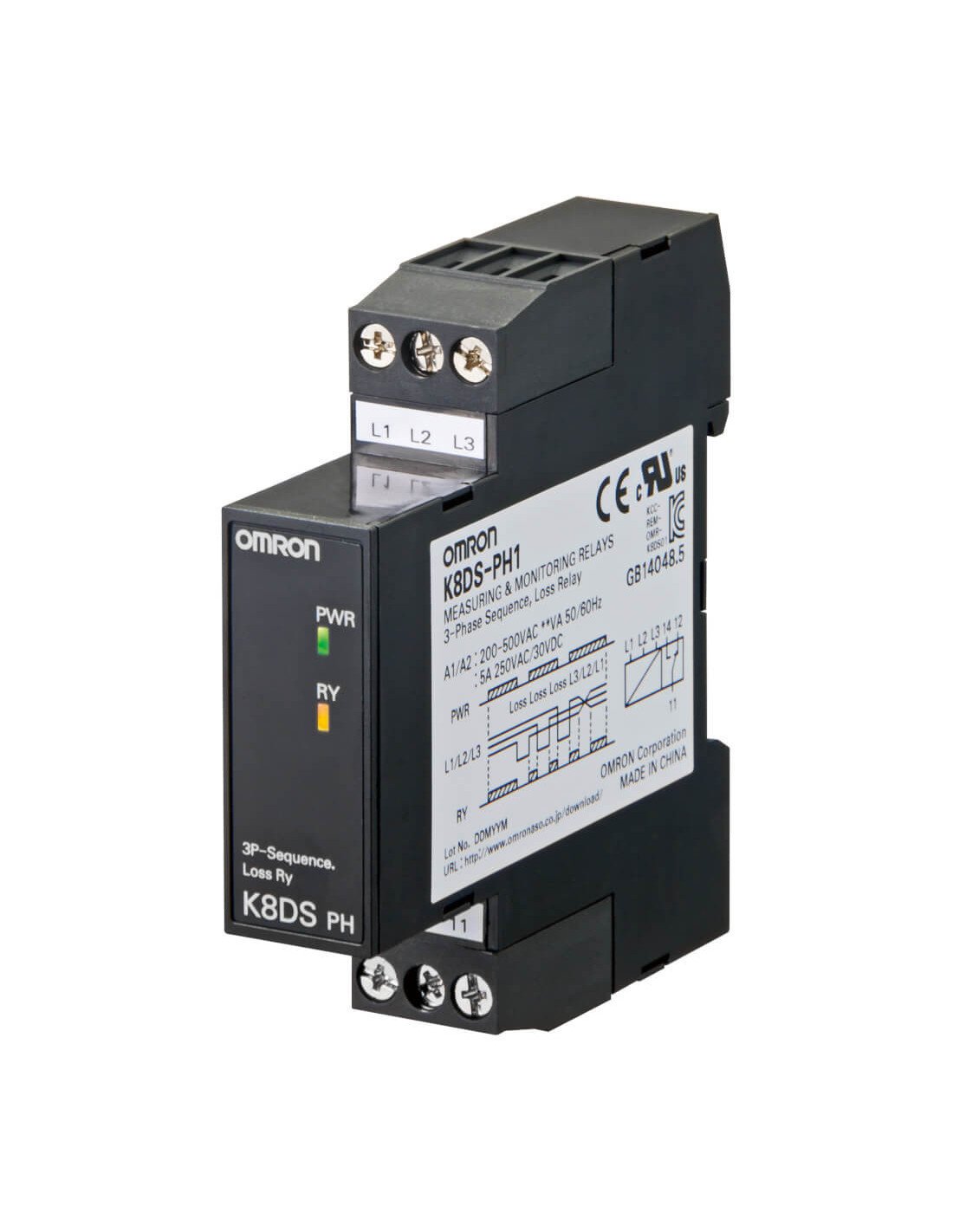

Omron K8DS-PH1 3 Phase Monitoring Relay

Name: Omron K8DS-PH1 3 Phase Monitoring Relay
Brand: Omron
SKU: K8DS-PH1
Price: 34.3 SGD
Availability: OutOfStock

3-pahse, 3-wire 200 to 480 VAC, SPDT

Reference K8DS-PH1

Out-of-Stock

S$34.30

Tax excluded

Features

• Lineup includes a 17.5-mm slim, compact model.

• Greater resistance to inverter noise.

• Distinguishes between correct phases, phase sequence, and phase loss when power is turned ON.

• Supports phase loss detection when the motor is operating.

• Output status can be monitored using LED indicator.

• Ideal to prevent reverse operation of motors.

Dimensions

Specifications

Input voltage range		200 to 480 VAC
Input frequency		50/60 Hz (no presumed range)
Overload capacity		Continuous 500 V
Phase loss detection level		80%±10% of rated input Calculation Formula = 1 - ((Highest phase-to-phase voltage - Lowest phase-to-phase voltage)/ Average three-phase phase-to-phase voltage)
Applicable standards	Conforming standards	EN 60947-5-1 Installation environment (pollution level 2, installation category III)
	EMC	EN 60947-5-1
	Safety standards	UL 508 (Recognition), Korean Radio Waves Act (Act 10564), CSA: C22.2 No.14, CCC: GB/T 14048.5
Insulation resistance		20 MΩ min. Between external terminals and case Between input terminals and output terminals
Dielectric strength		2,000 VAC for one minute Between external terminals and case Between input terminals and output terminals
Noise immunity		1,500 V power supply terminal common/normal mode Square-wave noise of ±1 μs/100 ns pulse width with 1-ns rise time
Vibration resistance		Frequency: 10 to 55 Hz, 0.35-mm single amplitude 10 sweeps of 5 min each in X,Y, and Z directions
Shock resistance		100 m/s², 3 times each in 6 directions along 3 axes
Degree of protection		Terminals: IP20
