Universal install feet, Can use in din rail TH35-7.5/TH35-15/G32-18/G32-15.
Use the bridge and jumper can easy to distribution potential.
Specification
| L/W/H | 6*43*41 mm |
| Nominal cross section | 2.5 mm2 |
| Rated current | 32 A |
| Rated voltage | 800 V |
| Color | Grey |
| Insulating material | PA66 |
| Connection type | Screw |
| Screw type | M3 |
| The minimum cross section(Rigid wire) | 0.2 mm2 |
| The maximum cross section(Rigid wire) | 4 mm2 |
| The minimum cross section(Soft wire) | 0.2 mm2 |
| The maximum cross section(Soft wire) | 2.5 mm2 |
| Cover | SUK-2.5XG |
| Bridge | UFB1 10-6 |
| Jumper | UEB 10-6 |
| Marker | ZB6 |

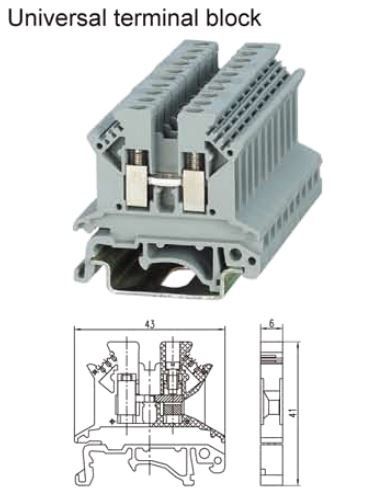

Dimensions
