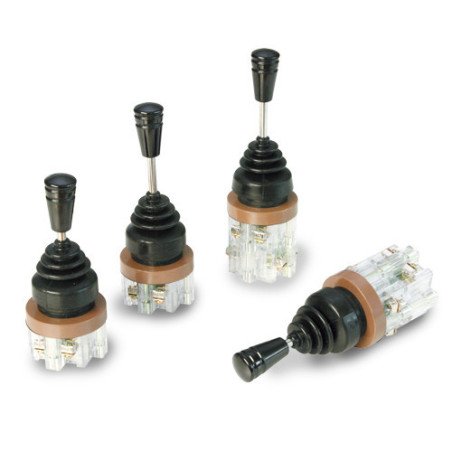

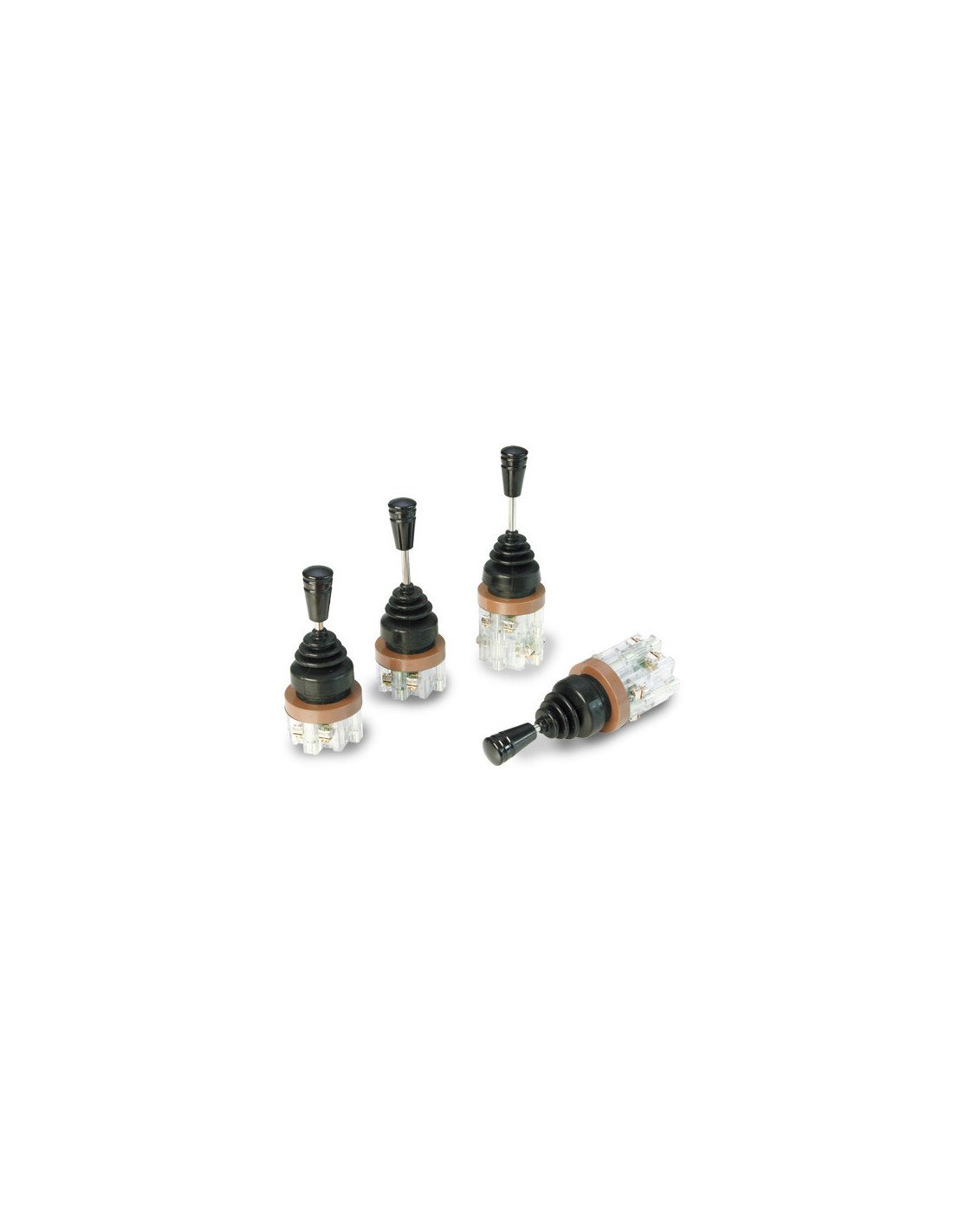

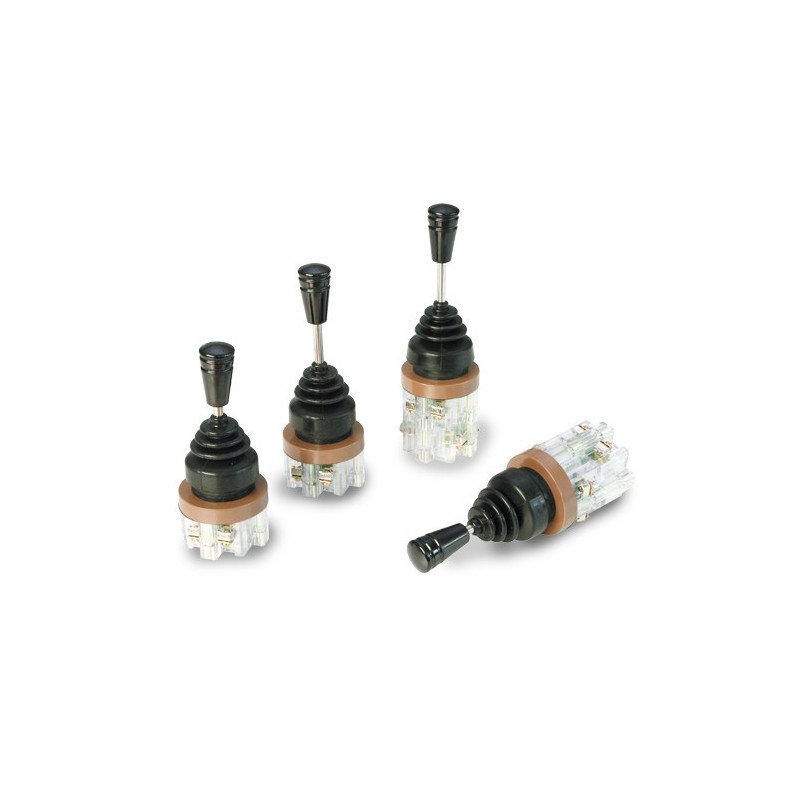

- 1 single level support 4 different directions.
- Minimizing malfunction with tilted operation.
- Suitable for frequent direction switching.
- Auto returning, manual returning and mixed returning selectable.
- Flexible circuit configuration of contact part with installation hole 30.
· Suffix code
| Model | Code | Description | ||
| LE |  |
|
|
Mono lever switch |
| Lever selection | L | Long lever | ||
| S | Short lever | |||
| Stage selection | 01 | Select 1 position | ||
| 02 | Select 2 positions | |||
| 03 | Select 3 positions | |||
| 04 | Select 4 positions | |||
| Returning type | 1 | Auto returning | ||
| 2 | Manual returning | |||
| ※ Mixed returning type is an order-made product so when placing an order please record the returning |
| operation within each channel. Standard contact composition (each direction of product) is 1a. |
· Specification
| Model | Long lever | Short lever |

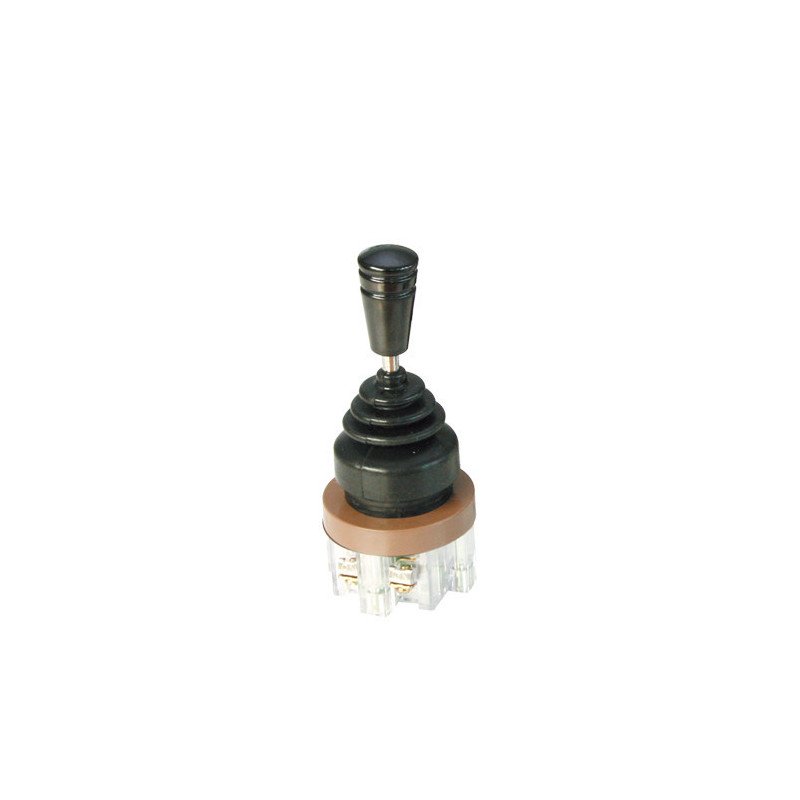

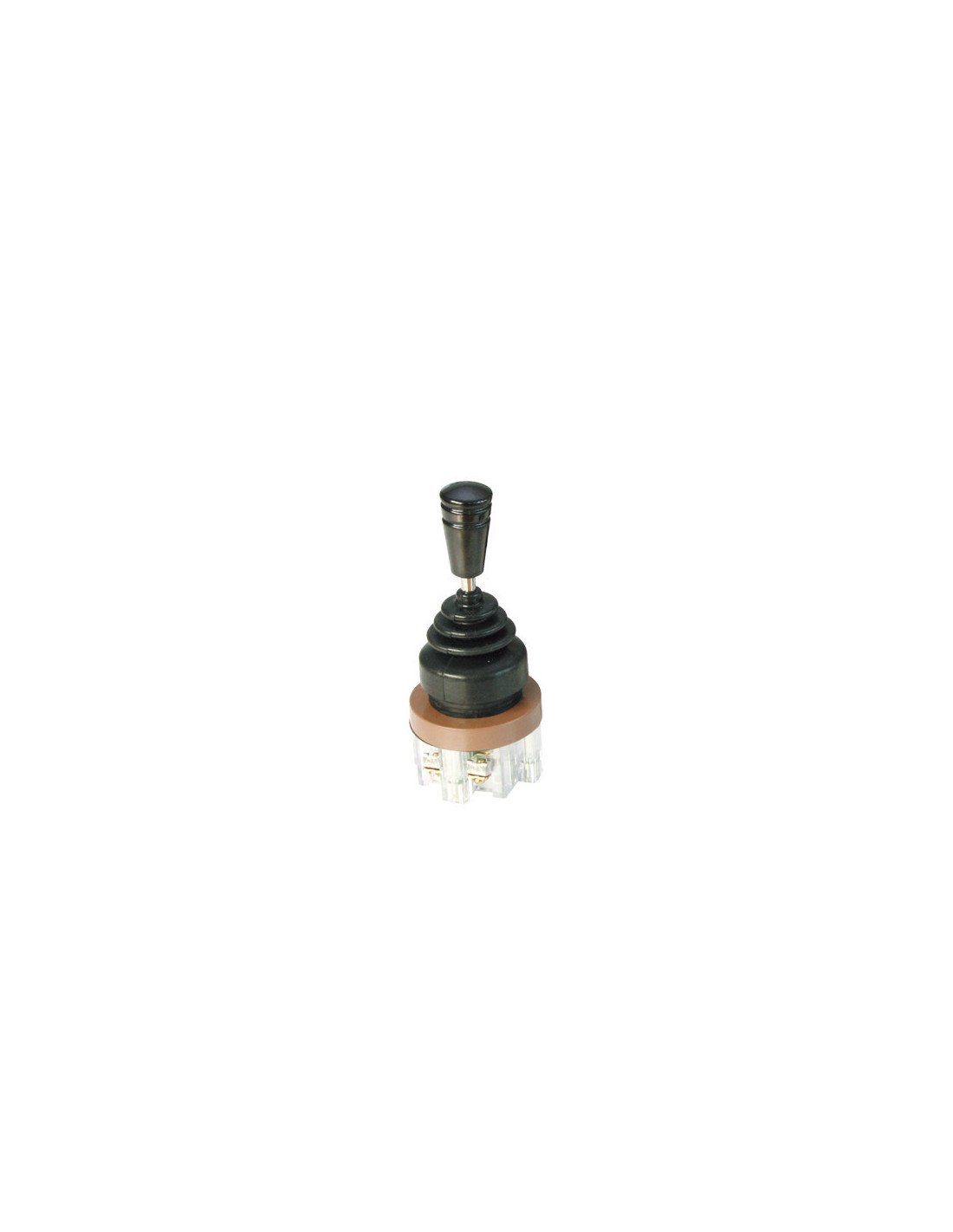

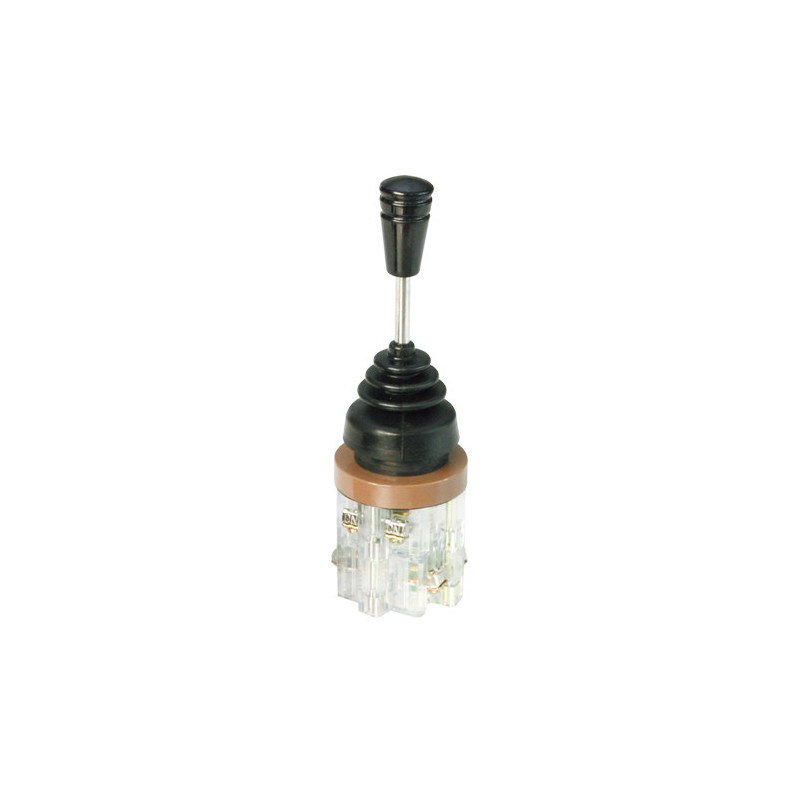

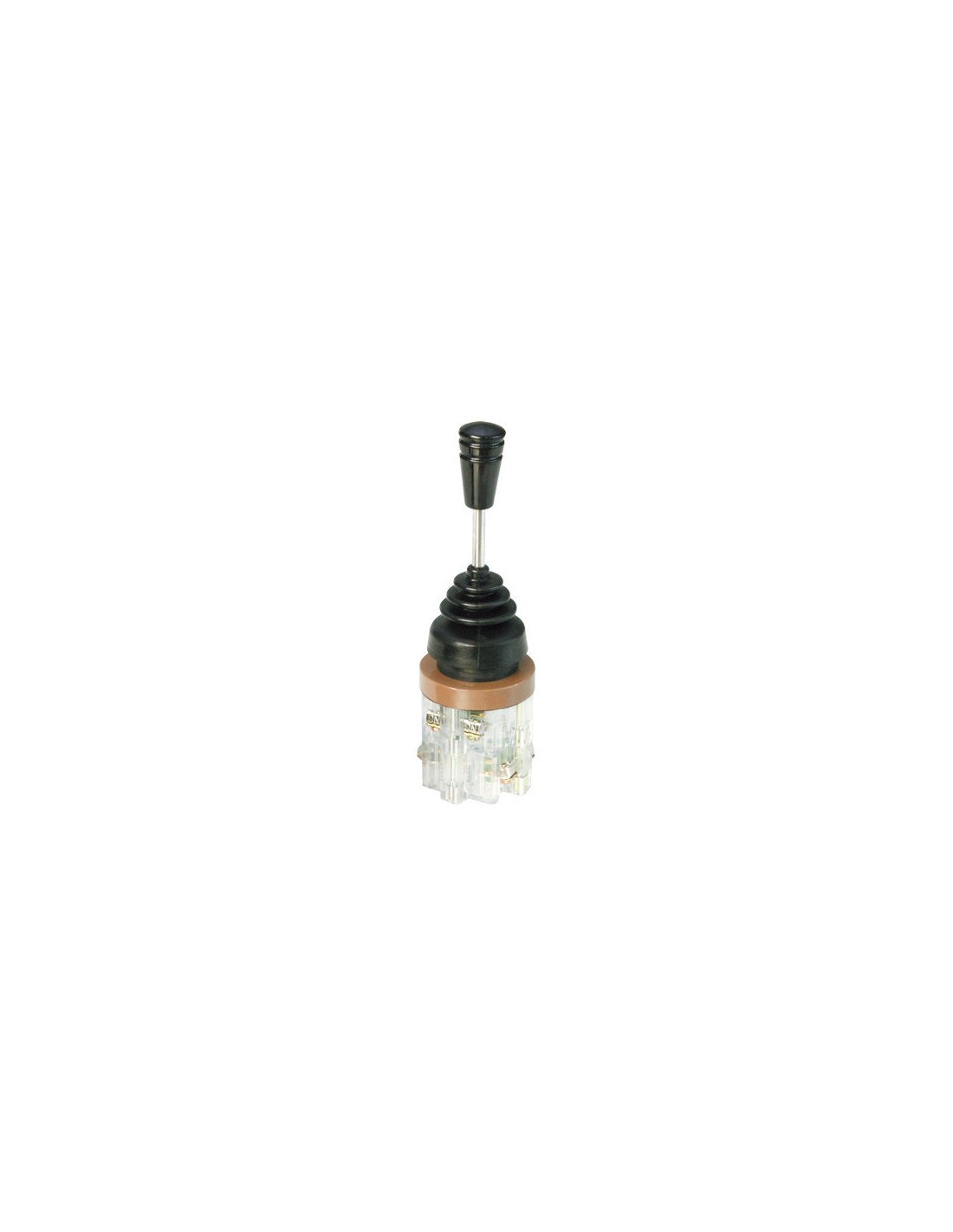

| Appearance |  |
 |
| Rated insulation voltage | 600 V | |
| Rated electro current | 3 A 250 V a.c | |
| Contact composition | Double block Slow-make (1 line 2 contacts, max forming line : 4) | |
| Insulation resistance | 100 mΩ (500 V d.c) | |
| Dielectric strength | 2500 V a.c, for 1min (between the recharging part and non recharging part) | |
| Contact resistance | Max 20 ㏁ (default value) | |
| Mechanical life expectancy | Above 500 thousand times | |
| Electrical life expectancy | Above 100 thousand times | |
| Ambient temperature | -20 ~ 50 ˚C | |
| Ambient humidity | 45 ~ 85 % R.H. | |
