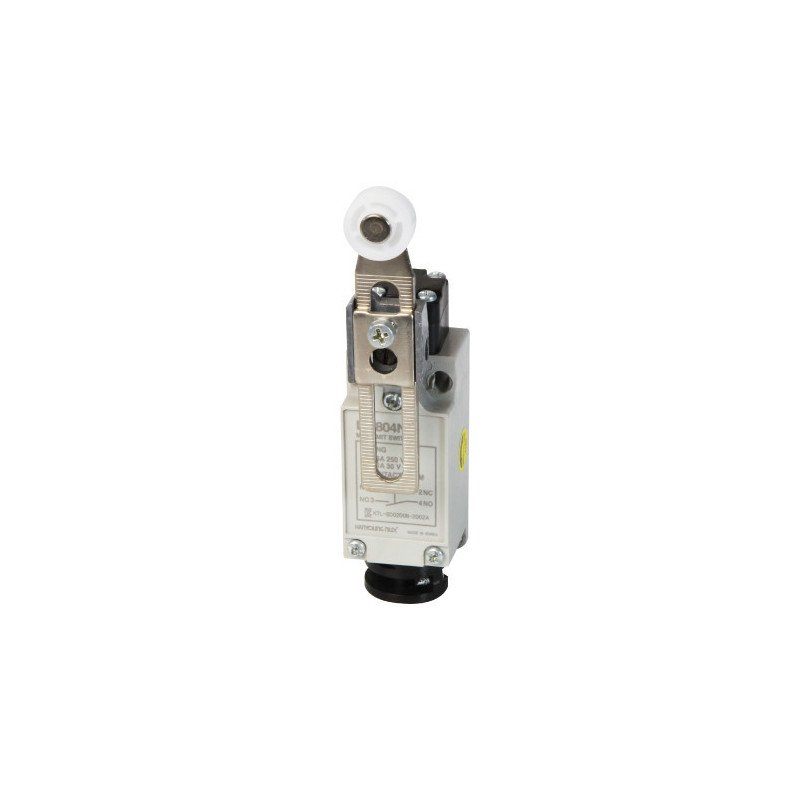

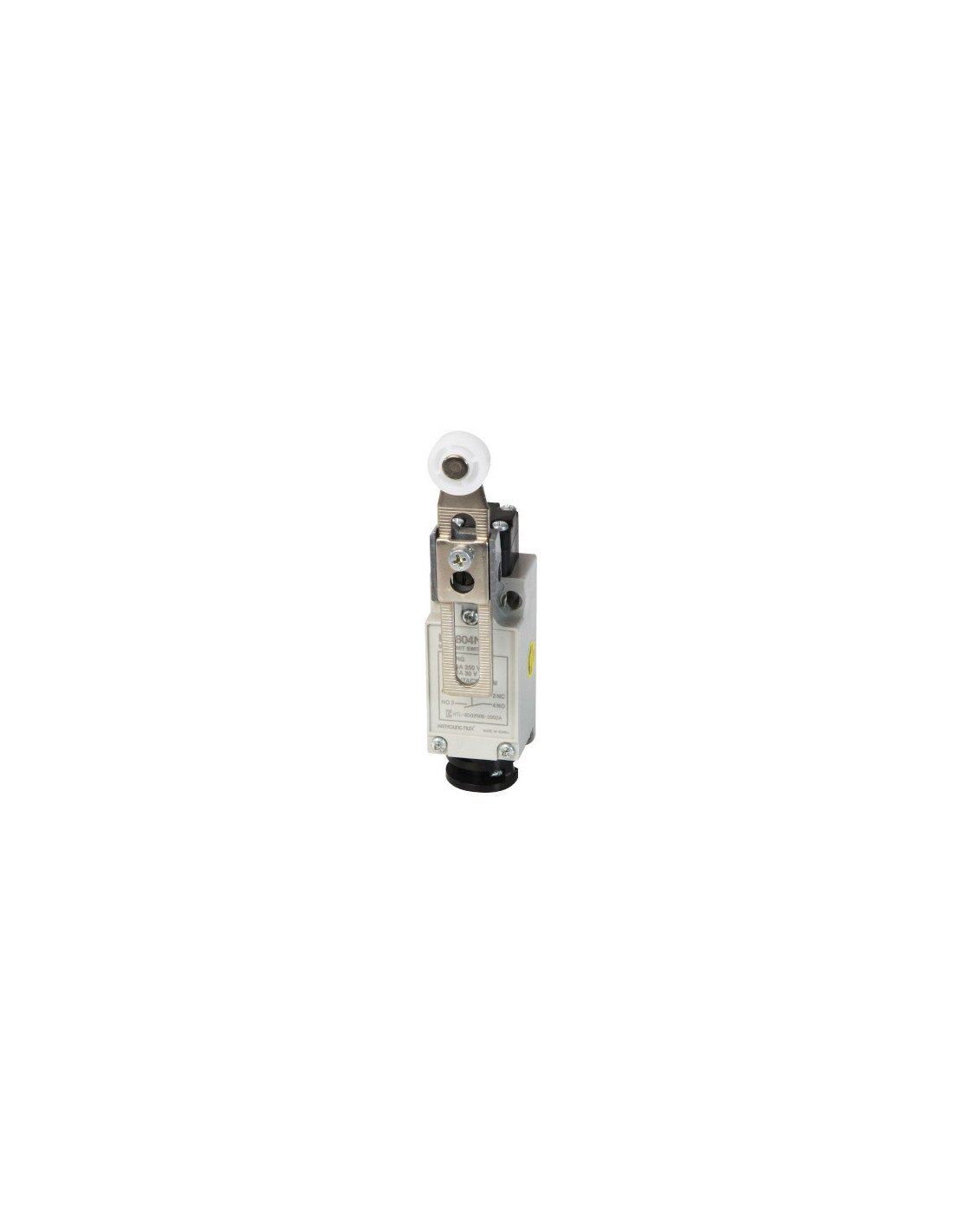

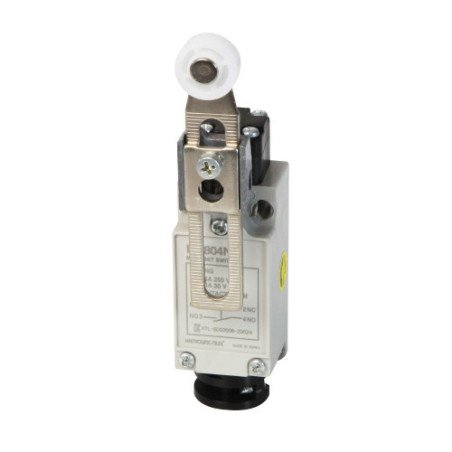

- Compact size and light weight by applying the plastic case
- Plastic case which provides safety regarding the electric leakage
- Various actuators (6 types) provide wide application
- IP54 protective structure (Applied only when using our company connector model HYC-M1 in the wire opening)
- Connector rating of wire opening : 1/2 PF

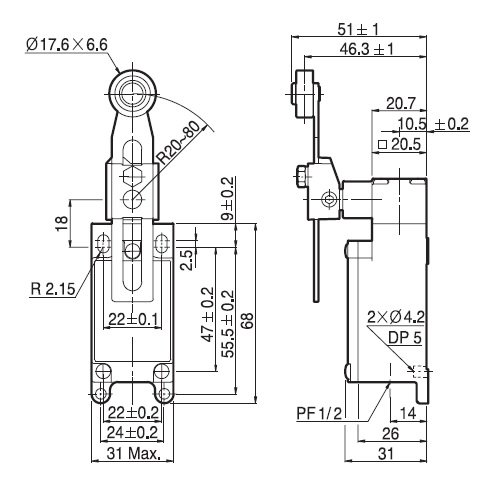

Dimensions
| Model | Roller plunger | Push plunger | Roller arm | Roller Adjustable Lever | Adjustable Rod Lever | Roller Lever | |
| HY-LS802N | HY-LS803N | HY-LS803RN | HY-LS804N | HY-LS807N | HY-LS808N | ||
| Appearance |  |
 |
 |
 |
 |
 |
|
| Contact structure | M3 screw tightening terminal, 2 circuits double type (1a1b) | ||||||
| Contact material | AgNi | ||||||
| Protective structure | IP54 (Only when using our company product HYC-M1, M2 in the wire opening) | ||||||
| Rated current(le) | 6 A 250 V a.c, 4 A 30 V d.c (AC-12, AC-13, AC-15, DC-13) | ||||||
| Dielectric strength | 2,000 V a.c 50/60 ㎐ for 1 min (between the terminal and non-recharing metal part) | ||||||
| Insulation resistance | Min 100 ㏁ (500 V d.c insulated ohmmeter) | ||||||
| Contact resistance | Max 25 ㏁ (default value) | ||||||
| Rated voltage(Ue) | 250 V a.c, 30 V d.c | ||||||
| Actuator intensity | 5 times larger than O.F (required force for the operation), operating direction 1 min | ||||||
| Vibration | Double amplitude 1.5mm, frequency 10 ~ 55 ㎐, continuously 2 hour | ||||||
| Shock | 100 ㎨ (durability), 50 ㎨ (malfunction) | ||||||
| Allowable operation speed | 0.1 ~ 0.5 ㎧ (without damaging the actuator) | ||||||
| Life expectancy |
Mechanical | Min 1 million times (less than open/close frequency 120 times/min) | |||||
| Electrical | Min 100 thousand times (less than open/close frequency 30 times/min) | ||||||
| Ambient temperature | -10 ~ 70 ℃ | ||||||
| Ambient humidity | 45 ~ 95 % R.H. | ||||||
| Weight | Approx 60g (HY-LS803N) | ||||||
