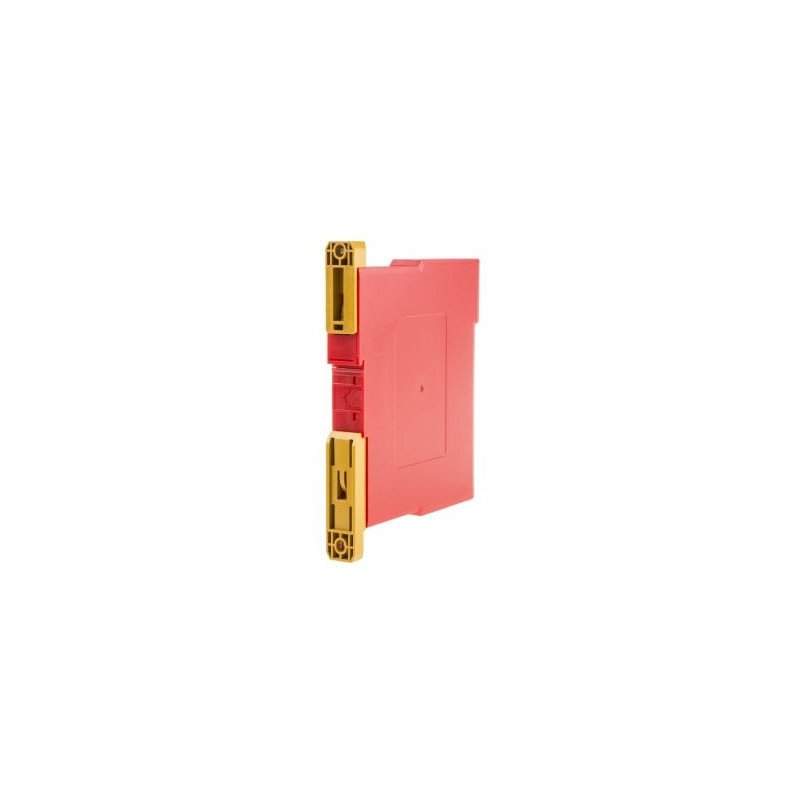

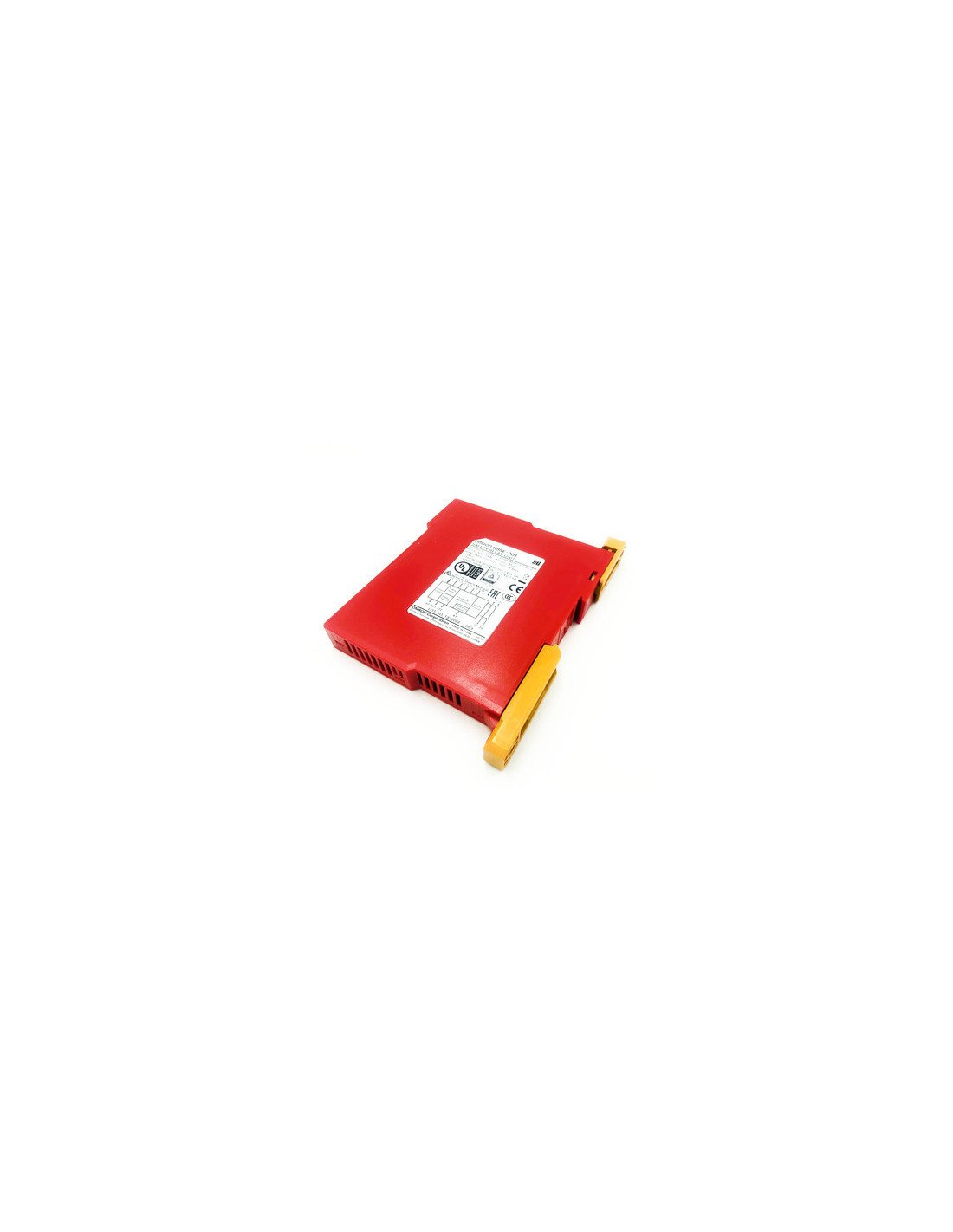

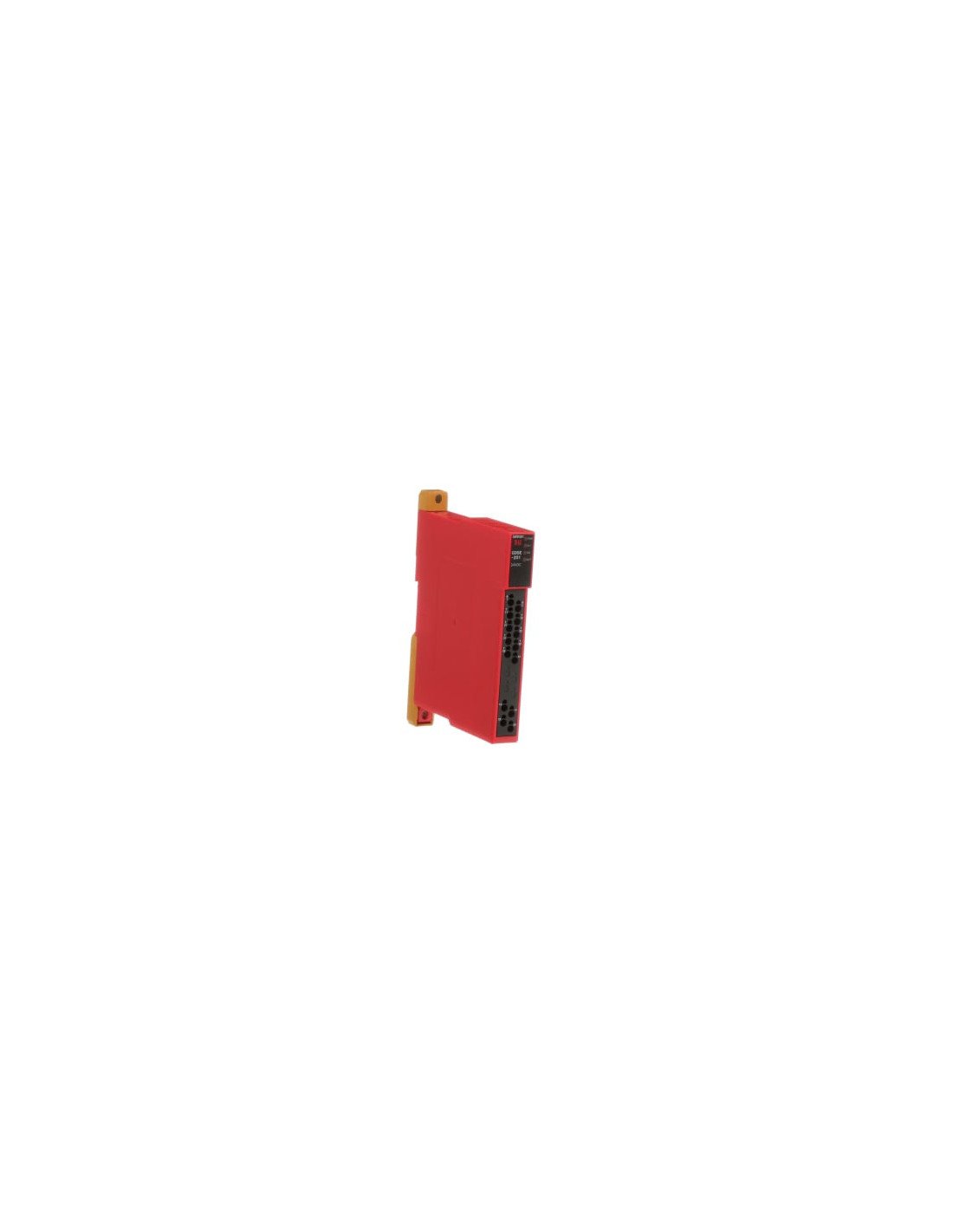

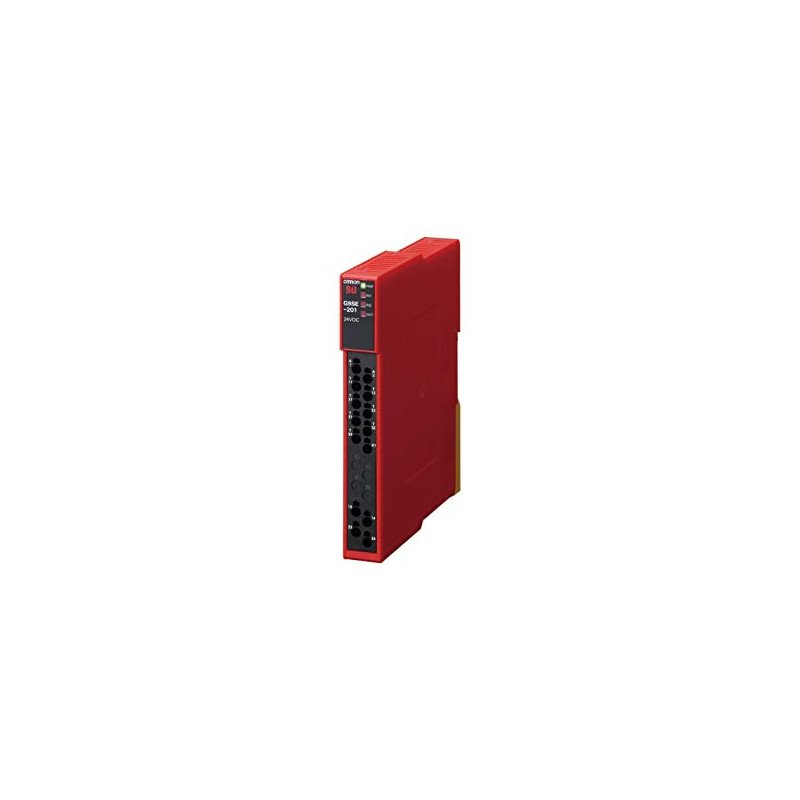

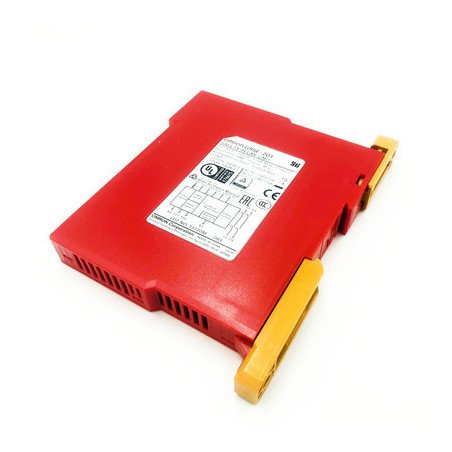

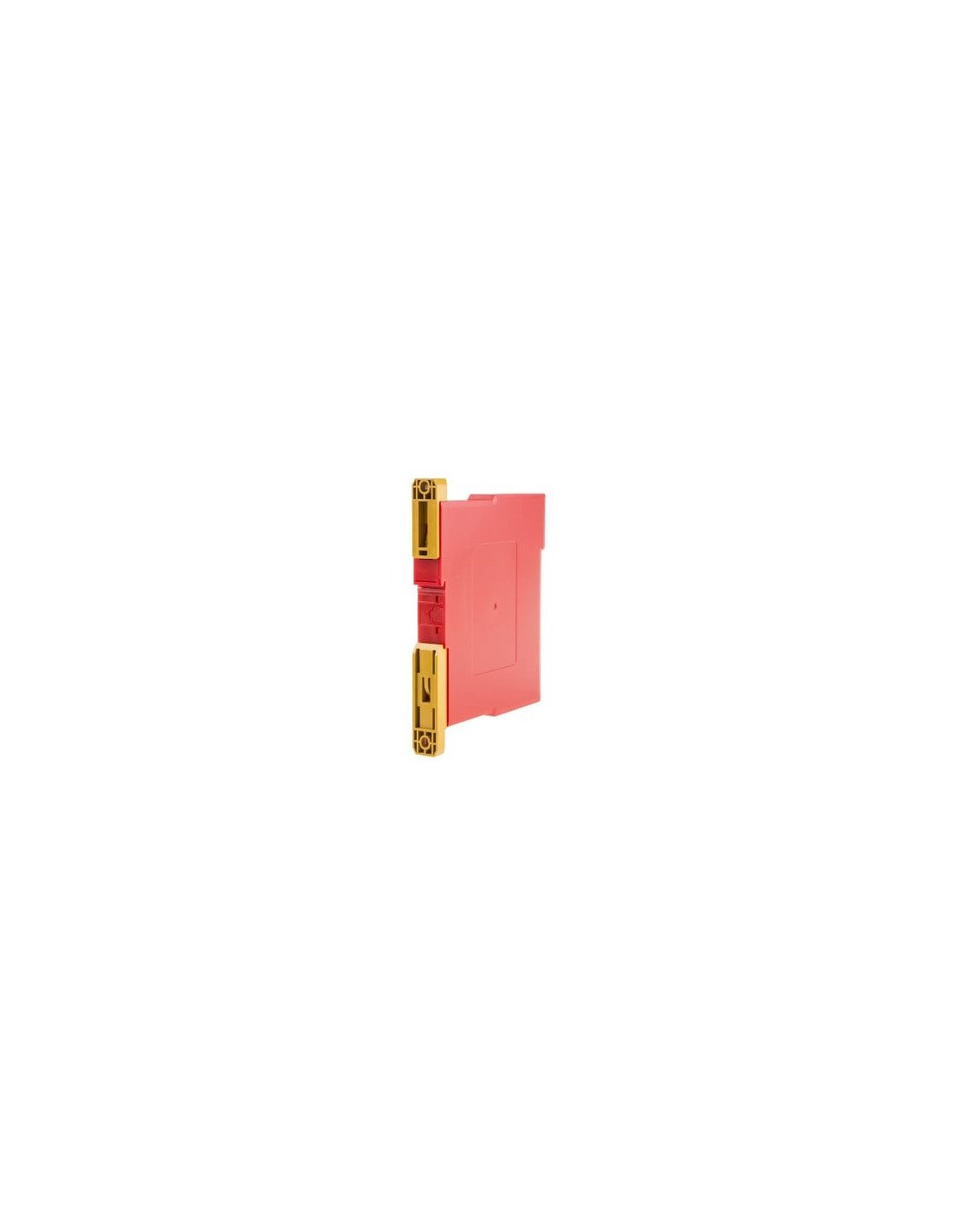

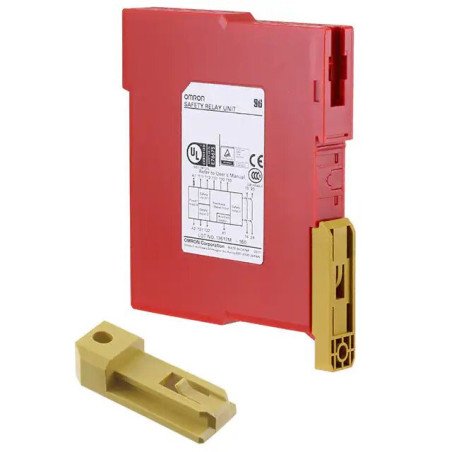

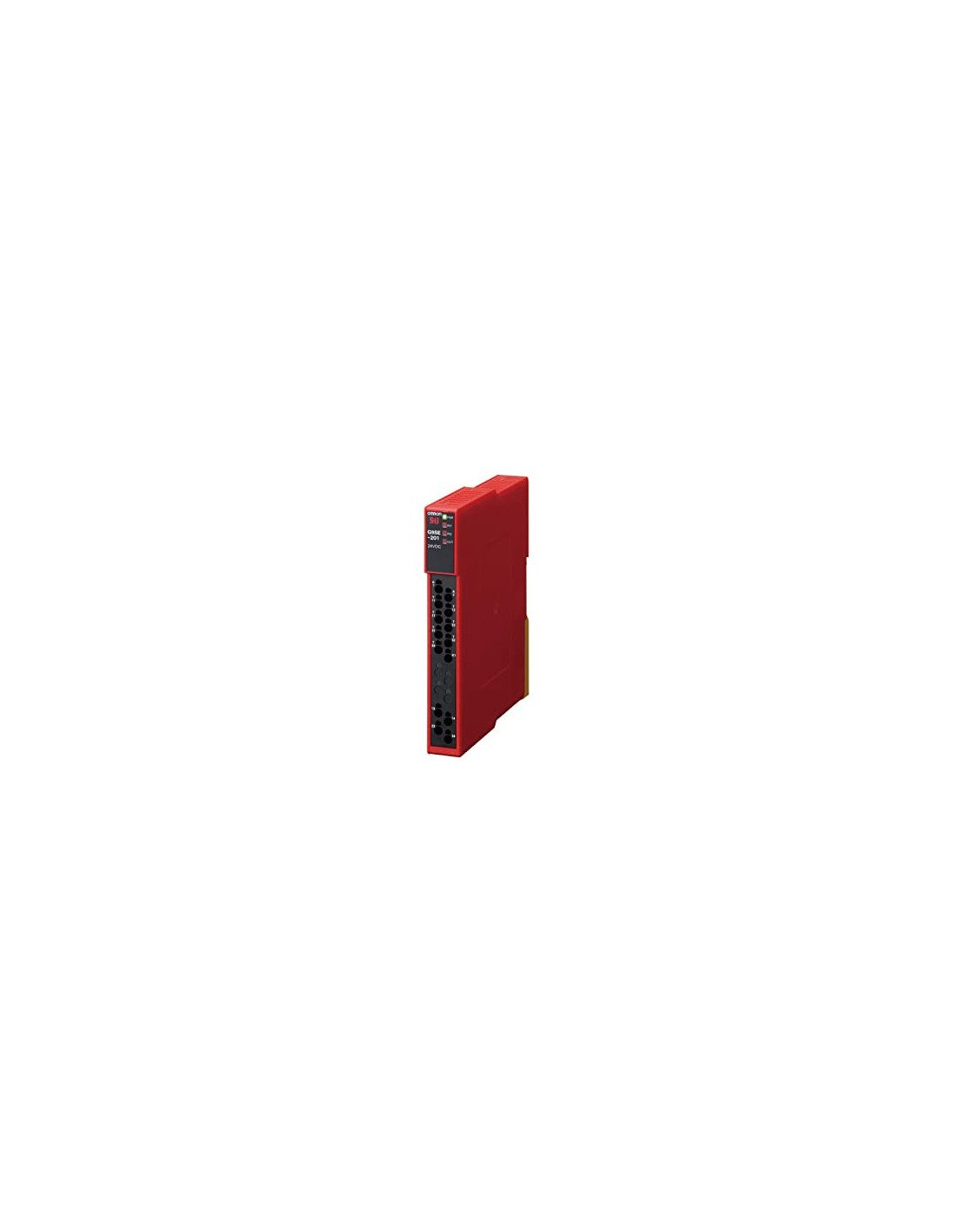

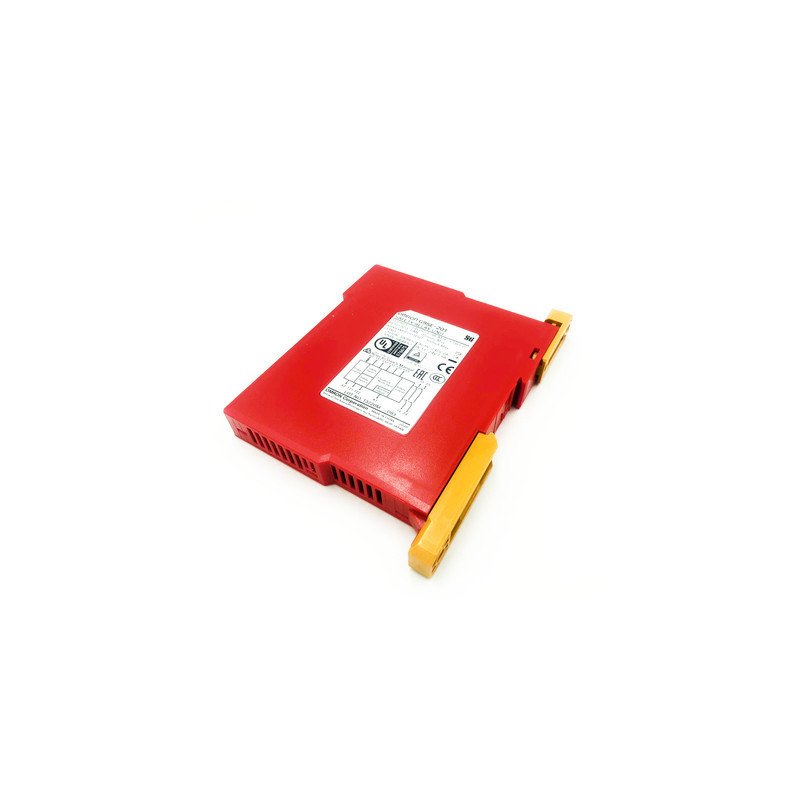

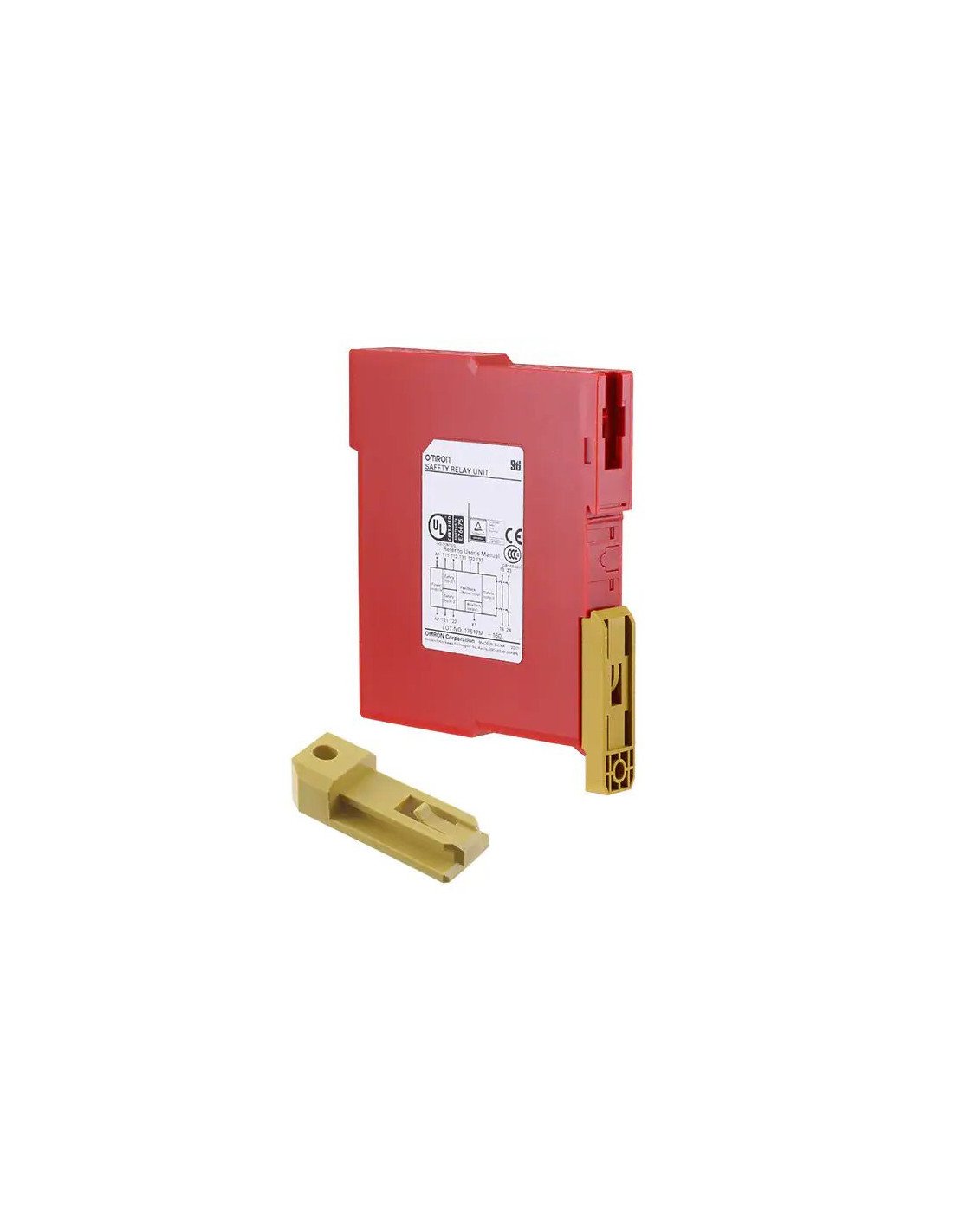

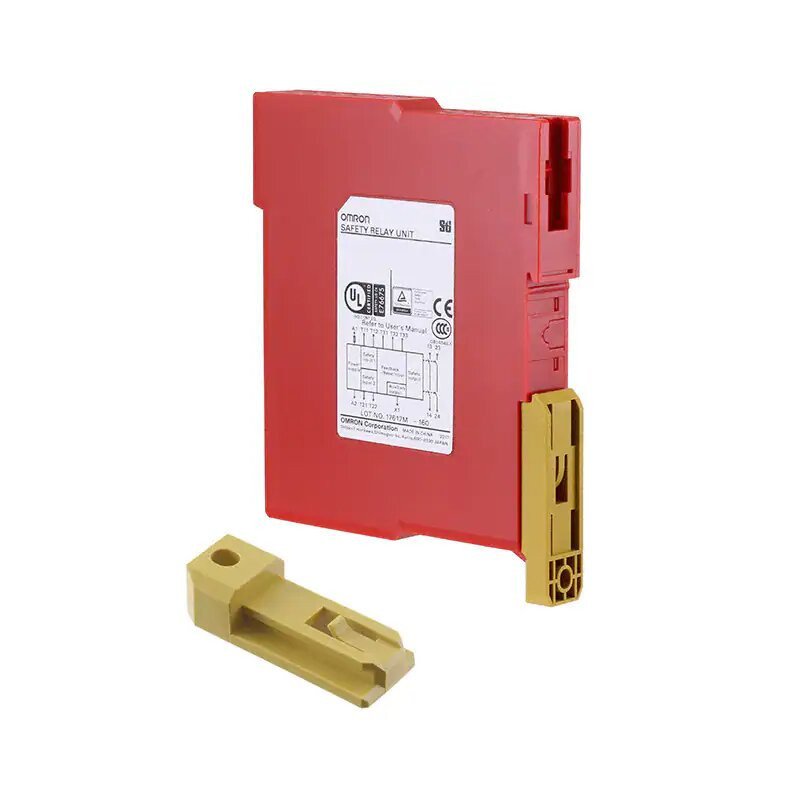

Omron's new G9SE series of safety relay units offers an easy approach for various simple safety applications. The G9SE saves mounting space, lowers installation cost with Push-In Plus terminal block, and reduces operational cost with intuitive diagnostic indicators.
The slim design of only 17.5 or 22.5 mm saves space in the control panel.
| Safety outputs | Auxiliary outputs *3 | Max. OFF-delay time *1 | Rated voltage | Model | |
|---|---|---|---|---|---|
| Instantaneous | OFF-delayed *2 | ||||
| DPST-NO | - | 1 (Solid-state) | - | 24 VDC | G9SE-201 |
| 4PST-NO | G9SE-401 | ||||
| DPST-NO | DPST-NO | 5 s | G9SE-221-T05 | ||
| DPST-NO | DPST-NO | 30 s | G9SE-221-T30 | ||
