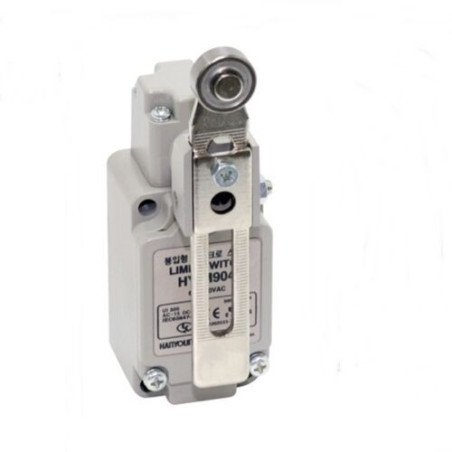

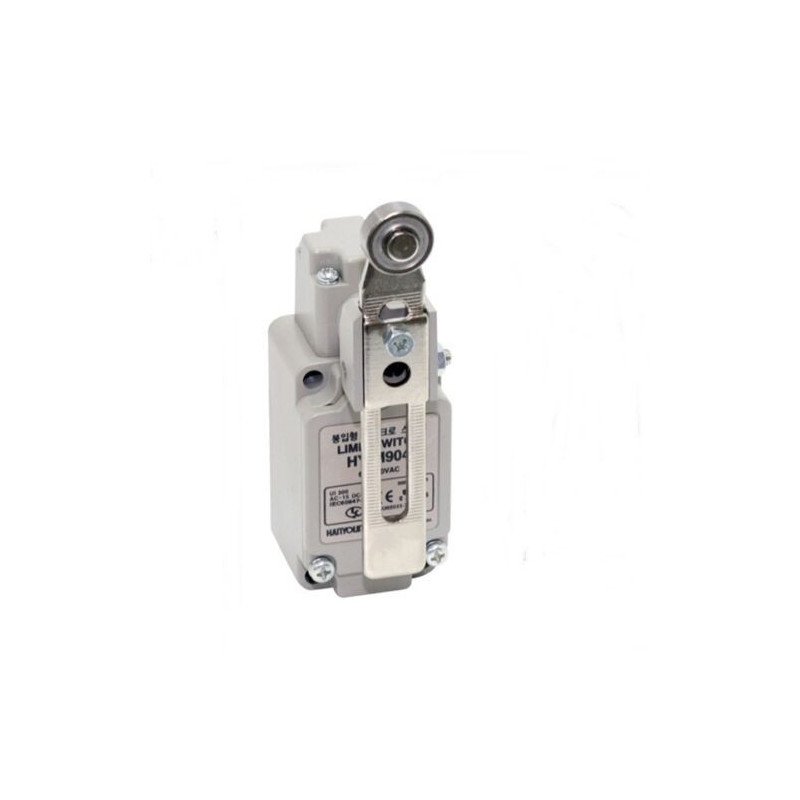

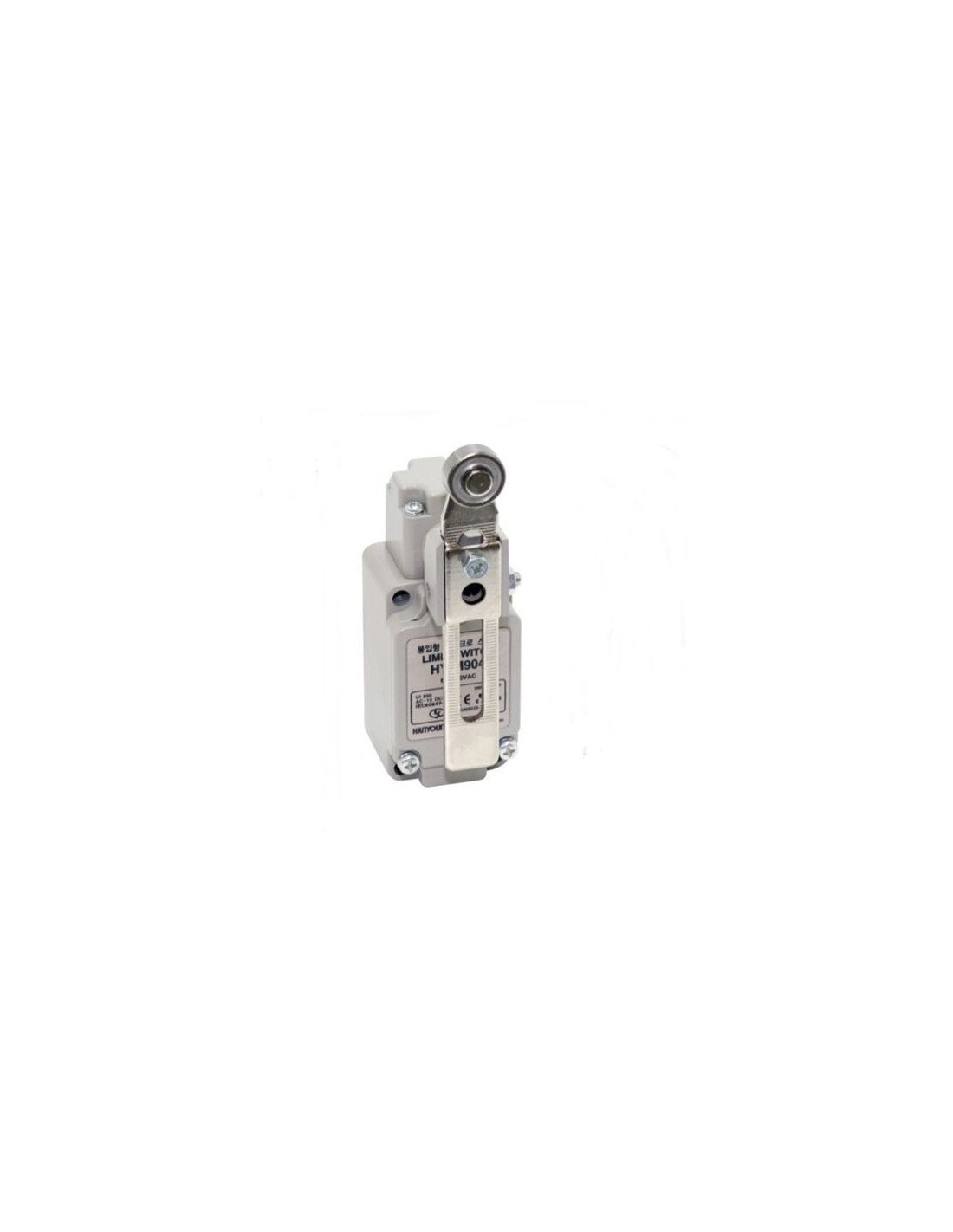

Hanyoung HY-M904 Limit Switch
Hanyoung HY-M904 Limit Switch

Hanyoung HY-M904 Limit Switch

Roller Adjustable Lever Type

Last items in stock
S$52.80
Tax excluded



- Solid die casting case and built in the 2 circuits double micro switch
- High mechanical intensity with the heat resistance, oil proof and dust protection structure
- Various actuators (8 types) provide wide application
- IP67 protective structure (when using the company product HYC-M1 in wire opening)
- Check the operation state on the outside by attaching the operation indicator.

Model M/LM902 M/LM903 M/LM904 M/LM907 M/LM908 M/LM909 M908L M908R
Appearance
Contact structure M4 screw tightening terminal, 2 circuits double type (1a1b)
Contact material AgNi
Protective structure IP67 (Only when using our company product HYC-M2 in the wire opening)
Operation indicator a.c : Neon lamp, d.c : LED (only with the HY-LM series)
Rated current(le) 6 A 250 V a.c (AC-15, DC-13)
Dielectric
strength		 2,000 V a.c 50/60 ㎐ for 1 min
(between the terminal and non-recharing metal part)
Insulation resistance Min 100 ㏁ (500 V d.c insulated ohmmeter)
Contact resistance Max 50 mΩ (default value)
Rated voltage(Ue) 250 V a.c, 30 V d.c
Actuator intensity 5 times larger than O.F (force required to operate) 1min to operating direction
Vibration Double amplitude 1.5mm, frequency 10 ~ 55 ㎐, continuously 2 hour
Shock 1,000 ㎨ (durability), 300 ㎨ (malfunction)
Allowable operation speed 0.1 ~ 1 ㎧ (without damaging the actuator)
Life
expectancy		 Mechanical : Min 1million times (open/close frequency 120 times/min)
Electrical : Min 300 thousand times (open/close frequency 20 times/min)
Ambient temperature -10 ~ 80 ℃
Ambient humidity 45 ~ 95 % R.H.
Weight Approx 350 g

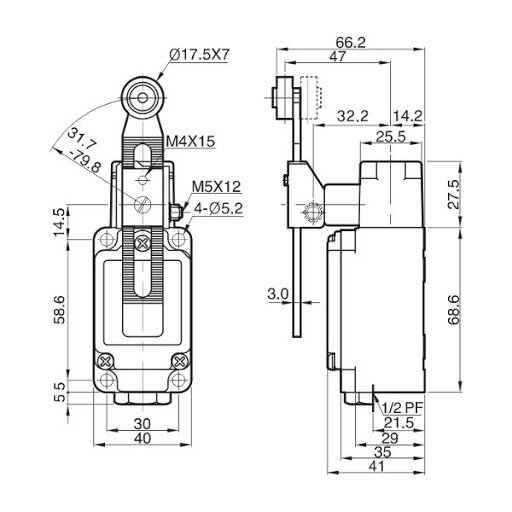

Dimensions
