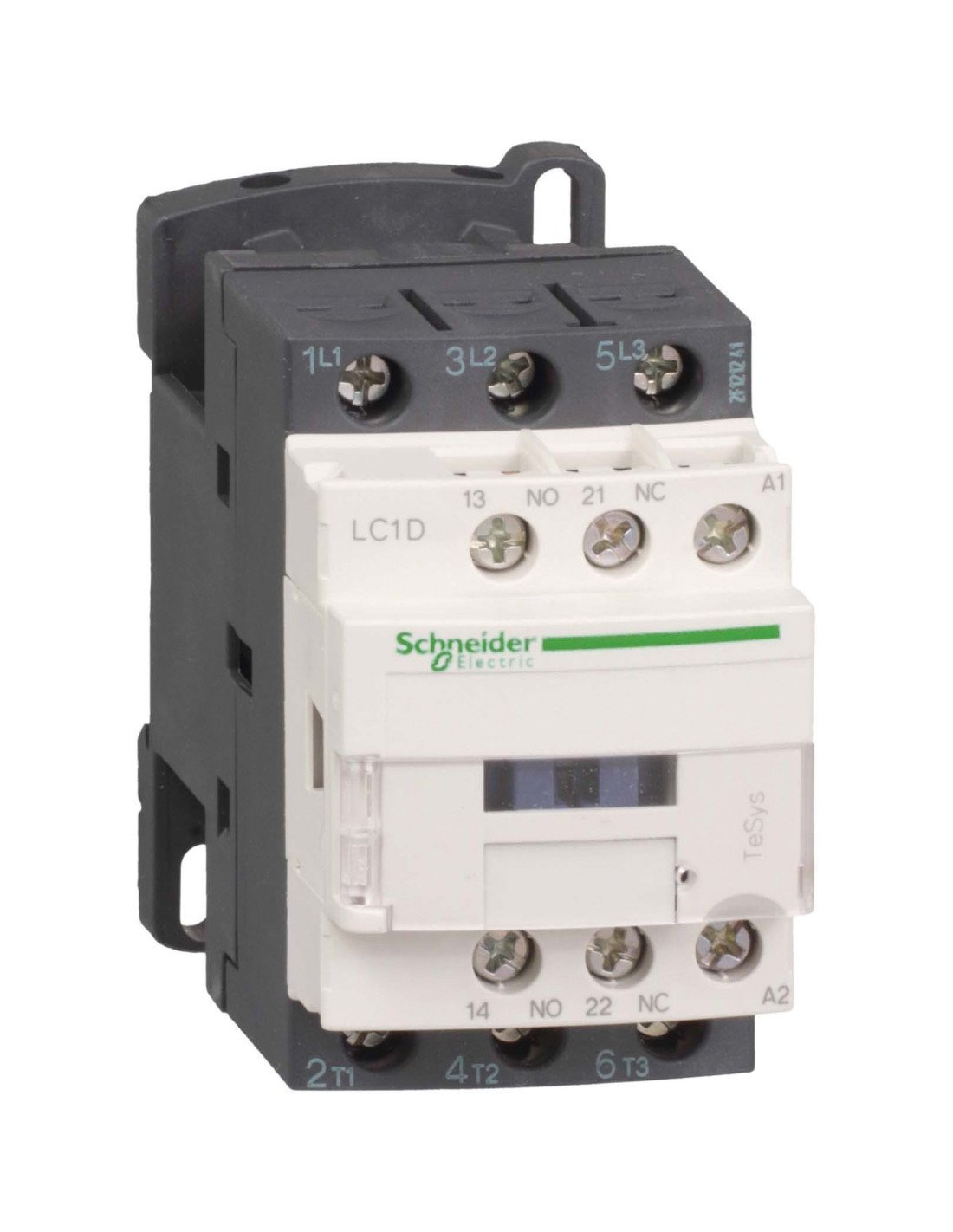

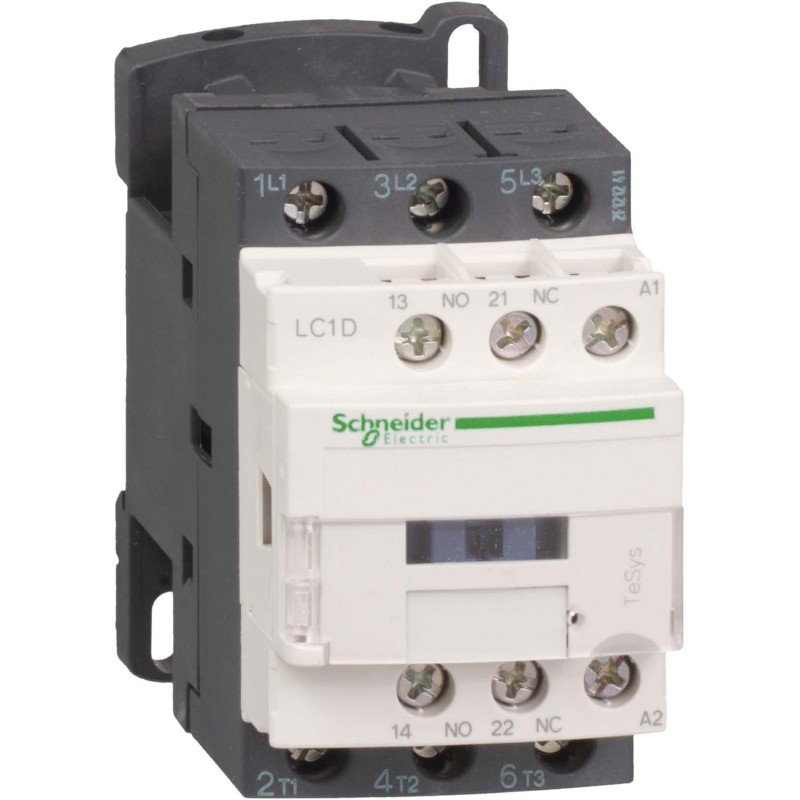

Schneider TeSys LC1D 3 Pole AC-3 Contactors

Specifications:

• AC & DC Coils 50/60 Hz available for whole range
• DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A
• DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
• Various types of connection available:
  • Screw clamp terminals
  • Everlink (40 to 80 A)
  • Spring terminals (9 to 38 A and on control terminal up to 65 A)
  • Lugs terminals
  • Faston terminal (9 to 12 A)
• High making and breaking capacity
• 1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors
• Safety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1
• Up to 30 million mechanical operation cycles
• Electrical cycles up to 3600 cycles per hour at ambient temperature
• No derating up to 3000 m altitude
• Wide range of working temperature: -25°C to 60°C

Dimensions: 4 width sizes available to cover all ratings

• 45 mm to 38 A
• 55 mm from 40 to 65 A
• 85 mm from 80 to 95 A
• 120 mm from 115 to 150 A
