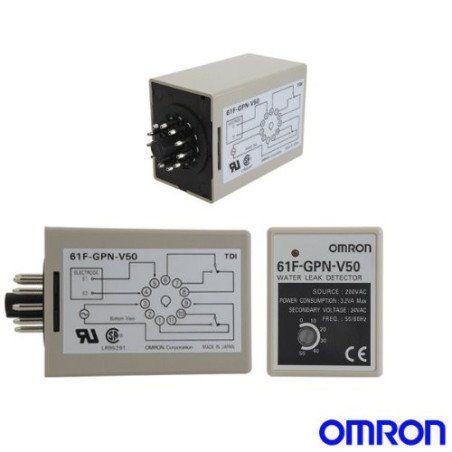

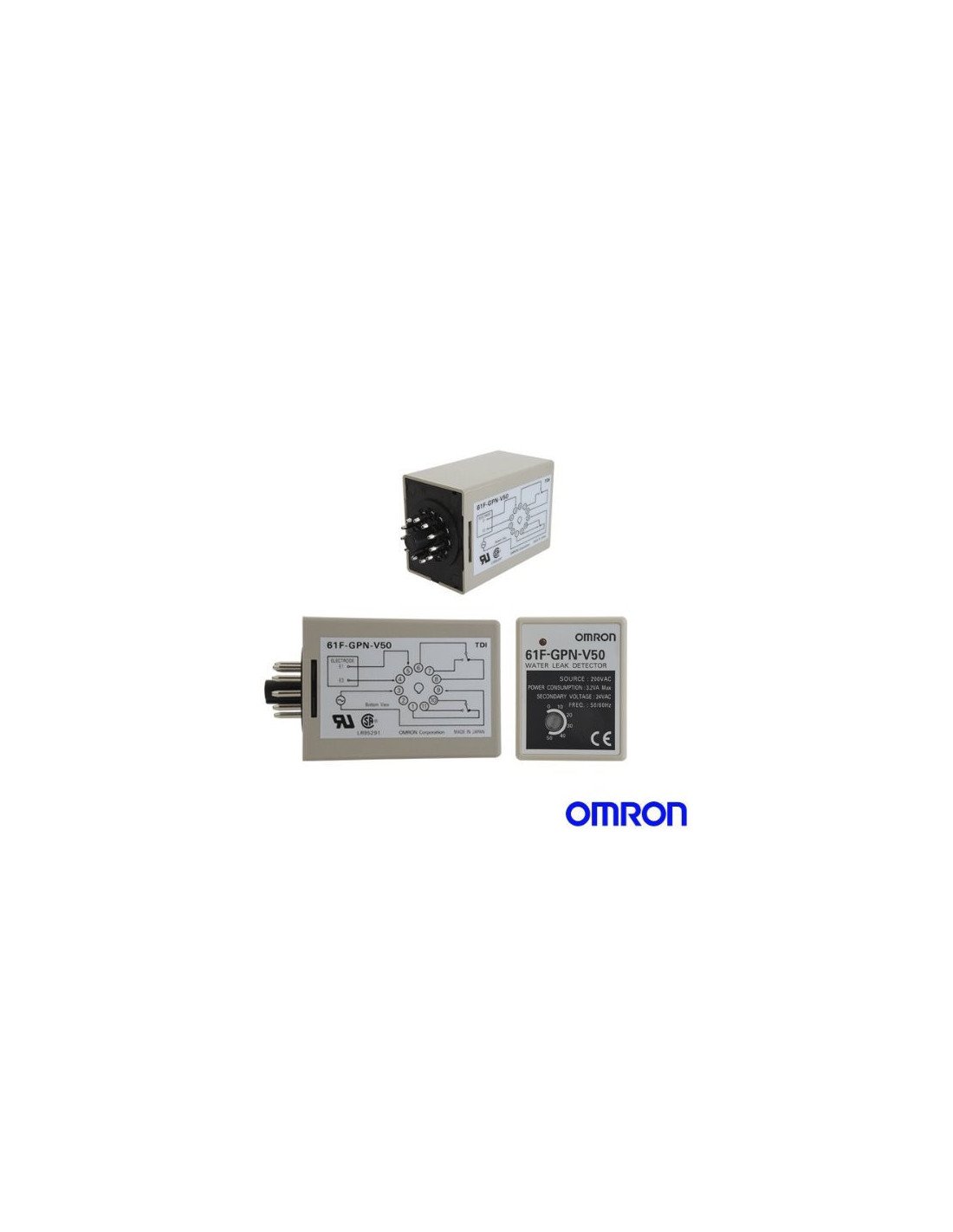

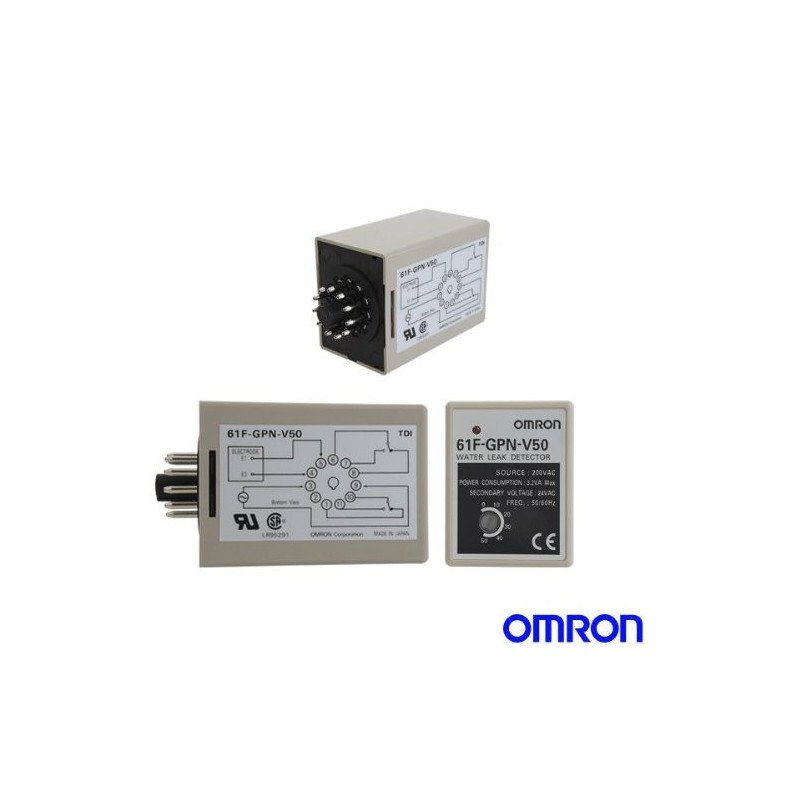

Omron 61F-GPN-V50 Water Leak Detector (Obsolete)
Omron 61F-GPN-V50 Water Leak Detector (Obsolete)

Omron 61F-GPN-V50 Water Leak Detector (Obsolete)

Flexible Setup according to Water Quality and Surrounding Wiring Conditions

Replacement Model:

61F-WL-CP11-NRA 100-240 VAC

Coil voltage
61F-GPN-V50 AC220



• The operating resistance has a variable sensitivity from 0 to 50 kΩ, so the best set values can be made according to the predicted water leakage, degree of overflow, water quality, or surrounding wiring conditions.

• The power supplied to the Sensing Band is 24 VAC, so operation is stable because there is no electrode deterioration from electrical corrosion.

• A contact signal output enables monitoring from remote locations.

Dimensions

(Unit: mm)

61F-GPN-V50 Water Leak Detector

61F-GPN-V50 Dimensions 1
