Voltage supply
Display
I/O

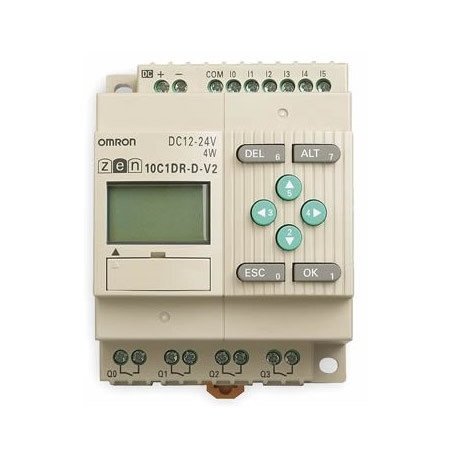

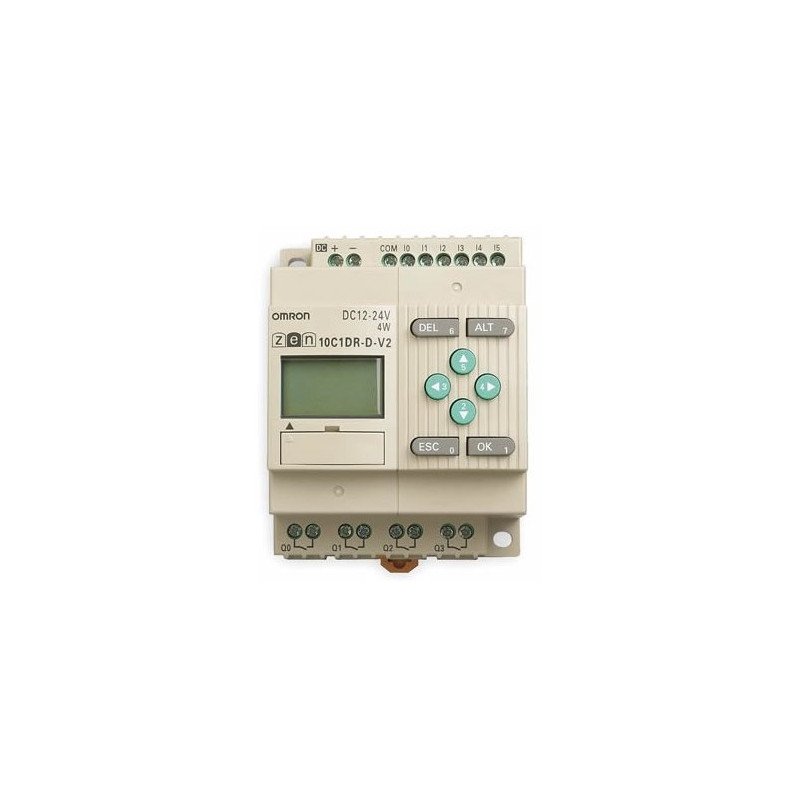

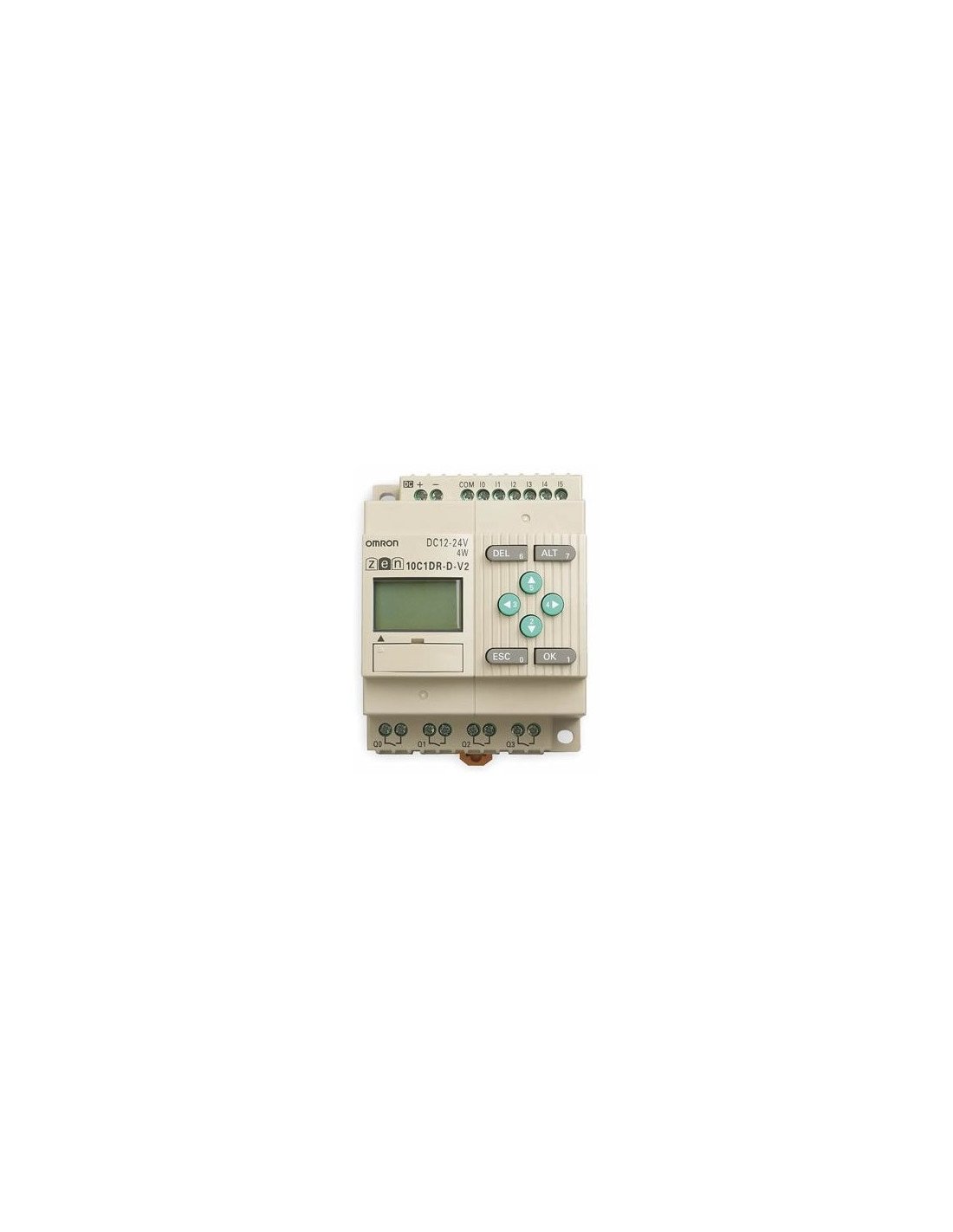

ZEN-10C1DR-D-V2
S$264.00
Tax excluded



With the choice of 4 different 10 I/O CPU units, Omron ZEN-10C fulfills all needed functionality to do all kind of control automation. Three of them (C1/C2/C4) are expandable up-to 34 I/O. The C3 has fixed 10 I/O. All DC models have analogue input and a high-speed counter input up to 150Hz. The C4 model is equipped with communication.

  • DC input/supply units have analogue input + high speed counter
  • The ZEN-10C4 has RS-485 communication
  • Expansion available with relay output or transistor output

CPU Units and Expansion I/O Units



Unit Name No. of
I/O
points		 LCD
display		 Power
supply
voltage		 Inputs Outputs Buttons,
calendar,
and clock		 Analog
input		 Model
CPU
Units		 Standard
LCD type		 10 Yes 100 to
240 VAC		 6 100 to

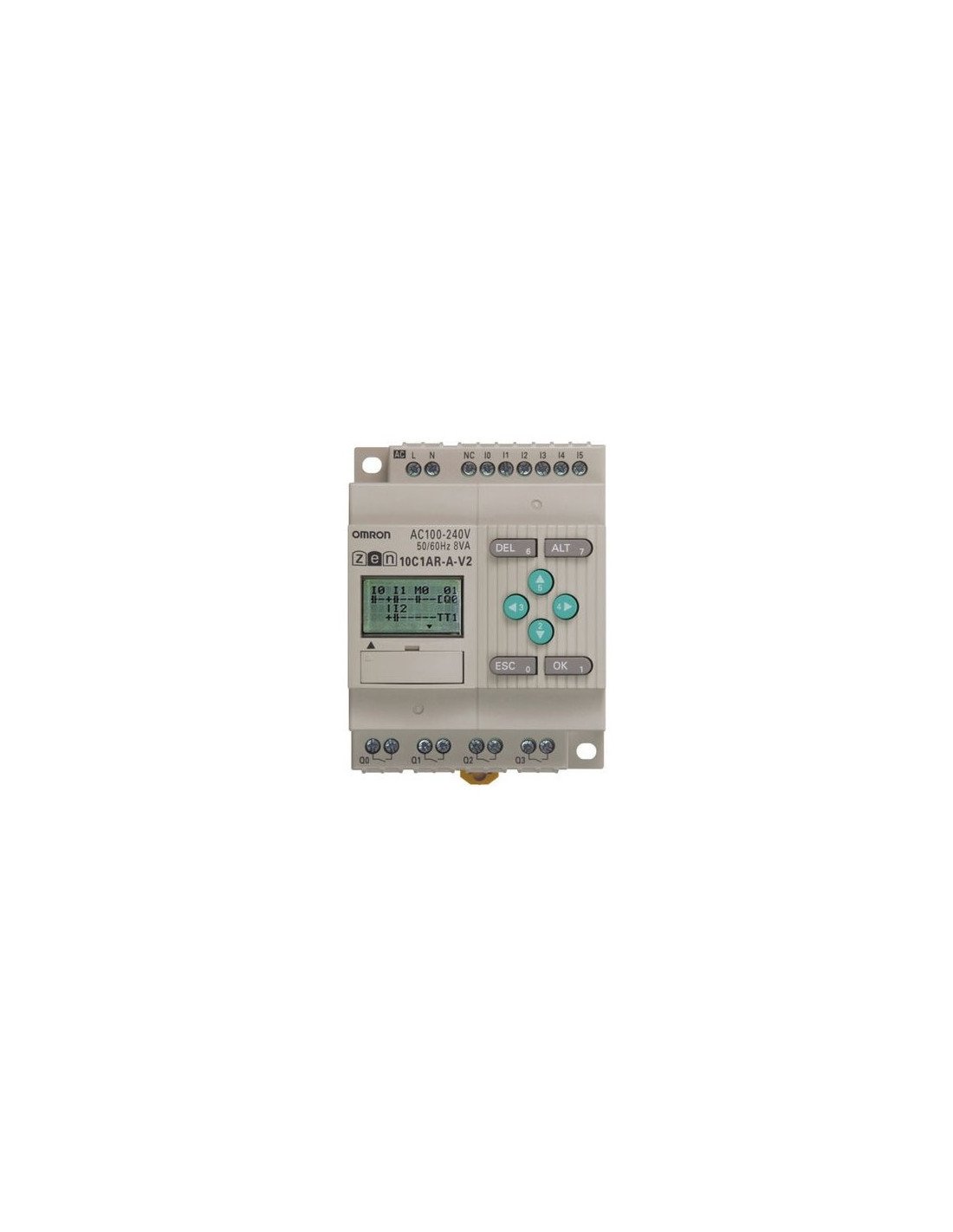

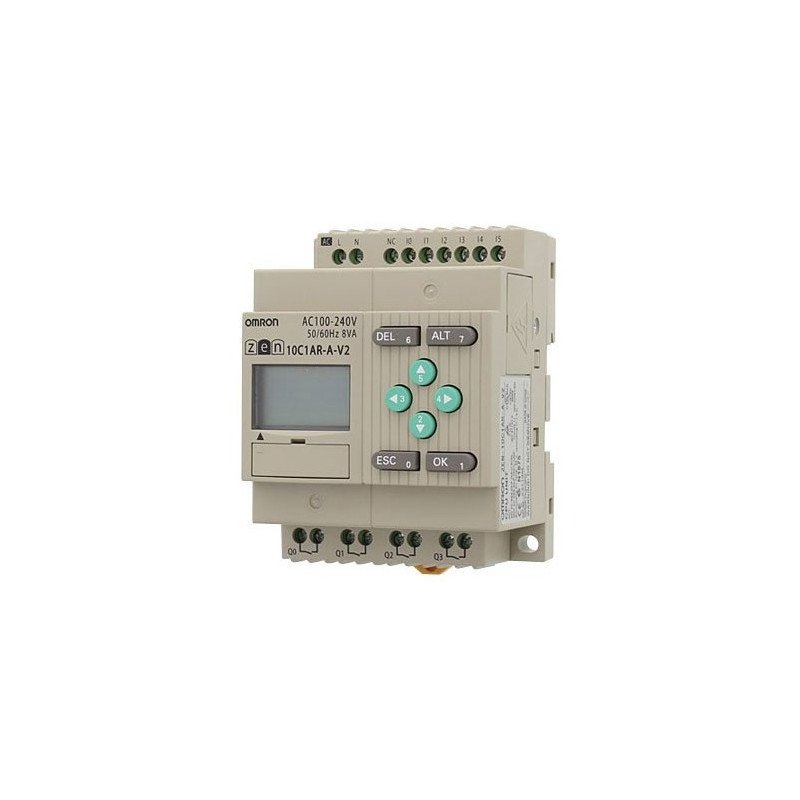

240 VAC		 4 Relays Yes No ZEN-10C1AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-10C1DR-D-V2
Transistors ZEN-10C1DT-D-V2
20 100 to
240 VAC		 12 100 to
240 VAC		 8 Relays No ZEN-20C1AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-20C1DR-D-V2
Transistors ZEN-20C1DT-D-V2
LED type
without
display
*1		 10 No 100 to
240 VAC		 6 100 to
240 VAC		 4 Relays No No ZEN-10C2AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-10C2DR-D-V2
Transistors ZEN-10C2DT-D-V2
20 100 to
240 VAC		 12 100 to
240V AC		 8 Relays No ZEN-20C2AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-20C2DR-D-V2
Transistors ZEN-20C2DT-D-V2
Economy
type
(Expansion
I/O Units
cannot be
connected)		 10 Yes 100 to
240 VAC		 6 100 to
240 VAC		 4 Relays Yes No ZEN-10C3AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-10C3DR-D-V2
20 100 to
240 VAC		 12 100 to
240 VAC		 8 Relays No ZEN-20C3AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-20C3DR-D-V2
Communi-
cations
type		 9 100 to
240 VAC		 6 100 to
240 VAC		 3 Relays No ZEN-10C4AR-A-V2
12 to
24 VDC		 12 to
24 VDC		 Yes ZEN-10C4DR-D-V2
ZEN Kit Set containing CPU Unit (ZEN-10C1AR-A-V2), Connecting Cable, ZEN Support Software, and manual. ZEN-KIT01-EV4
Set containing CPU Unit (ZEN-10C1DR-D-V2), Connecting Cable, ZEN Support Software, and manual. ZEN-KIT02-EV4
Expansion I/O
Units		 8 --- 100 to
240 VAC		 4 100 to
240 VAC		 4 Relays --- ZEN-8E1AR *2 *3
12 to
24 VDC		 12 to
24 VDC		 ZEN-8E1DR *2
--- Transistors ZEN-8E1DT *2
